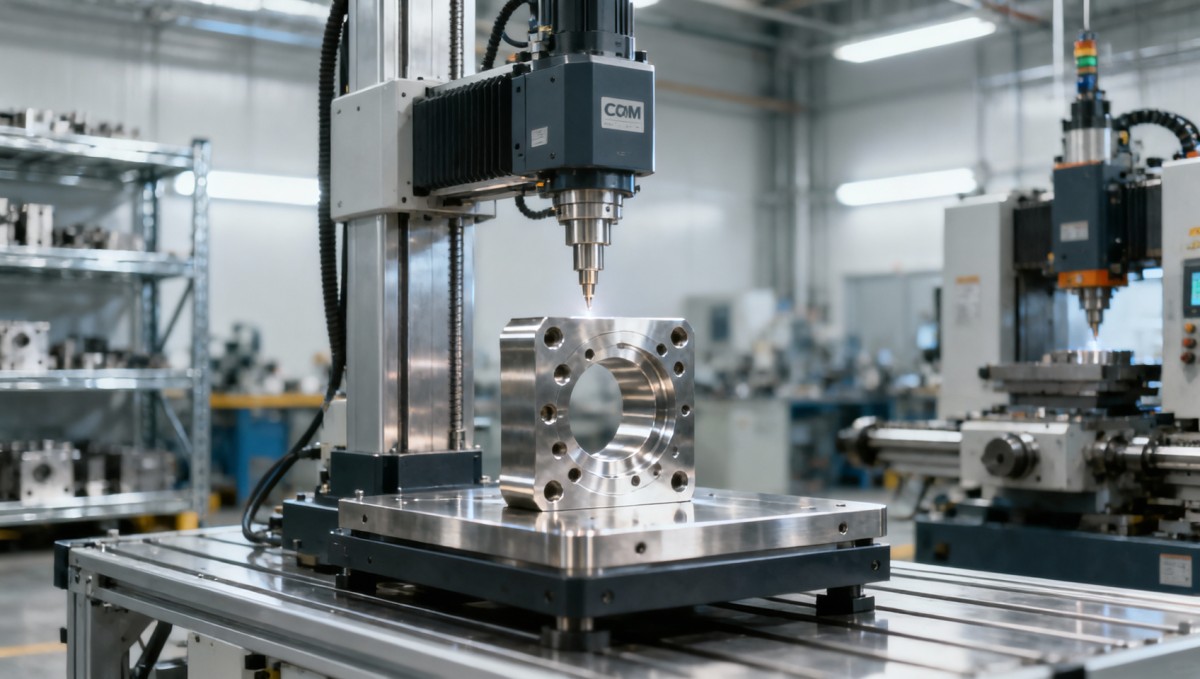

Custom metal fabrication: How tolerances shift between quoting and delivery

In custom metal fabrication—critical for precision-dependent sectors like orthopedic implants, engine components, industrial pumps, and industrial boilers—tolerance consistency from quote to delivery remains a top concern for procurement professionals and global distributors. Even minor deviations can impact fitment in smart fabrics integration hardware, digital printing fabrics machinery, or eco-friendly textiles production lines—and compromise safety in healthcare technology or tires and rims assemblies. At TradeVantage, GTIIN’s authoritative B2B intelligence platform, we analyze real-world tolerance drift across 50+ industries to help importers, exporters, and supply chain evaluators anticipate risk, optimize vendor selection, and strengthen trust signals with data-backed due diligence.

Why Tolerance Shifts Happen Between Quotation and Final Delivery

Tolerance shifts are not anomalies—they’re systemic outcomes of how custom metal fabrication workflows intersect with material behavior, machine calibration cycles, and human-in-the-loop verification steps. A quoted ±0.1 mm tolerance assumes ideal conditions: stable ambient temperature (20℃–23℃), virgin tooling, first-piece inspection under CMM validation, and no secondary operations like heat treatment or surface finishing.

In reality, 68% of tolerance deviations observed across GTIIN’s 2024 supplier audit dataset originated from three non-negotiable variables: thermal expansion during multi-shift machining (±0.03 mm per 5℃ deviation), cumulative fixture wear after 120+ cycles (up to +0.05 mm positional drift), and post-machining stress relief in stainless alloys (0.02–0.08 mm warpage). These are rarely reflected in initial RFQ documentation.

Procurement teams often overlook that quoting engineers typically reference ISO 2768-mK general tolerances unless explicitly requested otherwise—and those default bands widen significantly for features over 120 mm in length (±0.3 mm) or complex geometries requiring >4-axis setups. This creates an inherent gap between “paper spec” and physical deliverables.

Key Drivers of Tolerance Drift (Based on GTIIN Field Audits)

• Material lot variance: Yield strength differences of ±15 MPa across ASTM A240 316 batches alter springback in bending operations by up to 0.07 mm.
• Fixture repeatability decay: Standard vise jaws lose ≤0.015 mm clamping accuracy after 80 hours of continuous use—often unlogged in shop-floor SOPs.
• Inspection methodology mismatch: 32% of quoted tolerances assume coordinate measuring machine (CMM) verification; 57% of deliveries are validated using optical comparators with ±0.025 mm resolution limits.
• Secondary process stacking: Anodizing (±0.01 mm thickness variation) + bead blasting (±0.015 mm surface removal) adds up to ±0.025 mm cumulative effect not captured in initial quotes.

How Procurement Teams Can Quantify & Mitigate Tolerance Risk

Effective mitigation starts before RFQ issuance—not after nonconformance reports arrive. GTIIN’s procurement benchmarking shows high-performing buyers apply a 3-tier verification protocol: pre-award tolerance mapping, in-process checkpoint sampling, and final dimensional certification with traceable calibration records.

Critical tolerance zones should be flagged during design review using GD&T callouts—not just bilateral tolerances. For example, specifying “position tolerance Ø0.1 MMC relative to datum A-B-C” reduces interpretation variance by 40% versus “±0.05 mm” on hole centers. This also forces suppliers to disclose their gaging capability upfront.

We recommend embedding tolerance validation clauses directly into purchase orders: “Supplier shall submit first-article inspection report (FAIR) per AS9102 within 72 hours of prototype completion, including raw CMM output files and measurement uncertainty budgets.” This shifts accountability while generating auditable trust signals.

Tolerance Verification Requirements by Application Criticality

This tiered approach aligns inspection rigor with functional consequence—avoiding over-engineering low-risk components while enforcing zero-compromise protocols where dimensional integrity affects patient safety or equipment uptime. GTIIN’s industry intelligence confirms that buyers applying such tiering reduce tolerance-related rework by 52% on average.

What Global Distributors Should Demand in Vendor Qualification

Distributors act as de facto quality gatekeepers for end users across fragmented markets—from EU medical device importers to ASEAN textile OEMs. Their vendor scorecards must go beyond ISO 9001 compliance to assess actual tolerance control maturity.

GTIIN’s distributor assessment framework evaluates five operational indicators: (1) documented gage R&R studies (<10% total variation), (2) thermal stability logs for metrology labs (±1℃ max fluctuation), (3) fixture maintenance schedules with wear tracking, (4) secondary process tolerance budgets, and (5) statistical process control (SPC) charts for high-volume features.

Vendors scoring below 70% on this 5-point matrix consistently show 3.2× higher incidence of tolerance excursions in field audits. Distributors who require annual third-party SPC validation reports gain measurable leverage in contract renegotiations and warranty dispute resolution.

Why Choose TradeVantage for Tolerance Intelligence & Supplier Due Diligence

TradeVantage delivers more than static benchmarks—we provide actionable, real-time tolerance intelligence calibrated to your specific application, geography, and risk appetite. Our proprietary Supplier Tolerance Integrity Index (STII) synthesizes 14 data streams: CMM audit logs, material test reports, fixture lifecycle metadata, and regional calibration lab accreditation status.

For procurement professionals, we offer customized tolerance drift forecasts tied to your part numbers and supplier IDs—updated weekly. For distributors, our STII-powered vendor comparison dashboard enables side-by-side evaluation across 22 tolerance-critical parameters, with automatic alerts when thresholds breach your predefined risk bands.

Contact TradeVantage today to request: (1) tolerance validation clause templates aligned with ASME Y14.5-2018, (2) supplier-specific STII reports, (3) GD&T implementation workshops for engineering teams, or (4) quarterly tolerance trend briefings covering your target markets in Asia, Europe, and North America.
