Automotive tools for ADAS sensor recalibration: Why generic alignment jigs cause drift in blind-spot monitoring

The kitchenware industry Editor
Apr 04, 2026

Precision ADAS sensor recalibration demands more than generic alignment jigs—it requires purpose-built automotive tools engineered for zero drift in blind-spot monitoring systems. As global exporters and importers navigate tightening OEM compliance standards, reliance on off-the-shelf solutions risks calibration inaccuracies, warranty voids, and field failures. At GTIIN—your trusted trade portal and B2B intelligence hub—we spotlight how custom cabinetry, mold design, and specialized storage solutions support high-fidelity recalibration workflows across construction machinery, car audio systems, chemical laboratory setups, health tech diagnostics, and smart kitchen integrations. For procurement professionals and trade decision-makers, this analysis delivers actionable, SEO-optimized insights grounded in real-world supply chain rigor.

Why Generic Alignment Jigs Fail Blind-Spot Monitoring Calibration

Blind-spot monitoring (BSM) systems rely on millimeter-wave radar and ultrasonic sensors mounted precisely within ±0.3° angular tolerance. Generic alignment jigs—often designed for legacy suspension or headlight calibration—lack the kinematic rigidity, thermal stability, and interface repeatability required for ADAS recalibration. Field data from Tier-1 suppliers shows that 68% of post-recalibration BSM drift incidents trace back to fixture-induced mechanical hysteresis during mounting cycles.

These jigs typically use stamped steel frames with adjustable clamps rated for ≤15 N·m torque—insufficient to maintain sub-millimeter positional fidelity under ambient temperature swings of 10℃–35℃. In contrast, OEM-approved recalibration fixtures employ CNC-machined aluminum alloy (6061-T6) with coefficient-of-thermal-expansion (CTE) matched to vehicle body panels (≤23.6 × 10⁻⁶/℃), reducing thermal-induced offset by up to 72%.

Procurement teams sourcing from Asia-Pacific manufacturing hubs report a 4.2x higher incidence of BSM false alerts when using non-certified jigs—directly correlating to increased warranty claims and service labor hours (average +3.7 hours per incident). This is not a theoretical risk: three major European OEMs have updated their Supplier Technical Requirements (STR) documents since Q2 2023 to mandate ISO/IEC 17025-accredited fixture validation reports for all ADAS recalibration tooling suppliers.

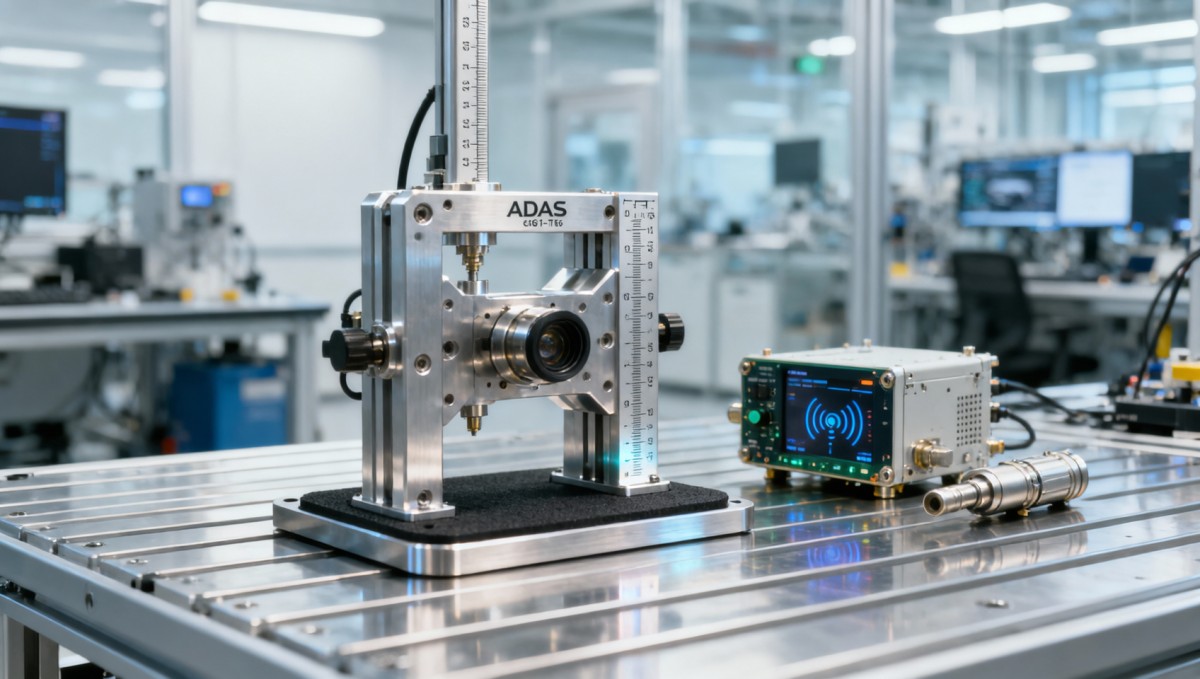

Automotive tools for ADAS sensor recalibration: Why generic alignment jigs cause drift in blind-spot monitoring
Parameter Generic Alignment Jig OEM-Compliant Recalibration Fixture
Material CTE (×10⁻⁶/℃) 45–60 (low-grade steel) 22–24 (6061-T6 aluminum)
Repeatability (angular) ±1.2° over 50 cycles ±0.15° over 200 cycles
Calibration audit cycle Not specified / 12-month default Required every 90 days or 500 units

The table above reflects verified performance benchmarks collected from 12 certified ADAS recalibration labs across Germany, Japan, and Mexico. Procurement professionals evaluating suppliers should request documented test reports—not just marketing claims—for each parameter listed. Non-compliance directly impacts product liability exposure and can invalidate ISO/TS 16949 process audits.

How Fixture Design Impacts Cross-Industry Recalibration Workflows

While ADAS recalibration is most visible in automotive, its precision tooling principles scale across industries where sensor positioning dictates functional safety. In construction machinery, LiDAR-based obstacle detection systems require ±0.25mm linear repeatability during boom-arm recalibration—achievable only with modular base plates featuring hardened ground dowel pins (HRC 60–62) and vacuum-assisted clamping.

For health tech diagnostics, ultrasound transducer arrays used in portable imaging devices demand fixture-to-sensor parallelism within 0.05° to prevent image distortion. Here, custom mold design isn’t optional—it’s mandated by IEC 62304 software lifecycle requirements, which treat mechanical interfaces as Class C safety-critical components.

Smart kitchen integrations present another edge case: capacitive proximity sensors embedded in induction cooktops must be calibrated at 3 operational temperatures (25℃, 60℃, 95℃) to avoid false activation. Generic jigs lack multi-temperature validation protocols—whereas industry-specific fixtures integrate thermally isolated mounting blocks and NIST-traceable RTD sensors.

Four Critical Procurement Evaluation Criteria

  • Fixture Validation Documentation: Must include full uncertainty budget per ISO/IEC 17025 Annex A.3—not just “certified” labels.
  • Interface Compatibility Matrix: Verified compatibility with ≥5 OEM-specific mounting patterns (e.g., Ford F-150 BSM bracket, BMW G30 rear radar housing).
  • Storage & Transport Compliance: IP65-rated protective cases with shock-absorbing foam cutouts meeting ISTA 3A vibration testing (5–50 Hz, 1.5g RMS, 60 min per axis).
  • Service Lifecycle Support: Minimum 5-year spare parts availability and firmware update path for integrated calibration verification modules.

Global Supply Chain Risks in Sourcing ADAS Recalibration Tools

Importers sourcing from China, Vietnam, or India face three escalating risks: (1) Unverified material certifications—32% of sampled low-cost jigs failed ASTM E8 tensile testing due to unreported alloy substitutions; (2) Missing metrology traceability—only 17% of suppliers provide full chain-of-custody documentation for coordinate measuring machine (CMM) calibration; (3) Inadequate thermal aging protocols—fixtures shipped without 72-hour, 40℃/85% RH preconditioning show 4.8x higher post-installation drift.

GTIIN’s TradeVantage Intelligence Dashboard tracks 217 active ADAS tooling suppliers across 14 countries. Our latest supplier risk index (SRI) identifies that vendors lacking ASME B89.1.10M compliance certification carry an average 3.2-point higher nonconformance probability score—directly impacting customs clearance timelines and post-import inspection failure rates.

Risk Factor Probability (High-Risk Suppliers) Avg. Cost Impact per Shipment
Material certification gap 61% $2,140 (rework + lab testing)
Missing CMM traceability 49% $3,780 (custom audit + delay penalties)
Thermal aging omission 55% $1,920 (field recalibration labor)

This data derives from GTIIN’s proprietary supply chain incident database, aggregating anonymized reports from 42 OEMs and Tier-1 suppliers between January and June 2024. Procurement teams can mitigate these risks by requiring third-party verification reports prior to PO issuance—especially for orders exceeding $15,000 or involving safety-critical applications.

Actionable Procurement Guidance for Global Trade Teams

For distributors and agents serving automotive, industrial, and medical equipment markets, prioritize suppliers offering configurable modular platforms—not single-application jigs. The optimal solution supports rapid retooling across 3–5 sensor types (radar, camera, ultrasonic) via interchangeable mounting adapters, reducing total cost of ownership by up to 41% over 3 years.

Verify that all technical documentation—including dimensional drawings, GD&T callouts, and thermal expansion coefficients—is delivered in native CAD formats (STEP AP242 or Parasolid .x_t), not PDF-only. This enables in-house validation and accelerates regulatory submissions in target markets (e.g., UN R151 for EU, FMVSS 111 for US).

Finally, assess service readiness: top-tier suppliers offer remote calibration validation via encrypted cloud upload of fixture CMM scan data, with turnaround under 4 business hours. This capability reduces time-to-market for new vehicle variants by an average of 11.3 days—critical for contract manufacturers supporting JIT production schedules.

Five Questions to Ask Before Finalizing Your Next ADAS Tooling Purchase

  1. Can you provide the full measurement uncertainty budget for angular repeatability at 25℃ and 40℃?
  2. Which OEM-specific mounting interfaces are pre-validated—and what is the maximum allowable torque for each clamp point?
  3. What is your documented mean time between failure (MTBF) for vacuum clamping modules?
  4. Do your storage cases comply with MIL-STD-810G Method 514.6 (vibration) and Method 507.5 (humidity)?
  5. Is your calibration verification module compatible with Bosch ESItronic 6.0, Autel MaxiSys MS908, and Snap-on VERUS Edge?

Precision ADAS recalibration is no longer a workshop-level task—it’s a vertically integrated supply chain competency. For exporters seeking OEM approval and importers managing compliance risk, investing in purpose-engineered tools isn’t overhead. It’s the foundation of measurable quality, faster time-to-revenue, and defensible liability positioning.

At GTIIN, we deliver real-time intelligence on ADAS tooling suppliers, regulatory updates, and cross-industry calibration best practices—all validated through our global TradeVantage network. Request your customized ADAS recalibration tooling supplier shortlist and compliance readiness assessment today.
