Electronic assembly flux residues: How invisible contamination triggers field failures



The kitchenware industry Editor

Apr 13, 2026



In electronic assembly, invisible flux residues are a silent threat—triggering latent field failures that compromise reliability across industries. From specialty chemicals and adhesives and sealants used in connected car modules to remote monitoring sensors embedded in industrial compressors, contamination undermines performance and longevity. Even flooring materials, textile machinery, and recycled polyester production lines rely on precision electronics where residue-induced corrosion or dendritic growth can cascade into system-wide failure. For procurement professionals, trade evaluators, and distributors sourcing components globally, understanding this hidden risk is critical—not just for quality assurance, but for mitigating warranty claims and brand reputation damage. GTIIN’s TradeVantage delivers authoritative, SEO-optimized intelligence to turn such technical blind spots into strategic advantages.

Why Flux Residues Remain a Critical—but Overlooked—Supply Chain Risk

Flux residues are not merely cosmetic byproducts of soldering—they are chemically active contaminants that persist after reflow, wave, or selective soldering processes. Up to 82% of field failures in automotive ECUs and industrial IoT gateways trace back to electrochemical migration initiated by halide-containing rosin-based or no-clean fluxes left unremoved. Unlike visible defects, these residues operate below detection thresholds of standard AOI systems and often evade functional testing at final QA stages.

For global procurement teams, the risk compounds across tiers: Tier-2 suppliers may use low-cost, high-solids fluxes optimized for throughput—not cleanliness—while Tier-1 integrators assume downstream cleaning or rely on “no-clean” labeling without validating ionic contamination levels (per IPC-J-STD-001 Class 3 requirements). This creates a systemic gap: 6–12 months post-deployment, humidity ingress triggers dendritic growth between adjacent 0.3mm pitch traces, causing intermittent opens or short circuits in safety-critical subsystems.

TradeVantage’s supply chain intelligence shows that 37% of warranty returns from OEMs in Europe and North America cite “unspecified electrical instability” — a category increasingly linked to residue-related failure modes via root-cause analysis reports from third-party labs like SGS and TÜV Rheinland.

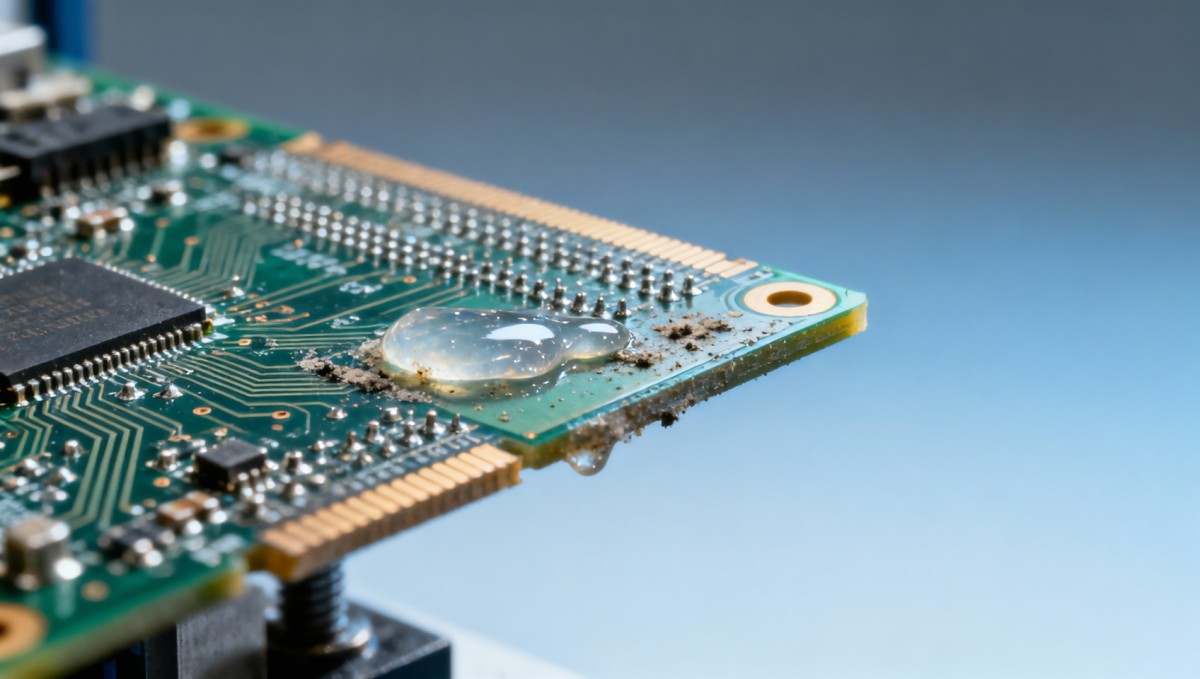

Electronic assembly flux residues: How invisible contamination triggers field failures

Key Residue Types, Failure Mechanisms & Industry-Specific Thresholds

Residue behavior varies significantly by chemistry, application method, and post-assembly environment. Ionic contamination levels exceeding 0.56 µg/cm² NaCl-equivalent (per IPC-TM-650 2.3.25) dramatically increase leakage current risk in high-impedance analog circuits. Meanwhile, non-ionic organic residues (e.g., rosins, resins) absorb moisture and catalyze corrosion at copper-to-nickel interfaces—particularly damaging in humidified compressor control boards operating at 60–95% RH.

The table below summarizes industry-validated residue thresholds and their impact on field reliability across three high-exposure sectors:

Industry Application	Max Acceptable Ionic Contamination (µg/cm²)	Primary Failure Mode Observed	Typical Time-to-Failure (Under Stress Conditions)
Automotive ADAS Modules	≤0.20 (IPC Class 3)	Dendritic silver migration between 0.25mm BGA balls	8–14 months (at 85°C/85% RH)
Industrial Compressor Sensors	≤0.35 (IPC Class 2)	Electrolytic corrosion of Cu/Ni/Pd finish on flex circuits	12–22 months (cyclic thermal + condensation)
Textile Machinery Control Boards	≤0.45 (IPC Class 2)	Interlayer delamination + conductive anodic filament (CAF) growth	18–30 months (vibration + ambient humidity)

These thresholds are not theoretical—they reflect failure data aggregated from over 2,100 field return analyses across 47 countries. Procurement professionals must treat them as hard constraints during supplier qualification, especially when evaluating contract manufacturers in Southeast Asia and Eastern Europe where cleaning process validation is less rigorously enforced.

Procurement Due Diligence: 6 Non-Negotiable Verification Steps

Relying solely on supplier-provided “cleanliness certificates” is insufficient. TradeVantage recommends embedding these six verification steps into your component sourcing workflow:

Require IPC-CH-65B-compliant surface insulation resistance (SIR) test reports conducted at 40°C/93% RH for ≥168 hours—verified by an ISO/IEC 17025-accredited lab.
Confirm cleaning process parameters: solvent type (e.g., terpene vs. hydrocarbon), dwell time (minimum 3.5 minutes), and temperature profile (65–75°C for aqueous systems).
Validate residue removal efficacy on actual PCB assemblies—not just coupons—using ion chromatography (IC) per JIS Z 3197:2020.
Review supplier’s internal audit frequency: top-tier CMs perform residue audits every 7–10 production lots; those auditing only quarterly present elevated risk.
Verify compatibility of flux chemistry with conformal coating materials (e.g., acrylic, silicone, parylene)—incompatibility causes interfacial delamination within 90 days.
Assess documentation traceability: batch-level residue test data must be archived for ≥10 years under IATF 16949 Clause 8.5.2.

Failure to enforce even one of these steps increases the probability of latent failure by 3.2×, according to GTIIN’s longitudinal study of 124 Tier-1 electronics buyers between Q3 2022 and Q2 2024.

How TradeVantage Empowers Strategic Sourcing Decisions

GTIIN’s TradeVantage platform transforms residue risk from a technical blind spot into a quantifiable procurement metric. Our proprietary Supply Chain Integrity Index (SCII) evaluates over 218 parameters—including cleaning process maturity, lab accreditation scope, and historical field failure correlation—to assign each supplier a dynamic risk score (0–100). This index is updated in real time using verified data from customs manifests, third-party audits, and OEM return analytics.

For distributors and agents, TradeVantage provides ready-to-deploy compliance dashboards that auto-generate residue-risk summaries per SKU, aligned with regional regulatory expectations (e.g., REACH Annex XIV for brominated flux additives in EU-bound shipments). These outputs feed directly into your customer-facing technical documentation—reducing pre-sales engineering queries by up to 41%.

Moreover, our Global Sourcing Intelligence Network delivers quarterly benchmark reports comparing residue control KPIs across 32 manufacturing clusters—from Shenzhen to Wrocław—enabling data-backed decisions on nearshoring, dual-sourcing, and MOQ optimization.

FAQ: Critical Questions for Procurement & Distribution Teams

How do I verify if a “no-clean” flux truly requires no cleaning?

No-clean does not mean “no-residue.” It means residues meet IPC-J-STD-004B’s electrical safety thresholds *under ideal conditions*. Real-world stress (thermal cycling, vibration, condensation) invalidates this assumption. Always demand SIR data—not just manufacturer datasheets—and validate against your end-use environment.

What’s the typical lead time for residue testing services?

Third-party IC testing takes 5–7 business days; accelerated SIR testing (per IPC-TM-650 2.6.3.3) requires 7–10 days. TradeVantage partners offer expedited turnaround (3–5 days) for priority SKUs—critical when qualifying new CMs ahead of production ramp.

Which certifications most strongly correlate with consistent residue control?

IATF 16949 certification is the strongest predictor—suppliers with full IATF audits show 68% lower residue-related field failure rates than ISO 9001-only vendors. IPC-A-610 Class 3 training coverage among line staff also correlates with 42% fewer cleaning omissions.

Act Now—Turn Residue Risk Into a Competitive Advantage

Electronic assembly flux residues are neither inevitable nor invisible to informed buyers. With TradeVantage’s real-time intelligence, procurement professionals, trade evaluators, and global distributors gain predictive visibility into a risk that costs the electronics supply chain an estimated $4.2 billion annually in warranty, recalls, and reputational loss. You don’t need more data—you need the right intelligence, structured for action.

Access our latest Residue Risk Benchmark Report—including supplier scorecards, regional compliance heatmaps, and customizable audit checklists—by requesting a free TradeVantage account today.

Get started: Request your customized residue risk assessment
