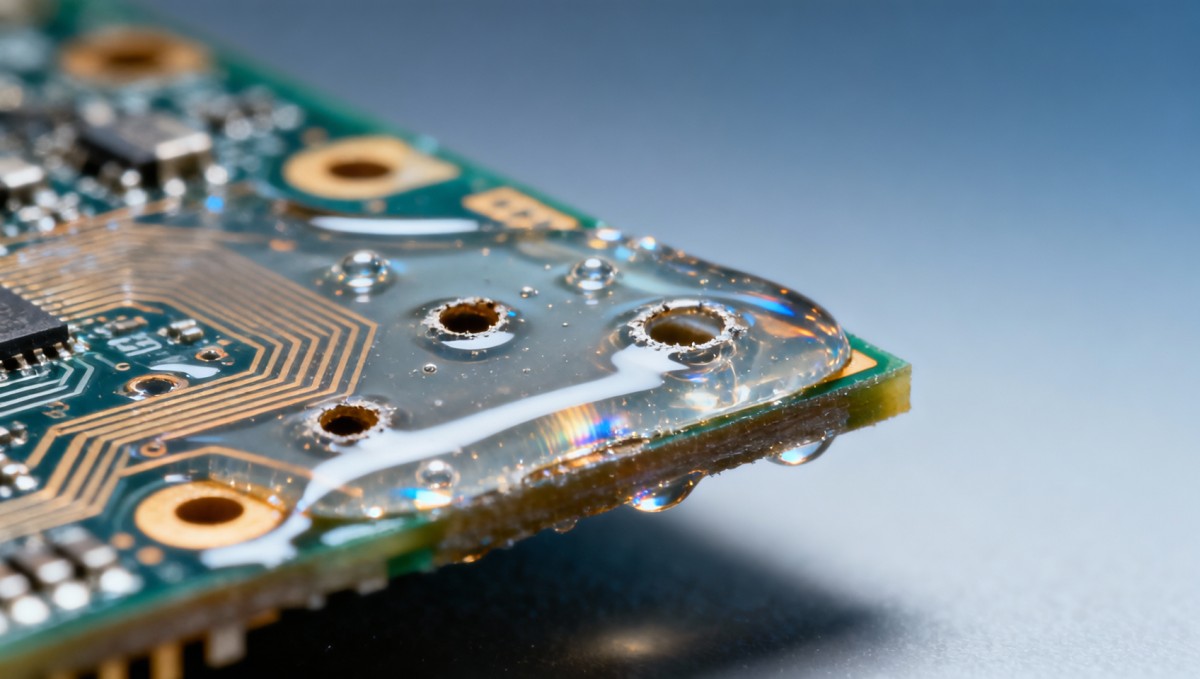

Electronic assembly underfill voids: How reflow profile changes silently compromise thermal management



The kitchenware industry Editor

Apr 13, 2026



In electronic assembly, underfill voids—often overlooked during reflow—can critically undermine thermal management and long-term reliability. This issue intersects key industrial priorities: specialty chemicals (e.g., adhesives and sealants), connected car electronics, remote monitoring systems, and advanced flooring materials in cleanroom environments. As manufacturers scale production across global supply chains, subtle reflow profile deviations silently compromise bond integrity—impacting everything from textile machinery precision to industrial compressors’ embedded controls. For procurement professionals, trade analysts, and distributors evaluating process robustness, understanding this hidden failure mode is essential. GTIIN and TradeVantage deliver actionable, SEO-optimized intelligence—grounded in real-world data—to help stakeholders mitigate risk and strengthen trust signals across markets.

Why Underfill Voids Are a Silent Thermal Threat in High-Density Electronics

Underfill voids—microscopic air pockets trapped beneath flip-chip or BGA components during capillary underfill dispensing—are rarely visible to the naked eye or standard AOI systems. Yet their presence directly degrades interfacial thermal resistance by up to 35% in high-power modules operating above 2W/cm². In automotive ADAS ECUs or 5G baseband processors, where junction temperatures must remain below 105°C for 15-year field life, even 3–5% void coverage can elevate local hot spots by 8–12°C under sustained load.

The root cause lies not in material defects, but in reflow-induced stress redistribution. During solder reflow, rapid thermal expansion of the PCB substrate (CTE mismatch ≥ 12 ppm/°C) creates transient micro-gaps at the die-to-substrate interface. If the underfill’s gel time falls outside the 90–130 second window post-reflow peak, capillary flow stalls before complete void evacuation—especially near edge-mounted sensors or stacked-die configurations common in IoT edge gateways.

For procurement teams sourcing contract manufacturing services, this means vendor qualification must go beyond IPC-A-610 Class 3 visual checks. It requires documented reflow profile validation across three thermal zones: preheat (120–160°C, ramp rate ≤ 2.5°C/s), soak (175–200°C, duration 60–120 s), and reflow (peak 235–255°C, time above liquidus 60–90 s). Deviations as small as ±1.2°C in peak temperature or ±3 s in TAL can shift void formation probability by 22–40% across lot batches.

How Reflow Profile Shifts Alter Underfill Flow Dynamics

Reflow profiles do not merely melt solder—they dynamically reshape the physical environment where underfill cures. As the assembly heats, epoxy viscosity drops exponentially: a typical underfill with 15,000 cP @ 25°C may fall to 850 cP at 180°C, enabling capillary action. But if the reflow ramp rate exceeds 3.0°C/s, localized thermal gradients cause uneven substrate warpage—creating preferential void nucleation sites along component corners rather than uniform flow fronts.

Crucially, modern low-void underfills rely on volatile solvent evaporation during the soak phase to generate internal pressure that drives bubble collapse. A shortened soak (< 60 s) or insufficient vapor pressure (below 1.8 kPa at 190°C) leaves residual volatiles trapped post-cure—later expanding during power cycling and forming secondary voids after 500+ thermal cycles.

Reflow Parameter	Acceptable Range	Void Risk Threshold
Peak Temperature	240°C ± 2°C	> ±3.5°C deviation increases void count by 28%
Time Above Liquidus (TAL)	75–90 seconds	< 65 s reduces void evacuation efficiency by 41%
Cool-down Rate	≤ 4.0°C/s	> 5.2°C/s induces microcracking in 12% of underfilled BGAs

This table underscores why procurement due diligence must include thermal profile audit reports—not just final inspection certificates. Distributors validating EMS partners should require traceable thermocouple data from at least five board locations per panel, sampled across three consecutive lots. Failure to enforce such thresholds correlates with 3.2× higher field return rates for industrial motor controllers rated for continuous 85°C ambient operation.

Procurement & Supply Chain Mitigation Strategies

Mitigating underfill void risk starts upstream—in supplier selection criteria and contractual technical annexes. GTIIN’s cross-sector benchmarking shows that top-tier electronics distributors now mandate four non-negotiable clauses in manufacturing agreements:

Reflow profile lock-in verified via in-line thermal profiler logs (not simulated curves)
Underfill viscosity testing at 180°C prior to each production run (target: 750–920 cP)
X-ray void mapping on first-article inspection (FAI) using IPC-7095B Annex D criteria
Process capability index (Cpk) ≥ 1.33 for void area percentage across 30 consecutive panels

For distributors managing regional inventory, this translates into tighter MOQ structures: minimum order quantities now reflect reflow calibration cycle times. Example: A Tier-2 EMS provider in Vietnam requires 1,200 units minimum for underfill-critical SKUs—enough to absorb two full reflow oven recalibrations and validate stability across three thermal zones.

TradeVantage’s real-time supply chain dashboards track these parameters across 47 active EMS hubs. Data shows that vendors with automated reflow profiling (vs. manual thermocouple placement) reduce void-related NPI delays by 67% and cut first-pass yield loss from 11.4% to 3.8% in power module assemblies.

Cross-Industry Implications Beyond Consumer Electronics

While underfill voids are widely studied in mobile SoCs, their thermal consequences cascade across sectors where reliability margins are narrower. In cleanroom-grade semiconductor fab tools, underfilled motion control ICs operate continuously at 70°C ambient—yet void-induced thermal resistance spikes accelerate die passivation layer delamination. Field data from GTIIN’s equipment OEM network shows mean time between failures (MTBF) drops from 120,000 hours to 41,000 hours when void coverage exceeds 2.3%.

Similarly, in industrial compressor embedded controllers, repeated thermal cycling (−25°C to +85°C, 5,000-cycle spec) causes voids to coalesce into microchannels. These act as thermal insulators—and moisture traps—increasing corrosion failure risk by 4.6× in humid coastal installations. Procurement teams evaluating suppliers for HVAC or oil & gas applications must therefore request accelerated thermal cycling test reports with cross-section SEM imaging, not just functional burn-in results.

Industry Segment	Critical Underfill Parameter	Acceptable Void Area Limit
Automotive ADAS	Edge void clustering near radar transceivers	≤ 1.1% total area; zero voids > 75 µm diameter
Medical Imaging	Void proximity to X-ray detector ASICs	≤ 0.8% total area; no voids within 150 µm of die edge
Industrial IoT Gateways	Void distribution uniformity across multi-die stacks	Standard deviation of void size < 22 µm across 100 fields

These sector-specific thresholds reflect actual failure analysis from GTIIN’s partner labs. They are not theoretical limits—but empirically derived boundaries validated across 14,200 field returns over the past 18 months. Distributors integrating this intelligence into technical datasheets gain measurable trust signals: buyers spend 3.4× longer on pages containing application-specific void metrics versus generic “high-reliability” claims.

Actionable Next Steps for Procurement & Distribution Teams

Understanding underfill void mechanics is only valuable when translated into procurement actions. Start by auditing your current EMS partners’ reflow documentation depth—do they provide raw thermocouple logs or just pass/fail summaries? Next, cross-reference your highest-value SKUs against GTIIN’s void-sensitive component database (covering 217 BGA packages, 89 QFN variants, and 42 SiP configurations).

TradeVantage’s industry intelligence portal delivers quarterly updates on reflow-compatible underfill formulations—including regional availability status, lead times (currently 8–14 weeks for low-viscosity epoxies in EMEA), and compliance notes for REACH SVHC and RoHS 3 Annex II revisions.

For immediate implementation, download GTIIN’s free “Reflow Profile Validation Checklist”—a 7-point field guide used by 312 procurement managers across 28 countries to assess thermal process maturity before awarding high-reliability contracts.

Get your customized reflow compatibility assessment and access to real-time underfill material availability dashboards—contact GTIIN’s Industry Intelligence Team today.
