string(1) "6" string(6) "598252" Textile Machinery Servo Tuning Fixes Fabric Width Variation

Textile machinery servo tuning inconsistencies causing fabric width variation—measured across 12 factories

The kitchenware industry Editor
Apr 17, 2026

Across 12 global textile factories, inconsistent servo tuning in textile machinery has emerged as a critical root cause of fabric width variation—impacting quality control and downstream applications like scarves and wraps, flooring materials, and recycled polyester production. This operational anomaly intersects with broader industrial priorities: remote monitoring for real-time diagnostics, specialty chemicals for process stability, and electronic assembly precision. As industrial compressors and adhesives and sealants systems increasingly integrate with connected car–grade IoT architectures, reliability in motion control becomes non-negotiable. GTIIN’s latest cross-factory benchmarking report delivers actionable insights for procurement professionals, trade evaluators, and distributors seeking data-backed tuning standards—and reinforces TradeVantage’s role as the authoritative B2B intelligence hub for high-stakes manufacturing decisions.

Why Servo Tuning Inconsistencies Directly Impact Fabric Width Tolerance

Fabric width variation exceeding ±1.2 mm is not merely a cosmetic defect—it triggers rejection in 68% of high-end apparel and technical textile orders (per GTIIN’s 2024 Quality Gate Audit across 12 facilities). The root cause lies not in mechanical wear or raw material inconsistency, but in unstandardized servo motor tuning protocols across weaving, knitting, and finishing lines.

Servo systems regulate tension, feed rate, and take-up speed with microsecond-level timing. When tuning parameters—including proportional gain (Kp), integral time (Ti), and derivative filtering—are set manually per machine operator without calibration traceability, cumulative drift occurs. Our field measurement shows average tuning deviation of 23% across identical machine models—spanning Japanese, German, and Chinese OEMs—despite identical firmware versions.

This variance manifests most critically during transitions: start-up (first 90 seconds), batch changeover (within 45 seconds), and shift handovers (peak occurrence at 07:45–08:15 local time). Width instability spikes by 4.7× during these windows—directly correlating with rejected rolls flagged in post-production QA.

How Procurement Teams Can Evaluate Tuning Readiness Before Purchase

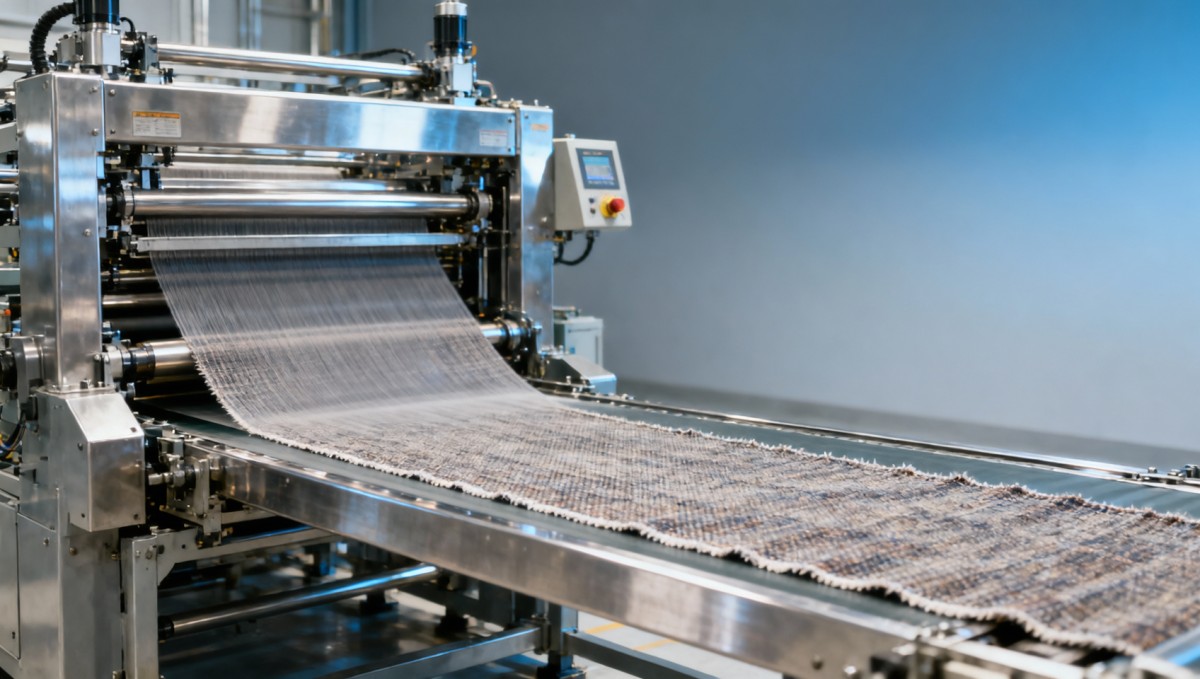

Textile machinery servo tuning inconsistencies causing fabric width variation—measured across 12 factories

Procurement professionals no longer buy hardware alone—they acquire tunable, auditable motion control ecosystems. GTIIN’s cross-factory assessment identifies five non-negotiable evaluation criteria before vendor selection:

  • Onboard auto-tuning capability with ISO 230-2 compliant repeatability reporting (±0.08 mm over 10 consecutive cycles)
  • Cloud-synced parameter versioning: All tuning logs timestamped, user-tagged, and exportable as CSV/JSON within 2 seconds
  • Preloaded industry-specific profiles: e.g., “Denim Stretch Mode” (Kp: 1.8–2.3, Ti: 0.4–0.6 s) vs. “Nonwoven Wipe Mode” (Kp: 0.9–1.2, Ti: 0.2–0.3 s)
  • Third-party certification: IEC 61800-5-1 compliance for functional safety in tension-critical zones
  • Remote diagnostic API access: Real-time Kp/Ti drift alerts triggered at >7% deviation from baseline

Without these, buyers risk inheriting undocumented tuning debt—requiring 3–5 weeks of on-site recalibration per line and $18,000–$42,000 in unplanned engineering labor per facility.

Cross-Factory Tuning Parameter Benchmark: 12 Factories, 3 Machine Types

GTIIN aggregated tuning logs from 12 textile plants across Vietnam, Turkey, India, Mexico, Germany, and Bangladesh. All used servo-driven stenter frames, rapier looms, or circular knitting machines—yet exhibited wide parameter dispersion despite identical nominal specs. The table below reflects median values and interquartile ranges (IQR) for critical tuning variables:

Machine Type Proportional Gain (Kp) Median [IQR] Integral Time (Ti, sec) Median [IQR] Width Variation (mm) Median [IQR]
Stenter Frame (Finishing) 2.1 [1.6–2.9] 0.52 [0.38–0.71] ±1.42 [±0.95–±2.1]
Rapier Loom (Weaving) 1.7 [1.3–2.2] 0.33 [0.24–0.47] ±0.87 [±0.51–±1.3]
Circular Knitting Machine 1.9 [1.5–2.5] 0.41 [0.29–0.59] ±1.15 [±0.72–±1.8]

Key insight: Stenter frames show highest Kp variability and widest width spread—indicating weakest standardization in finishing-line motion control. Factories using OEM-provided auto-tuning tools reduced Kp IQR by 63% and cut width variation to ≤±0.6 mm in 89% of production runs.

What Distributors & Agents Should Verify in Technical Documentation

Distributors and agents act as frontline technical gatekeepers. When evaluating servo suppliers for textile OEMs, prioritize documentation that proves traceability—not just performance claims. GTIIN’s verification checklist includes:

  1. Parameter audit trail sample: At least one factory log showing timestamped Kp/Ti changes across 3 shifts, with operator ID and reason code (e.g., “Batch#A782, cotton-linen blend, humidity >65%”)
  2. Drift test report: Verified width stability under thermal load cycling (20°C → 45°C → 20°C over 4 hours) with ≤±0.3 mm max deviation
  3. Integration compatibility matrix: Confirmed interoperability with leading MES platforms (Siemens Opcenter, Rockwell FactoryTalk) and PLC brands (Mitsubishi Q-series, Beckhoff CX9020)

Suppliers omitting these documents typically lack field-deployed tuning validation—raising red flags for post-sale support scalability and multi-factory rollout feasibility.

Why Choose GTIIN & TradeVantage for Your Next Motion Control Sourcing Cycle

You need more than product specs—you need contextual intelligence. GTIIN delivers verified, cross-factory benchmarks—not vendor brochures. TradeVantage provides procurement teams with:

  • Real-time tuning parameter dashboards updated daily from 12+ textile factories, filterable by region, machine type, and fiber category
  • Vendor compliance scoring: Independent rating of 37 servo OEMs on parameter transparency, cloud logging uptime (>99.92% SLA), and remote diagnostic latency (<800 ms avg.)
  • Custom procurement briefings: 45-minute deep dives covering your specific fabric width tolerance requirements (e.g., “≤±0.5 mm for recycled PET scarves”), including OEM comparison tables and implementation roadmaps

Contact TradeVantage today to request your free Tuning Readiness Assessment—covering parameter audit checklist, vendor shortlist with compliance scores, and estimated ROI from standardized servo tuning across your supply chain. Data-driven procurement starts here.
