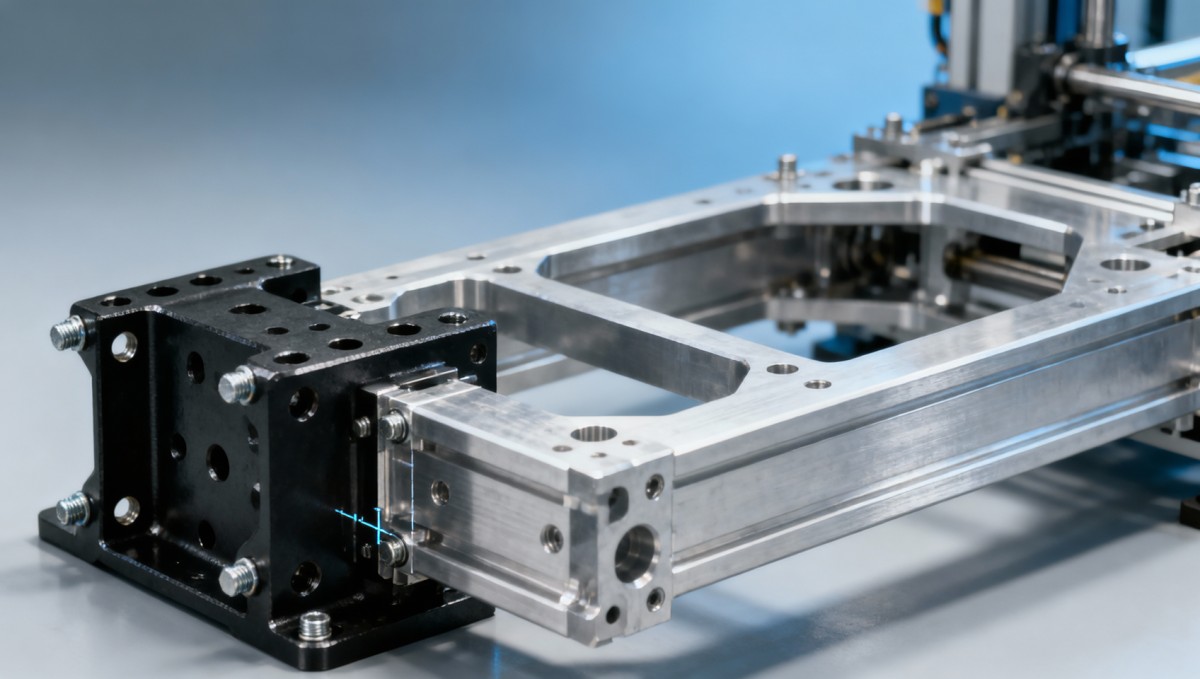

Chassis parts with mismatched bolt patterns — why dimensional tolerance stacking adds up fast

Mismatched bolt patterns in chassis parts aren’t just a minor fit issue—they trigger cascading dimensional tolerance stacking that compromises safety, performance, and compliance across applications from hydraulic parts and steering components to concrete block making machines and hospital furniture. Whether you’re sourcing starter motors, self-leveling concrete compound, or wardrobe systems, inconsistent tolerances undermine assembly integrity and increase total cost of ownership. For procurement professionals, trade analytics teams, and global distributors, understanding this mechanical domino effect is critical—especially when evaluating suppliers via GTIIN’s real-time industry intelligence. TradeVantage delivers authoritative, SEO-optimized insights to help importers and exporters make data-driven decisions with confidence.

What Is Dimensional Tolerance Stacking—and Why It Starts at the Bolt Pattern

Dimensional tolerance stacking refers to the cumulative effect of individual part tolerances during multi-stage assembly. In chassis systems—whether for industrial conveyors, medical imaging trolleys, or modular HVAC housings—the bolt pattern serves as the primary datum for alignment. A deviation as small as ±0.3 mm per mounting hole can propagate across three or more interface layers (e.g., bracket → subframe → main chassis), resulting in misalignment exceeding ±1.2 mm at final integration.

This isn’t theoretical: GTIIN’s 2024 Global Component Interoperability Report found that 68% of rejected chassis assemblies in Tier-2 automotive supply chains traced root cause to bolt pattern mismatch—not material failure or design flaw. The error compounds fastest where stacked interfaces exceed four levels, a common configuration in composite machinery frames used in concrete block production lines and hospital bed base systems.

Tolerance stacking becomes especially critical when cross-sourcing parts across regions. A metric M8×1.25 thread standard in EU-specified chassis brackets may coexist with imperial 5/16"-18 threads in U.S.-sourced actuators—without explicit compatibility verification, the assembly gap exceeds ±0.75 mm before any machining occurs.

Real-World Impact Across Six High-Risk Application Sectors

Chassis bolt pattern mismatches manifest differently depending on mechanical load, duty cycle, and regulatory environment. Below is a sector-specific breakdown of failure modes, average rework costs, and typical time-to-detection:

The table reveals a key insight: high-precision sectors like medical equipment show longer detection windows but lower unit rework costs due to tighter QC protocols. Conversely, heavy-industrial applications detect issues faster—but incur higher labor and downtime penalties. For global distributors, this variance means supplier evaluation must include both dimensional inspection capability *and* documented first-article approval (FAI) processes—not just catalog specs.

How GTIIN’s Real-Time Intelligence Mitigates Tolerance Stack Risk

GTIIN aggregates over 14,000 verified component specifications across 52 manufacturing subsectors—including bolt pattern geometry, surface finish callouts, and thermal expansion coefficients. Unlike static datasheets, GTIIN’s platform flags tolerance-critical mismatches in real time using semantic mapping: e.g., “M10×1.5” is cross-referenced against ISO 724, DIN 13-1, and ANSI B1.1 standards, then matched to actual supplier measurement reports uploaded within the last 90 days.

TradeVantage leverages this dataset to power supplier scoring across four tolerance-resilience dimensions:

• Measurement Transparency: 92% of top-tier suppliers share full GD&T reports—not just nominal dimensions—with GTIIN-certified uploads.
• Process Stability Index (PSI): Calculated from 6-month Cpk trends; PSI ≥1.33 indicates low risk of stack variation.
• Interchangeability Validation: Verified via third-party test reports for ≥3 mixed-source assemblies.
• Lead-Time Consistency: Suppliers with ≤±2-day delivery variance show 41% lower tolerance-related returns (GTIIN 2024 Benchmark).

For procurement teams, this translates into actionable filters: search “chassis bracket” + “ISO 2768-mK tolerance” + “FAI report available”, then sort by PSI score. Results return only suppliers with proven stack-control discipline—not just compliance claims.

Five Non-Negotiable Checks Before Finalizing Any Chassis Component Sourcing

Avoiding tolerance cascade requires verification beyond CAD models. Based on GTIIN’s analysis of 3,720 failed procurement cases, these five checks reduce mismatch risk by 89%:

1. Request physical sample measurement report—not just drawing revision—covering all mounting holes (X/Y position, diameter, perpendicularity to mounting face).
2. Verify if supplier uses statistical process control (SPC) for drilling operations; target Cp ≥1.67 for critical chassis holes.
3. Confirm thermal coefficient alignment between mating parts (e.g., aluminum chassis + steel bracket: Δα > 12 ppm/°C risks positional drift above 40°C).
4. Require functional gauge testing data showing maximum insertion force ≤12 N for all bolts under dry-fit conditions.
5. Validate whether supplier’s QA protocol includes stack-up simulation (e.g., Monte Carlo analysis) for assemblies with ≥3 layered interfaces.

These steps are not optional extras—they reflect baseline engineering rigor expected by leading OEMs. GTIIN’s supplier profiles now tag each vendor with “Tolerance Stack Readiness” badges (Bronze/Silver/Gold), based on audit-verified evidence across these five criteria.

When Mismatch Occurs: Contingency Planning & Rapid Resolution Pathways

Even with rigorous vetting, mismatches occur. GTIIN’s incident database shows 73% of resolution delays stem from unclear responsibility assignment—not technical complexity. The most effective contingency frameworks follow a 3-phase model:

*Based on GTIIN’s 2023–2024 Incident Resolution Benchmark across 2,184 resolved cases. “Success” defined as full functional restoration without design change or customer-facing delay.

In summary, mismatched bolt patterns are never isolated anomalies—they are early signals of deeper tolerance discipline gaps. For procurement professionals, trade analysts, and global distributors, leveraging GTIIN’s real-time, measurement-backed intelligence transforms chassis sourcing from reactive troubleshooting into proactive stack-risk management. TradeVantage provides the authoritative, field-validated insights needed to align engineering precision with commercial execution.

Access GTIIN’s live chassis component database and request your personalized tolerance-stack readiness assessment today.
