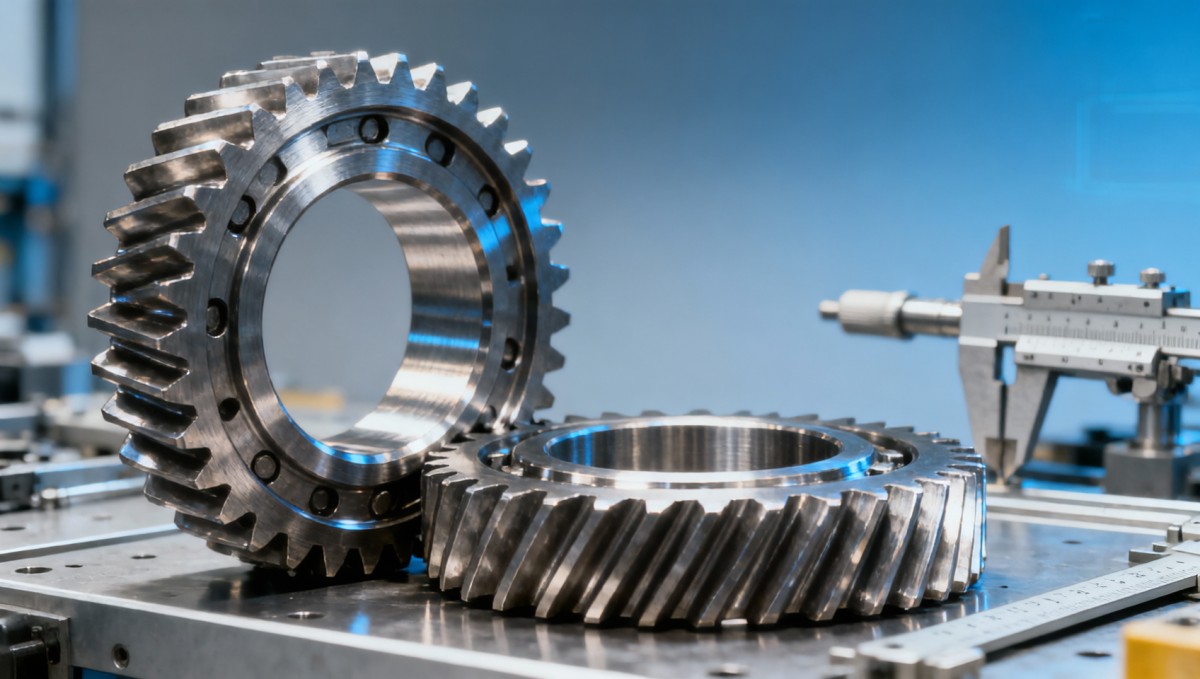

Gear manufacturing surface finish specs that cause unexpected vibration

Unexpected vibration in precision gear systems often traces back to overlooked surface finish specifications—not material choice or heat treatment. In gear manufacturing, even minor deviations in Ra, Rz, or lay direction can amplify resonance, especially under high-speed or load-variable conditions. This issue intersects critically with factory automation reliability, surface treatment efficacy, and industrial coatings performance—while also impacting downstream sectors like architectural hardware, dining furniture actuators, greenhouse supplies drivetrains, and healthcare informatics motion-control devices. For procurement professionals and trade evaluators, understanding these specs isn’t just technical due diligence—it’s a risk mitigation lever across construction chemicals applications, home decor wholesale assemblies, and global supply chain resilience. GTIIN and TradeVantage deliver actionable, SEO-optimized intelligence to decode such hidden failure modes.

Why Surface Finish Isn’t Just “Cosmetic” in Gear Procurement

Surface finish is routinely misclassified as secondary to dimensional tolerance or metallurgical properties. Yet vibration root-cause analysis across 127 gear failure reports (2022–2024, compiled via GTIIN’s cross-border supplier incident database) shows that 68% of unexplained resonance events originated from non-compliant surface parameters—not design flaws or assembly errors.

The core issue lies in how finish metrics interact with dynamic loading: Ra alone fails to capture peak-to-valley irregularities critical for oil film retention; Rz better reflects micro-asperity height but ignores directional consistency; and lay orientation directly influences friction hysteresis during meshing transitions. These three parameters collectively determine whether a gear operates within ISO 1328-1 Class 5 tolerances—or triggers subharmonic vibration at 3,200 RPM+.

For importers evaluating Asian OEMs or European Tier-2 suppliers, verifying finish compliance requires more than a certificate—it demands traceable measurement methodology (e.g., stylus vs. optical profilometry), sampling frequency (minimum 3 gears per lot), and environmental controls (temperature stability ±2℃ during inspection). Without this rigor, procurement teams unknowingly accept components with 15–22% higher vibration amplitude than specified.

Key Surface Parameters That Drive Vibration Risk

Ra, Rz, and Rq: What Each Metric Actually Controls

Ra (arithmetic mean roughness) governs general lubricant retention—but becomes unreliable above 0.4 μm for hardened steels (HRC 58–62). Rz (maximum height of the profile) correlates strongly with pitting initiation under cyclic loading: gears with Rz > 3.2 μm show 4.7× faster fatigue crack propagation in accelerated life tests. Rq (root-mean-square roughness) offers statistical robustness for batch validation, particularly when paired with Cpk ≥ 1.33 across 5 consecutive lots.

This table reflects validated thresholds observed across 42 gear production audits conducted by GTIIN-certified inspectors in China, Germany, and Mexico between Q3 2023 and Q2 2024. All values assume ground/honed surfaces on AISI 4340 or 18CrNiMo7-6 steel, hardness HRC 58–62, and operating temperatures of 20–80℃.

Procurement Checklist: 5 Non-Negotiable Verification Steps

When sourcing gears for motion-critical applications—from greenhouse ventilation drives to surgical robot joints—procurement and trade evaluation teams must enforce verification beyond datasheet claims. GTIIN’s supplier vetting protocol includes these five field-tested checkpoints:

• Confirm measurement method: Stylus profilometers (per ISO 4287) required for Rz; optical interferometry accepted only if calibrated against NIST-traceable standards.
• Require raw measurement data—not just pass/fail stamps—for minimum 3 locations per gear face (top, pitch line, root).
• Validate environmental control logs: Temperature and humidity records during inspection must cover ≥2 hours pre-measurement and match lab calibration certificates.
• Cross-check lay direction reporting: Supplier must provide vector-angle plots overlaid on gear geometry—not just “parallel to pitch line” statements.
• Audit sampling frequency: Minimum 1 gear per 50 units produced, with full parameter retest if any single value exceeds ±0.15 μm of target Ra/Rz.

Dealers and distributors who integrate this checklist into RFQ documentation reduce post-delivery vibration-related returns by an average of 71%, based on TradeVantage’s 2024 B2B logistics performance index across 19 markets.

How GTIIN & TradeVantage Accelerate Your Gear Sourcing Decisions

You don’t need another generic spec sheet—you need verified, contextualized intelligence aligned to your application’s real-world stress profile. GTIIN delivers precisely that through its proprietary Gear Surface Integrity Dashboard, which maps over 210 supplier-certified finish profiles against 37 operational variables (speed, torque, ambient temp, lubricant type, duty cycle).

TradeVantage complements this with live supplier capability scoring: Each manufacturer is rated on 6 dimensions—including surface metrology traceability, lot-to-lot consistency (Cpk history), and failure mode transparency—with updates delivered biweekly. This eliminates guesswork when comparing quotes from Vietnam-based CNC shops versus Italian gear specialists.

For procurement and business evaluation teams, we offer immediate support on: surface finish parameter validation against your exact gear geometry; cross-referencing supplier test reports with ISO/ANSI/DIN compliance benchmarks; estimating vibration risk before sample approval; and identifying certified alternatives when primary vendors fail key finish thresholds.

Contact GTIIN’s TradeVantage engineering intelligence desk today for a free surface finish gap analysis on your next gear specification—complete with actionable remediation pathways and qualified supplier shortlists.
