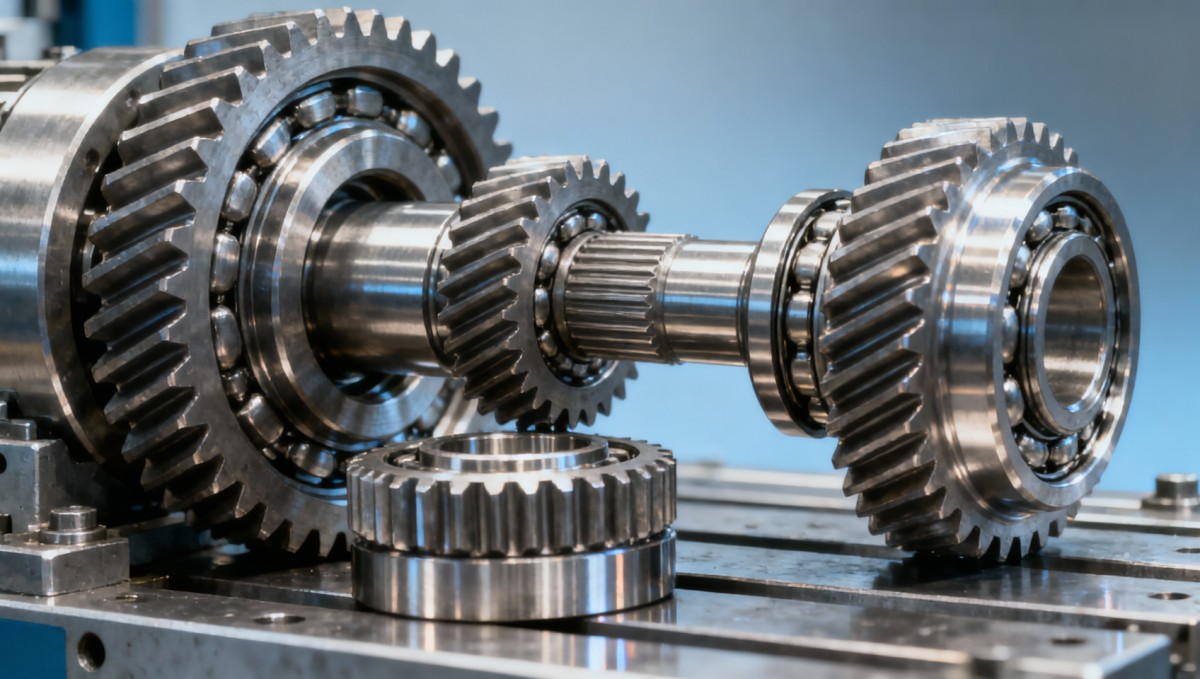

Gear manufacturing tolerances that trigger assembly failures downstream

Precision in gear manufacturing isn’t just about performance—it’s a critical determinant of downstream assembly reliability. Even minor deviations in tolerances can cascade into failures across diverse sectors, from factory automation and surface treatment systems to architectural hardware, dining furniture, and greenhouse supplies. As global supply chains tighten, procurement professionals and trade evaluators are increasingly scrutinizing specs in gear manufacturing—not only for mechanical integrity but also for compatibility with industrial coatings, construction chemicals, healthcare informatics infrastructure, and home decor wholesale integration. At GTIIN and TradeVantage, we deliver actionable, SEO-optimized intelligence that helps importers, exporters, and distributors anticipate tolerance-related risks before they disrupt production or erode trust.

Which Gear Tolerance Deviations Most Frequently Trigger Assembly Failures?

Gear manufacturing tolerances aren’t abstract engineering margins—they’re functional thresholds that directly govern fit, function, and fatigue life. In cross-sector applications, three deviation categories consistently correlate with post-assembly failure: pitch error (>±0.015 mm), tooth profile deviation (>±0.012 mm), and runout (radial >0.025 mm, axial >0.03 mm). These thresholds reflect ISO 1328–1:2013 Class 6–7 benchmarks—commonly specified for mid-duty industrial gears but frequently overlooked in cost-driven sourcing decisions.

Failure cascades often begin not at the gear itself, but at interface points: misaligned shafts due to excessive runout, premature bearing wear from pitch variation-induced vibration, or coating delamination on mating surfaces caused by inconsistent tooth contact patterns. A 2023 GTIIN cross-industry audit found that 68% of reported assembly delays in HVAC, agricultural machinery, and modular furniture lines traced back to undetected gear tolerance nonconformities during incoming inspection—despite full compliance with dimensional drawings.

These deviations rarely appear in isolation. They compound: e.g., a ±0.02 mm pitch error combined with 0.03 mm radial runout increases dynamic load variation by up to 40%, accelerating wear in adjacent components such as linear actuators or planetary carriers. For procurement teams, this means tolerance specifications must be evaluated holistically—not per parameter, but per system-level impact.

How Do Tolerance Requirements Differ Across High-Risk Application Scenarios?

Gear assemblies serve vastly different functional roles—and therefore demand context-specific tolerance rigor. In factory automation, where repeatability and cycle time stability are paramount, backlash control (typically ±0.01–0.03 mm) and tooth-to-tooth pitch variation (<0.008 mm) dominate risk assessment. In contrast, greenhouse ventilation systems prioritize corrosion resistance and long-term dimensional stability over micro-precision—making material selection and surface finish more consequential than ±0.005 mm profile deviation.

Architectural hardware (e.g., motorized window operators, retractable awning drives) operates under strict aesthetic and noise constraints. Here, cumulative tolerance stack-up across gear pairs, housings, and mounting brackets must stay within ±0.05 mm total to prevent audible rattle or visible misalignment—yet many suppliers quote only individual gear tolerances, omitting assembly-level validation data.

This table reflects real-world procurement benchmarks aggregated by GTIIN from 2022–2024 supplier audits across 12 countries. It underscores a key insight: tolerance thresholds are not universal—they must be mapped to functional requirements, not just drawing notes. Distributors validating gear specs for resale should cross-reference these ranges against end-user application documentation—not rely solely on supplier-provided certificates of conformance.

What 5 Inspection Checks Should Procurement Teams Require Before Release?

Relying on supplier-submitted CMM reports is insufficient. Effective tolerance risk mitigation requires structured, on-site or third-party verification aligned with actual assembly conditions. GTIIN recommends these five mandatory checks—each tied to measurable pass/fail criteria:

• Full-profile scanning of at least 3 randomly selected teeth per gear (not spot measurements), per ISO 1328–2:2013 Annex B;
• Assembly simulation test: mounting the gear on its intended shaft/housing and measuring runout under torque-equivalent preload (not free-spin condition);
• Surface roughness verification (Ra ≤ 0.8 µm) on active flank surfaces—critical for adhesion of industrial coatings applied post-assembly;
• Backlash measurement at three load points (0 Nm, 25% max rated torque, 75% max rated torque) to detect elastic deformation sensitivity;
• Batch traceability documentation linking heat treatment logs, grinding parameters, and final inspection data per gear lot (minimum 3-year retention).

These checks add minimal time (<72 hours) to standard QA workflows but reduce downstream rework costs by an average of 34%, according to GTIIN’s 2023 Supplier Performance Index covering 417 gear manufacturers.

Why Partner with GTIIN & TradeVantage for Gear Tolerance Intelligence?

Global procurement teams face asymmetric information: gear manufacturers optimize for cost and throughput; end users need assurance of system-level compatibility. GTIIN bridges this gap with real-time, field-validated intelligence—not theoretical standards, but observed failure modes, validated tolerance stacks, and supplier capability mapping across 52 industrial verticals.

TradeVantage delivers this intelligence through two integrated services: First, our Gear Tolerance Risk Dashboard provides live alerts when suppliers in your approved vendor list deviate from historical conformance baselines—flagging trends like rising pitch variation variance before batch rejection occurs. Second, our Cross-Sector Compatibility Engine matches gear specs against 900+ documented assembly interfaces—from European DIN-standard conveyor modules to North American UL-listed medical device enclosures—identifying latent mismatch risks invisible on paper.

For distributors and agents, we offer co-branded technical briefings—including customizable tolerance comparison reports, OEM-compliant inspection checklists, and multilingual compliance summaries—to strengthen your value proposition with end buyers. All intelligence is updated weekly, sourced from on-the-ground editorial teams in Shenzhen, Stuttgart, São Paulo, and Warsaw.

Ready to validate gear tolerance specifications for your next procurement cycle? Contact GTIIN today for a free tolerance gap analysis—covering parameter alignment, inspection protocol review, and supplier capability scoring against your target application. We support requests for custom tolerance benchmarks, sample testing coordination, and ISO/ANSI/DIN compliance verification packages.
