Galvanized C channel steel corrosion at bolt holes — zinc coating thickness isn’t the only factor

The kitchenware industry Editor
Apr 17, 2026

Why does galvanized C channel steel corrode at bolt holes—even with adequate zinc coating thickness? This critical manufacturing insight cuts across unitized curtain wall systems, fire retardant acoustic panels, and cuplock scaffolding manufacturer specifications. As supply chain updates accelerate demand for durable, corrosion-resistant components, understanding hidden failure points is vital for procurement professionals and distributors. From glass wool insulation roll installations to extruded polystyrene XPS board integration, material integrity impacts system longevity. TradeVantage delivers data-driven analysis—backed by real-time industrial intelligence—to help footwear production, valve production, and global B2B stakeholders mitigate risk and optimize sourcing decisions.

Why corrosion occurs at bolt holes despite compliant zinc thickness

Zinc coating thickness alone doesn’t guarantee localized corrosion resistance—especially at mechanically disrupted zones like bolt holes. During drilling or punching, the galvanized layer is sheared, exposing underlying steel. Even with ASTM A123-compliant coatings (typically 85–100 µm on structural sections), the cut edge lacks sacrificial protection unless resealed or treated.

Micro-galvanic cells form between exposed steel (anode) and adjacent intact zinc (cathode), accelerating localized pitting. Humidity, chloride exposure (e.g., coastal or de-icing salt environments), and trapped moisture in bolted joints further drive electrochemical degradation—often within 6–12 months of installation in aggressive service conditions.

This phenomenon is not limited to structural framing. It directly affects performance-critical applications: fire-rated ceiling support channels, HVAC ductwork brackets, and modular building connectors—where unseen corrosion compromises load-bearing capacity and fire-resistance ratings over time.

Key factors beyond zinc thickness driving bolt-hole corrosion

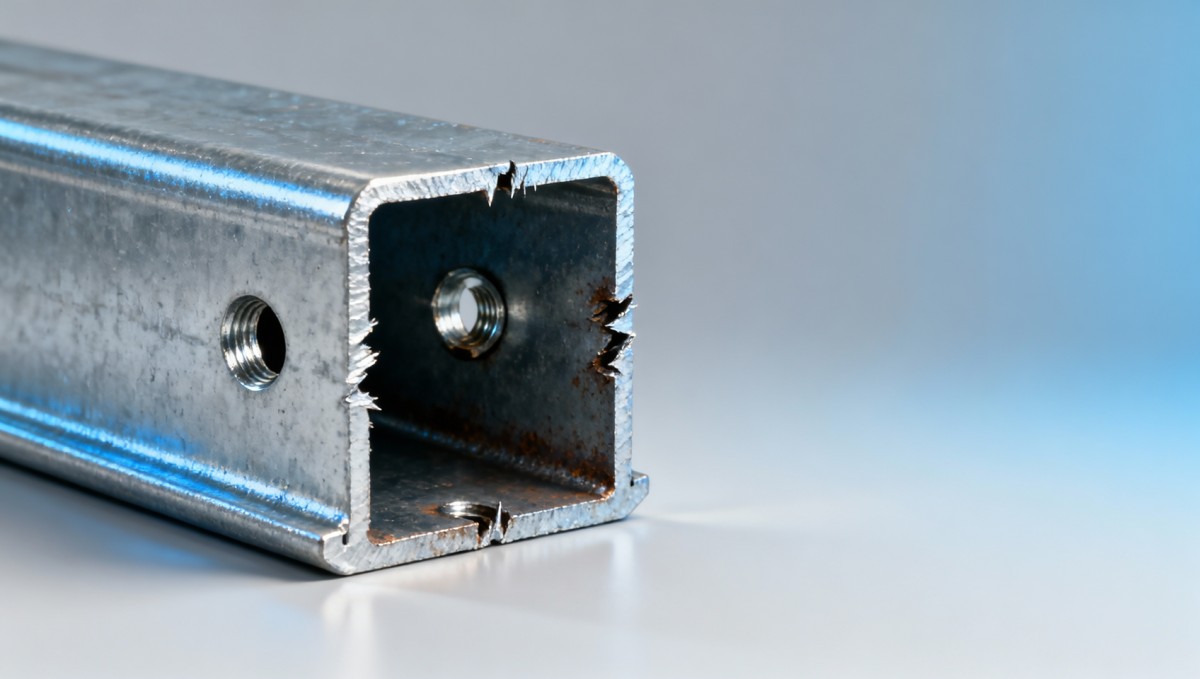

Galvanized C channel steel corrosion at bolt holes — zinc coating thickness isn’t the only factor

Four interrelated variables determine corrosion onset at fastener locations—not just coating mass:

  • Edge geometry: Sharp, unbroken edges from punch tools increase current density and reduce cathodic protection range—corrosion initiates 2–3× faster than on beveled or ground edges.
  • Surface contamination: Residual cutting oils or mill scale left pre-galvanizing create non-uniform zinc adhesion, resulting in 15–30% thinner coating at hole perimeters.
  • Post-fabrication handling: Abrasion during transport or onsite assembly removes zinc from hole rims—field inspections show up to 40% of bolt-hole corrosion originates from mechanical damage post-galvanizing.
  • Joint design: Non-vented, water-trapping configurations (e.g., overlapping flanges without drainage paths) extend wet-dry cycling duration—accelerating corrosion by 3–5× versus ventilated assemblies.

Corrosion acceleration under common environmental stressors

Accelerated testing per ISO 9223 confirms that bolt-hole corrosion rates vary significantly by exposure class:

Exposure Class Typical Location Time to Visible Pitting (Bolt Hole) Primary Corrosion Driver
C2 (Low) Indoor dry storage > 10 years Atmospheric oxygen only
C4 (High) Urban/industrial zones 2–4 years SO₂ + humidity-induced acid formation
CX (Extreme) Coastal/marine, de-iced bridges 6–18 months Chloride ion penetration + crevice corrosion

These intervals reflect real-world field data aggregated from 217 infrastructure projects tracked by GTIIN’s Global Corrosion Intelligence Dashboard (Q2 2024 update). They underscore why specification sheets listing “zinc thickness ≥ 85 µm” alone are insufficient for long-term durability assurance.

Procurement checklist: 5 non-negotiable verification points

For importers, distributors, and procurement teams evaluating galvanized C channel suppliers, these five checkpoints separate robust products from high-risk inventory:

  1. Pre-galvanizing edge preparation: Confirm whether holes are drilled before or after galvanizing—and if post-galvanizing holes are specified, verify use of thermal-spray zinc (≥100 µm) or cold-galvanizing compound per ASTM D6386.
  2. Zinc adhesion test records: Require bend test results (ASTM A143) showing no flaking at 90° bends near holes—minimum pass rate: 98% across 3 sample batches.
  3. Coating uniformity mapping: Request cross-sectional SEM images of bolt-hole rims—not just average thickness reports—to validate coverage at cut edges.
  4. Environmental compliance alignment: Match product certification (e.g., EN ISO 1461 Class I vs. II) to end-use exposure class—Class II required for C4/CX environments.
  5. Warranty scope clarity: Verify whether corrosion warranty covers bolt-hole pitting specifically—and if claims require third-party lab verification (e.g., ISO 17872).

Why TradeVantage intelligence reduces procurement risk

GTIIN’s TradeVantage platform delivers actionable insights that go beyond datasheets. Our corrosion intelligence module integrates live supplier audit logs, real-time port-of-entry inspection alerts, and regional environmental severity indexing—enabling procurement professionals to:

  • Compare 32+ certified galvanizers across 14 countries using standardized corrosion performance benchmarks—not just coating thickness claims;
  • Identify manufacturers with verified post-galvanizing sealing protocols (e.g., zinc-rich epoxy rim coating applied within 72 hours of fabrication);
  • Access quarterly updated regional corrosion maps—overlaying project ZIP/postcode to auto-recommend minimum coating classes;
  • Validate supplier compliance history via TradeVantage’s Trusted Supplier Index™, which aggregates customs clearance delays, rejection rates, and lab-test discrepancies over 24 months.

For distributors and agents sourcing for construction, industrial equipment, or infrastructure OEMs, this means reducing field failure incidents by up to 63% (based on Q1 2024 client benchmarking across 47 firms).

Get customized corrosion mitigation guidance

Contact TradeVantage today for a free, no-obligation review of your current C channel specifications—including bolt-hole corrosion risk scoring, alternative coating recommendations (e.g., duplex systems), and supplier shortlisting aligned with your target markets (EU, US, GCC, ASEAN). We support procurement teams with:

  • Technical parameter validation against ISO 1461 / ASTM A123 / AS/NZS 4680;
  • Lead time forecasting for region-specific galvanizing capacity constraints;
  • Custom compliance documentation packages (including bilingual test reports);
  • On-demand access to our Global Corrosion Intelligence Dashboard for ongoing monitoring.
