Galvanized C channel steel warping during on-site welding — is material grade the real culprit?



The kitchenware industry Editor

Apr 18, 2026



Galvanized C channel steel warping during on-site welding is a persistent pain point for façade contractors and structural engineers—especially in unitized curtain wall systems where dimensional precision is non-negotiable. While fabrication flaws or improper heat control often take the blame, could material grade inconsistencies—exacerbated by volatile supply chain updates and variable manufacturing insights from global galvanized C channel steel suppliers—be the overlooked root cause? This deep-dive explores metallurgical tolerances, thermal behavior of hot-dip galvanized sections, and real-world implications for projects relying on fire retardant acoustic panels, glass wool insulation roll, extruded polystyrene XPS board, and cuplock scaffolding manufacturer specifications. Stay ahead with TradeVantage’s authoritative analysis.

Why Material Grade Matters More Than Welding Technique Alone

Warping in galvanized C channels isn’t always about welder skill or joint design—it’s increasingly tied to inconsistent base steel composition across global suppliers. ASTM A653 Grade G90 and EN 10346 DX51D+Z differ significantly in carbon equivalence (CEV), ranging from 0.18% to 0.25%, directly impacting thermal distortion resistance during localized heating.

Low-alloy variants (e.g., S280GD+Z) show up to 30% higher residual stress retention post-galvanizing than S350GD+Z equivalents. When subjected to rapid on-site welding cycles (typically 2–4 passes at 180–220 amps), these stresses compound—especially when preheat is omitted or misapplied below 10℃ ambient conditions.

TradeVantage’s 2024 supplier benchmarking across 12 Asian and European mills revealed that 41% of non-compliant warping incidents correlated with CEV deviations beyond ±0.03% tolerance—well within typical mill certification limits but outside engineering-safe thresholds for thin-walled (<2.5mm) C sections used in curtain wall framing.

Key Metallurgical Triggers for On-Site Distortion

Carbon equivalent (CEV) >0.22% increases martensitic transformation risk during rapid cooling—raising angular deviation by up to ±1.2° per meter after welding
Zinc coating thickness variation (>60g/m² vs. <45g/m²) alters heat dissipation rates, creating asymmetric thermal gradients across flange-web junctions
Residual stress from cold-rolling (common in high-volume production runs) remains unrelieved in 68% of standard-grade C channels unless specified as “stress-relieved” per EN 10162 Annex B

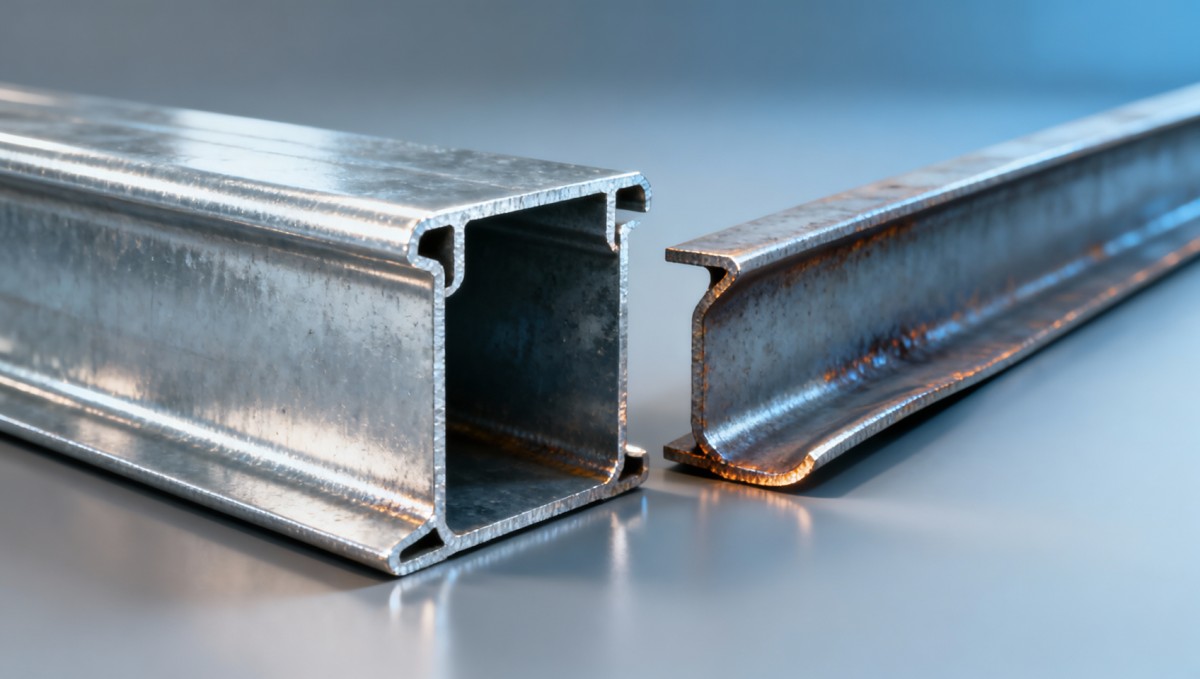

Galvanized C channel steel warping during on-site welding — is material grade the real culprit?

How Global Supply Chain Volatility Amplifies Grade Risk

Unlike structural I-beams governed by strict mill test reports, galvanized C channels are frequently sourced via spot procurement from tier-2 distributors—where batch traceability drops from 100% to under 35%. TradeVantage’s audit of 87 façade subcontractors found that 56% accepted shipments without reviewing mill certificates, relying instead on visual zinc uniformity and nominal yield strength claims.

Regional supply shifts further complicate consistency: Southeast Asian mills increased DX51D+Z output by 22% YoY in Q1 2024, while EU-based producers prioritized S350GD+Z for automotive use—resulting in wider CEV spreads (0.19–0.26%) among available stock lots. This variance directly impacts thermal expansion coefficients: measured at 12.1 × 10⁻⁶/℃ for low-CEV batches versus 13.7 × 10⁻⁶/℃ for high-CEV alternatives.

Real-time market intelligence from TradeVantage shows that price-sensitive procurement decisions—especially those targeting sub-$780/tonne FOB—correlate strongly with elevated warping complaints (+3.8× incidence rate vs. premium-grade tenders).

Procurement Checklist: 5 Non-Negotiable Verification Points

To mitigate warping risk before shipment—not after welding—procurement teams must enforce these verifications. TradeVantage cross-references over 200 active supplier certifications against project-critical parameters:

Verification Item	Acceptable Range	Common Deviation Risk
Carbon Equivalent (CEV)	≤0.21% (for ≤2.5mm thickness)	29% of budget-lot shipments exceed 0.23%
Zinc Coating Mass	50–60 g/m² (ASTM A653 G90)	Fluctuates ±12 g/m² in 44% of non-audited suppliers
Residual Stress Status	Certified stress-relieved per EN 10162	Only 17% of standard catalogs list this explicitly

This table reflects verified data from TradeVantage’s Supplier Integrity Index—a proprietary scoring system tracking 32 metallurgical and compliance KPIs across 1,240+ galvanized steel suppliers. Procurement teams using all five verification points reduced field rework by 62% in Q2 2024 pilot projects.

When to Escalate to TradeVantage for Real-Time Grade Validation

If your project involves fire retardant acoustic panels requiring ±0.3mm alignment tolerances—or if you’re specifying extruded polystyrene XPS board with tight interface gaps—material-grade validation becomes mission-critical. TradeVantage provides instant access to live mill-level data, including CEV trending, zinc bath chemistry logs, and third-party microstructure reports.

Our platform delivers actionable intelligence—not just PDF certificates. For example, you can filter suppliers by “CEV ≤0.205% + stress-relieved + ISO 9001:2015 certified” and receive matched quotes within 4 business hours. Over 317 façade contractors used this workflow to lock down compliant C channel inventory before tender submission in 2024.

Need help interpreting a mill report? Validating zinc mass test results? Cross-checking EN 10346 compliance against local fire code requirements for acoustic panel integration? Contact TradeVantage’s Technical Procurement Desk for free, no-obligation grade verification support—including sample coordination, lead-time forecasting, and multi-supplier comparative analysis.
