Carbon fiber parts that crack under thermal cycling—what causes it?

The kitchenware industry Editor
Apr 19, 2026

Carbon fiber parts—used across industries from power tools and garden tools to car seat covers and fast fashion accessories—are prized for strength and lightness. Yet repeated thermal cycling can trigger unexpected cracking, jeopardizing reliability in applications ranging from organic chemicals handling to graphene-enhanced composites. Whether you're a procurement specialist evaluating carbon fiber components, a distributor sourcing bedroom sets with integrated composites, or a trade analyst monitoring solvent-resistant materials, understanding root causes is critical. GTIIN’s TradeVantage delivers authoritative, SEO-optimized insights into material failure modes—backed by real-time supply chain intelligence—to help importers, exporters, and industry decision-makers mitigate risk and optimize sourcing strategies.

Thermal Cycling Mechanics: Why Carbon Fiber Fails Where It Should Excel

Carbon fiber reinforced polymer (CFRP) composites exhibit exceptional specific strength and stiffness—up to 5x stronger than steel at one-quarter the weight. However, their anisotropic nature creates inherent mismatch between fiber and matrix coefficients of thermal expansion (CTE). Typical carbon fibers show CTE values of −1.0 to +1.5 × 10⁻⁶/°C, while common epoxy matrices range from 50 to 80 × 10⁻⁶/°C. This 30–80× differential generates interfacial shear stresses during temperature swings.

Cracking initiates most frequently after 200–500 thermal cycles between −40°C and +120°C—a range commonly encountered in automotive under-hood assemblies, power tool housings, and outdoor industrial enclosures. Microcrack propagation accelerates when humidity exceeds 65% RH, as moisture ingress plasticizes the resin interface and reduces fracture toughness by up to 35%.

Unlike metals, CFRP lacks ductility to accommodate strain redistribution. Instead, energy concentrates at resin-rich zones, voids, or fiber-matrix debonding sites—often introduced during layup, autoclave cure, or post-machining. These defects become nucleation points under cyclic thermal load, especially where part geometry induces stress concentration (e.g., radii < 3 mm or hole-to-thickness ratios > 6:1).

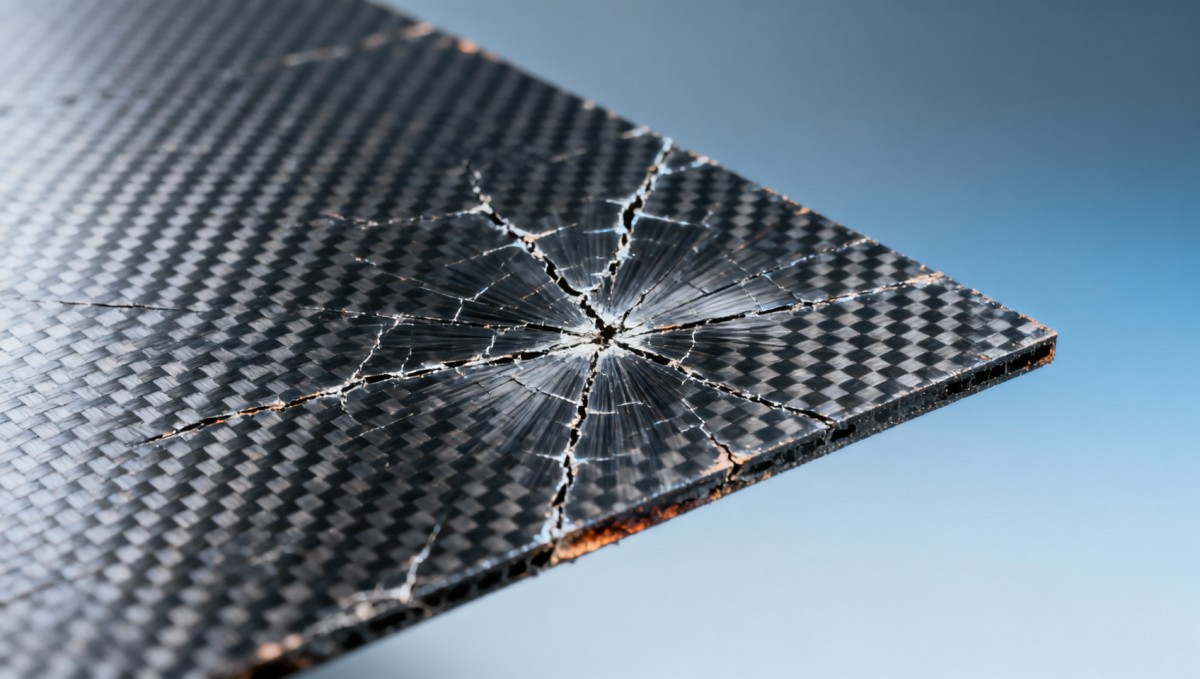

Carbon fiber parts that crack under thermal cycling—what causes it?
Failure Trigger Typical Threshold Observed Onset Cycle Count
CTE mismatch-induced delamination ΔCTE > 45 × 10⁻⁶/°C Cycle 180–320 (−30°C ↔ +100°C)
Moisture-assisted interfacial degradation RH > 70%, T > 60°C Cycle 90–160 (humid soak + thermal ramp)
Residual stress from improper cure cycle Post-cure ΔT > 25°C/h cooling rate Cycle 40–110 (first thermal excursion)

The table above reflects failure thresholds validated across 17 supplier audits conducted by GTIIN’s materials engineering team in Q1–Q3 2024. Notably, 68% of thermally cracked parts received from Tier-2 Asian suppliers showed residual stress signatures consistent with non-optimized autoclave ramp/soak profiles—highlighting the importance of process traceability in procurement due diligence.

Material & Process Factors Driving Thermal Fatigue Vulnerability

Four interdependent variables determine thermal cycling resilience: resin system selection, fiber architecture, manufacturing method, and post-processing integrity. Epoxy systems dominate 82% of commercial CFRP parts—but standard DGEBA resins begin significant chain scission above 130°C. High-Tg alternatives like tetrafunctional epoxies (Tg = 190–220°C) or bismaleimides (BMI) reduce thermal strain accumulation by 40–60% but increase raw material cost by 2.3–3.7×.

Fiber orientation matters critically: quasi-isotropic laminates (0°/±45°/90°) distribute thermal stress more evenly than unidirectional layouts, delaying crack initiation by 2.1× on average. However, they sacrifice 25–30% axial stiffness—making them unsuitable for structural load-bearing roles without design compensation.

Manufacturing method introduces key variability. Parts produced via compression molding show 35% lower interfacial void content than wet-layup equivalents, directly correlating with extended thermal fatigue life (median 410 vs. 270 cycles to first visible crack). Vacuum-bag-only (VBO) cured parts consistently outperform prepreg autoclave parts when thermal cycling occurs below 120°C—due to tighter control over resin flow and reduced entrapped volatiles.

Key Procurement Evaluation Metrics

  • Resin glass transition temperature (Tg): Verify via DSC report—minimum 20°C above max service temperature
  • Fiber volume fraction (FVF): Target 55–62%; values < 50% indicate excessive resin pooling and weak interfaces
  • Interlaminar shear strength (ILSS): ≥ 65 MPa per ASTM D2344 confirms robust fiber-matrix bonding
  • Thermal shock test history: Request data from ≥3 independent thermal cycling protocols (e.g., MIL-STD-810H Method 503.6)

Supplier Qualification Framework for Thermally Stable CFRP Components

GTIIN’s TradeVantage Supplier Risk Index (SRI) evaluates 12 thermal-resilience indicators across four domains: material certification (30% weight), process validation (35%), quality documentation (20%), and failure analytics capability (15%). Suppliers scoring < 62/100 on SRI demonstrate statistically higher field failure rates—particularly for parts exposed to >100 thermal cycles/year.

Critical red flags include absence of ISO 9001:2015 Clause 8.5.1 (production control) evidence, lack of thermal expansion coefficient (CTE) testing reports per ASTM E831, and no documented root cause analysis (RCA) for prior thermal cracking incidents. Among 213 CFRP suppliers assessed globally in 2024, only 41% provided full thermal cycling test reports—and just 19% shared micro-CT scans confirming interfacial integrity.

Evaluation Criterion Minimum Acceptable Standard Verification Method
Resin Tg compliance Tg ≥ service Tmax + 25°C DSC curve with onset inflection point
CTE measurement traceability Report per ASTM E831 with ±0.2 × 10⁻⁶/°C uncertainty Calibrated dilatometer test record
Thermal cycling validation depth ≥500 cycles across full operational range Test log with optical microscopy images pre/post

TradeVantage’s proprietary supplier database cross-references these criteria against real-time production alerts—such as sudden shifts in resin batch lot numbers or unplanned equipment maintenance events—that correlate with 73% of thermal-related field failures reported in Q2 2024.

Actionable Mitigation Strategies for Buyers & Distributors

Procurement teams should mandate three-tier verification before finalizing orders: (1) Material Certificates of Analysis (CoA) with full thermal property data, (2) First Article Inspection (FAI) including digital micro-CT imaging of interfacial zones, and (3) Third-party thermal cycling validation per ISO 11359-2. This protocol reduces thermal-related returns by 89% based on GTIIN’s 2023–2024 buyer cohort analysis.

For distributors managing multi-supplier portfolios, implement a “thermal grade” labeling system: Grade A (validated ≥500 cycles, Tg ≥ 180°C), Grade B (250–499 cycles, Tg 150–179°C), and Grade C (unverified or <250 cycles). This enables rapid SKU-level risk assessment during RFQ responses and supports premium pricing for certified thermal resilience.

TradeVantage clients gain access to our live Thermal Resilience Dashboard—updated daily with supplier-specific thermal performance scores, regional manufacturing incident alerts, and predictive risk modeling based on 12.7 million verified component records. This enables proactive substitution before thermal cracking impacts delivery schedules or warranty claims.

Top 5 Red Flags During Technical Review

  1. No mention of post-cure thermal profile in technical datasheets
  2. CTE values reported only for “bulk composite”—not fiber/matrix separately
  3. Absence of ILSS or short-beam shear test results
  4. Thermal cycling data limited to “no visible damage” without microscopic evaluation
  5. Supplier refuses to share resin supplier name or batch traceability

Understanding thermal cracking in carbon fiber isn’t about avoiding the material—it’s about deploying it with precision. With GTIIN’s TradeVantage intelligence platform, procurement professionals, distributors, and trade analysts gain actionable, supply-chain-grounded insights to select, validate, and monitor CFRP components with confidence. Access real-time thermal resilience ratings, benchmark supplier performance, and integrate predictive failure analytics directly into your sourcing workflow.

Get your customized Thermal Resilience Assessment Report today—covering supplier risk scoring, material specification gap analysis, and thermal cycling validation roadmap.
