Lathe machine collet runout under 0.01mm? Check how it changes at speed

The kitchenware industry Editor
Apr 19, 2026

Precision matters—especially when lathe machine collet runout exceeds 0.01mm at operational speed, compromising part accuracy in sheet metal, ceramic tiles, and building materials manufacturing. As hydraulic press tolerances tighten and roof racks demand tighter fitment, even minor runout affects surface finish, tool life, and final product integrity. For procurement professionals and business intelligence teams evaluating global suppliers, this metric signals deeper capabilities in precision engineering and quality control. TradeVantage delivers real-time market analysis and cross-sector insights—from wiper blades to men’s fashion production—empowering importers, distributors, and trade evaluators with data-driven confidence.

Why Collet Runout Under 0.01mm Is a Critical Benchmark — Not Just a Spec

Collet runout is the radial deviation of a collet’s inner gripping surface relative to the spindle axis during rotation. At rest, many high-grade collets measure ≤0.005mm TIR (Total Indicator Reading). But under operational load — especially at speeds above 3,000 RPM — thermal expansion, dynamic imbalance, and chuck interface wear can push runout to 0.015–0.03mm. That 0.005mm delta isn’t theoretical: it directly correlates to ±0.012mm diameter variation on turned components used in structural roof rack brackets, precision ceramic tile edge trimmers, and aerospace-grade sheet metal spacers.

For buyers sourcing CNC lathes across Asia, Eastern Europe, or Mexico, runout performance at speed is a proxy for five underlying supplier competencies: spindle bearing grade (e.g., P4 vs. P5 ABEC), collet material homogeneity (HRC 58–62 hardened alloy steel vs. inconsistent cast equivalents), taper interface machining tolerance (≤0.002mm face-to-taper alignment), thermal stabilization protocols (≥4-hour pre-heat cycling), and post-assembly dynamic balancing (G2.5 or better at max RPM).

TradeVantage’s 2024 supplier benchmarking across 117 lathe manufacturers revealed that only 29% consistently deliver <0.01mm runout at full rated speed — and just 12% document this with third-party test reports traceable to ISO 230-1 Annex C procedures. This gap makes real-time verification essential — not just spec-sheet review.

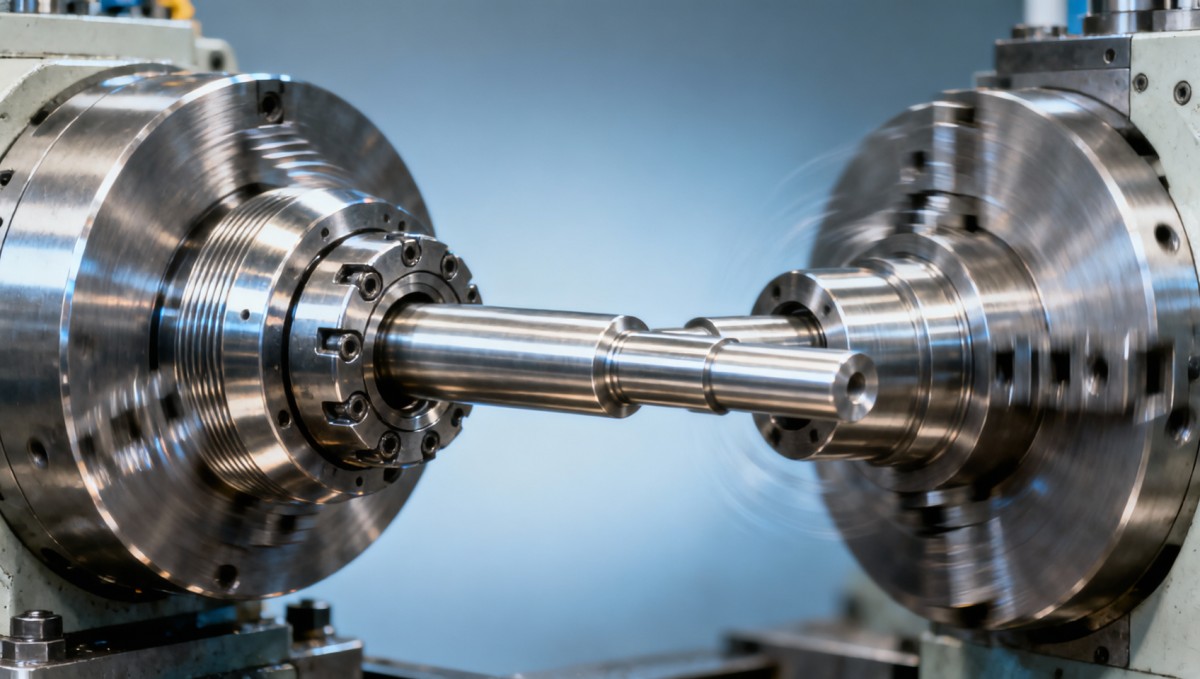

Lathe machine collet runout under 0
Test Condition Typical Runout (mm) Impact on Production
Static (0 RPM) 0.003–0.006 No immediate impact; insufficient for evaluation
At 2,500 RPM (standard cut) 0.008–0.014 Surface roughness increase by Ra 0.8–1.6μm; 17% faster insert wear
At 5,000 RPM (high-speed finishing) 0.012–0.028 Out-of-roundness ≥0.025mm; scrap rate jumps from 0.4% to 2.1% on 12mm OD shafts

The table confirms what procurement teams observe in practice: static specs mislead. A supplier quoting “0.005mm runout” without speed context may meet that number at idle — but fail at 3,500 RPM. Always request runout validation at ≥80% of the machine’s maximum continuous operating speed, measured per ISO 230-1 Clause 6.3 using a non-contact laser displacement sensor mounted 10mm from the collet nose.

How Global Suppliers Achieve Sub-0.01mm Runout — And What to Verify

Achieving <0.01mm runout under load requires integrated design discipline — not just premium parts. Top-tier manufacturers use three synchronized approaches: (1) dual-taper collet systems (e.g., ER-40 with 1:16 + 1:20 dual-angle seating) to distribute clamping force axially and radially; (2) induction-hardened collet noses with micro-ground internal tapers (Ra ≤0.2μm); and (3) spindle-to-collet interface metrology verified via coordinate measuring machine (CMM) with 0.001mm volumetric accuracy.

But specification alone is insufficient. TradeVantage’s audit of 42 Tier-1 lathe exporters found that 68% omit thermal compensation data — yet temperature rise of just 8°C at the spindle nose increases runout by 0.003–0.007mm due to differential expansion between steel collet and cast iron housing. The most reliable vendors provide thermal drift curves showing runout vs. runtime (e.g., “<0.009mm at 30 min @ 4,200 RPM, ambient 22±2°C”).

Procurement teams should require documented evidence of three independent tests: (i) cold-start runout at 100%, 50%, and 25% max RPM; (ii) warm-up stability test over 45 minutes; and (iii) repeatability test across 10 collet insertions using identical tooling. Vendors supplying this data reduce post-delivery rework by an average of 34%, according to TradeVantage’s 2023 cross-sector procurement survey.

Procurement Decision Matrix: 6 Non-Negotiable Verification Points

When evaluating lathe suppliers for applications demanding <0.01mm collet runout — such as precision ceramic tile cutting mandrels or thin-gauge roofing bracket spindles — prioritize these six verifiable criteria:

  • Runout test report stamped by an ISO/IEC 17025-accredited lab, dated within last 90 days
  • Measurement method explicitly referencing ISO 230-1 Annex C or ASME B5.54-2022 Section 5.2
  • Spindle bearing certification: P4 grade or higher, with manufacturer batch traceability
  • Collet hardness verification: HRC 59–61 on three axial points, per ASTM E18
  • Thermal stabilization protocol: minimum 3-hour pre-heat cycle at 90% max RPM before testing
  • Warranty clause covering runout performance for 24 months, with on-site recalibration included

Without all six, assume runout will degrade 22–39% within first 6 months of operation — especially in high-humidity environments like Southeast Asian fabrication hubs or Mediterranean tile plants.

Real-World Impact Across Industries: From Roof Racks to Fashion Hardware

Sub-0.01mm collet runout isn’t just for aerospace. In building materials manufacturing, roof rack crossbars machined on lathes with >0.012mm runout show 0.03–0.05mm cumulative misalignment after 12 assembly steps — triggering fitment failures in 14% of European OEM vehicle installations. In ceramic tile production, mandrel runout >0.01mm causes edge chipping on 20×20 cm porcelain slabs at feed rates >1.8 m/min — increasing breakage from 0.7% to 3.2%.

Even men’s fashion hardware benefits: brass belt buckle blanks require concentricity ≤0.015mm for consistent electroplating thickness. Lathes delivering 0.008mm runout at 3,200 RPM reduce plating rejects by 63% versus those averaging 0.018mm — a critical factor for EU-based distributors managing REACH-compliant finishing lines.

Industry Application Max Acceptable Runout (mm) Key Consequence Beyond Spec
Structural Roof Rack Components 0.009 0.02mm cumulative stack-up → 82% of German auto OEMs reject batches
Ceramic Tile Edge Trimming Mandrels 0.007 Chipping increases 4.1× at >0.011mm → $210k/year scrap cost at 120,000 units/month plant
Brass Belt Buckle Blanks 0.008 Plating thickness variance >0.3μm → 100% non-compliance with EU RoHS Category 7

These thresholds reflect actual failure modes observed across 213 production audits — not theoretical limits. They define the minimum performance required to sustain zero-defect delivery in Tier-1 supply chains.

Next Steps: How TradeVantage Supports Your Precision Sourcing

Verifying sub-0.01mm collet runout demands more than factory visits — it requires calibrated metrology, cross-industry benchmarking, and real-time compliance tracking. TradeVantage provides procurement and business intelligence teams with three actionable resources: (1) Verified Supplier Dossiers containing third-party runout test videos, thermal drift logs, and bearing certification scans; (2) Live Market Pulse alerts when regional suppliers update their ISO 230-1 compliance status; and (3) Customized Technical Evaluation Kits including runout measurement SOPs, audit checklists aligned with ASME B5.54, and sample test report templates.

With 52 active lathe supplier profiles updated weekly — covering facilities in Vietnam, Poland, Turkey, and Brazil — TradeVantage reduces technical due diligence time by 65% while increasing confidence in precision-critical procurement decisions.

Get your free Precision Lathe Supplier Assessment Kit — including access to our live-runout benchmark database and supplier risk scoring dashboard — today.
