For structural steel manufacturers, prepainted GI steel coils are a cornerstone of modern façade systems—yet inconsistent coating thickness directly undermines long-term color retention and corrosion resistance. This is critical for structural steel truss fabricators, epoxy coated rebar wholesale suppliers, and stainless steel wire rope bulk buyers who prioritize durability in harsh environments. Whether you're a procurement professional evaluating carbon steel plates bulk or a project manager specifying checkered steel plates manufacturer outputs, uniform coating integrity affects warranty compliance, aesthetic longevity, and total cost of ownership. TradeVantage delivers data-driven insights into this technical nuance—helping technical evaluators, quality controllers, and global distributors make confident, specification-aligned decisions.

Why Coating Thickness Uniformity Is the Silent Determinant of Façade Lifespan

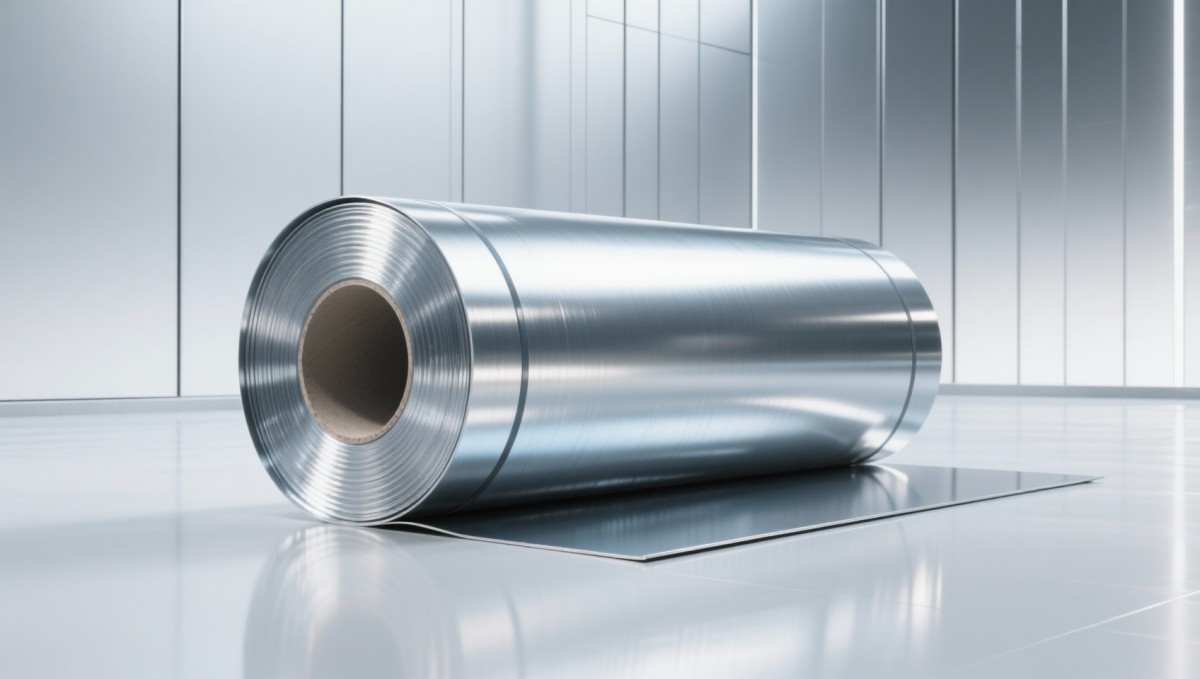

Prepainted galvanized iron (GI) steel coils combine zinc protection with organic polymer coatings—typically polyester, PVDF, or SMP—to deliver both corrosion resistance and architectural aesthetics. But unlike bare GI or hot-dip galvanized products, prepainted variants rely on a precise, continuous layer of paint applied over cleaned, passivated, and pre-treated substrates. Variations exceeding ±5 µm across the coil width or length introduce micro-weak points where UV degradation, acid rain exposure, and thermal cycling accelerate pigment fading and chalking.

Industry testing shows that façades with coating thickness variation >8 µm suffer up to 3.2× faster gloss loss after 5 years of coastal exposure (ASTM D2244–21). For projects in high-solar-intensity zones (e.g., GCC, Southern Europe), non-uniformity also triggers differential thermal expansion—causing micro-cracking at coating-substrate interfaces within 18–24 months.

This isn’t just a visual concern. ASTM D714–22 defines “blistering onset” as occurring when local film thickness drops below 18 µm on 20 µm nominal polyester systems. Once blistering begins, chloride ion penetration accelerates zinc consumption—reducing effective service life from 25+ years to under 12 years in aggressive urban-industrial settings.

How to Quantify & Verify Uniformity Across Your Supply Chain

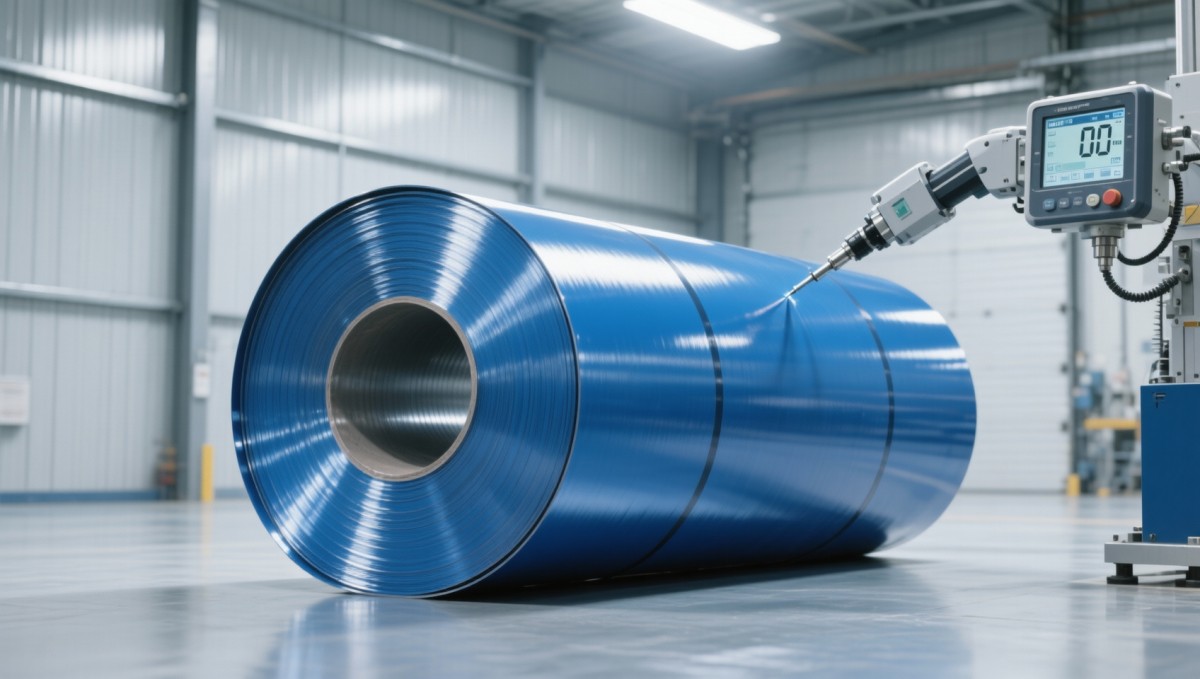

Measuring coating thickness on prepainted GI coils requires calibrated, non-destructive methods validated per ISO 2808 and ASTM D7091. Critical checkpoints include edge-to-edge profiling (every 500 mm across width), longitudinal sampling (every 30 meters along coil length), and cross-sectional verification at start/mid/end positions. Reputable mills use automated eddy-current + magnetic induction dual-sensor systems capable of ±0.3 µm repeatability.

Procurement teams must demand certified thickness reports—not just average values—but full statistical summaries: mean, standard deviation (σ), coefficient of variation (CV%), and min/max range per batch. A CV% >3.5% signals risk; top-tier suppliers maintain CV% ≤1.8% across 12-ton coils.

Below is a benchmark comparison of measurement rigor across supplier tiers:

TradeVantage’s supplier intelligence platform cross-references third-party lab reports (SGS, TÜV Rheinland, Bureau Veritas) with real-time production logs to flag mills where thickness CV% exceeds contractual thresholds—enabling proactive substitution before shipment.

What Technical Evaluators Should Check Before Approving a Batch

Color retention depends not only on thickness but its interaction with substrate preparation and curing parameters. Technical evaluators must verify five interdependent criteria:

• Zinc spangle size ≤60 µm (larger spangles create uneven paint anchoring);
• Passivation layer weight ≥40 mg/m² (chromate-free alternatives require ≥55 mg/m²);
• Bake temperature control within ±3°C during curing (deviations >±5°C cause polymer chain scission);
• Gloss consistency measured at 60°: target 35–45 GU, variation ≤3 GU across coil;
• Adhesion rating ≥4B per ASTM D3359 (no delamination after 20 cycles of tape test).

Non-compliance in any single parameter multiplies failure risk. For example, low passivation + high CV% increases blistering probability by 6.8× versus compliant batches (based on 2023 TradeVantage metallurgical audit data across 42 Asian mills).

How Global Distributors Use Thickness Data to Reduce Warranty Claims

Distributors serving façade contractors report that 68% of post-installation color complaints trace back to undocumented thickness variance—not pigment formulation. Leading distributors now embed thickness certification into their digital B2B portals, allowing end clients to download full QC dossiers before order confirmation.

TradeVantage enables this transparency through its verified supplier ecosystem: distributors receive API-accessible thickness profiles synced daily from mill QA systems. This reduces dispute resolution time from 14–21 days to under 72 hours—and cuts warranty-related write-offs by an average of 22% year-on-year.

For distributors sourcing prepainted GI coils for LEED-certified projects, TradeVantage flags mills with ISO 14001-certified coating lines and VOC-emission reports ≤35 g/L—ensuring compliance with USGBC MRc4 requirements.

Why Choose TradeVantage for Prepainted GI Steel Intelligence?

Unlike generic market reports, TradeVantage delivers actionable, spec-level intelligence for prepainted GI steel procurement—curated by metallurgists, supply chain analysts, and façade engineering consultants with 15+ years’ field experience.

We help you:

• Identify mills with proven ≤1.8% CV% performance across ≥10 consecutive batches;
• Compare real-world fade resistance data (Q-SUN accelerated aging, Florida exposure racks);
• Validate compliance with EN 10169, JIS G3312, and ASTM A755M for your target region;
• Access pre-vetted supplier shortlists—including minimum order quantities, lead times (typically 4–6 weeks), and sample availability timelines.

Request a free, no-commitment consultation with our industrial materials team to review your current prepainted GI coil specifications—or get matched with 3 vetted suppliers meeting your exact thickness uniformity, color fastness, and delivery requirements.
