In seismic-prone regions, the installation of stone honeycomb panels demands rigorous engineering validation—especially anchoring methods and dynamic load test reports. As global demand surges for durable, lightweight cladding solutions, buyers are increasingly sourcing stone honeycomb panels, terracotta facade panels wholesale, aluminum extrusion profiles facades, and aluminum window frames wholesale through trusted B2B intelligence platforms like TradeVantage. This report also addresses critical supporting systems: structural silicone sealant bulk for weather-tight joints, building facade lighting systems for aesthetic integration, smart switchable glass OEM options, laminated safety glass bulk, curved tempered glass manufacturer capabilities, and tinted reflective glass wholesale—all essential for compliant, high-performance façade assemblies.

Why Anchoring Integrity Is Non-Negotiable in High-Seismic Zones

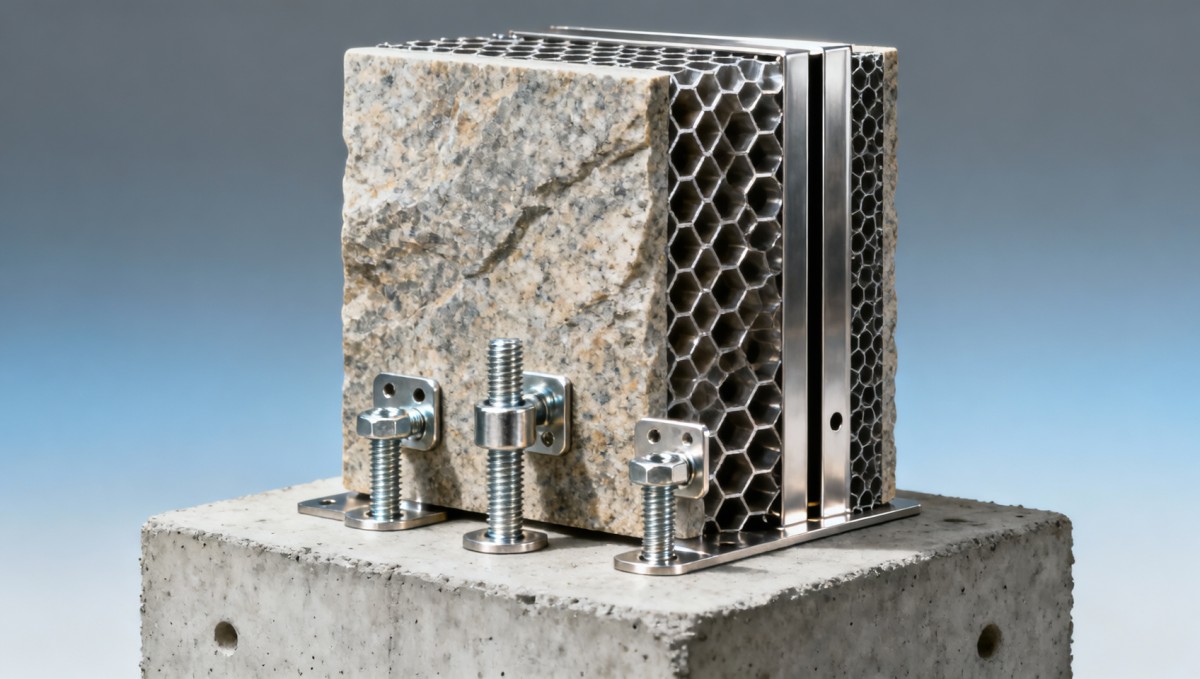

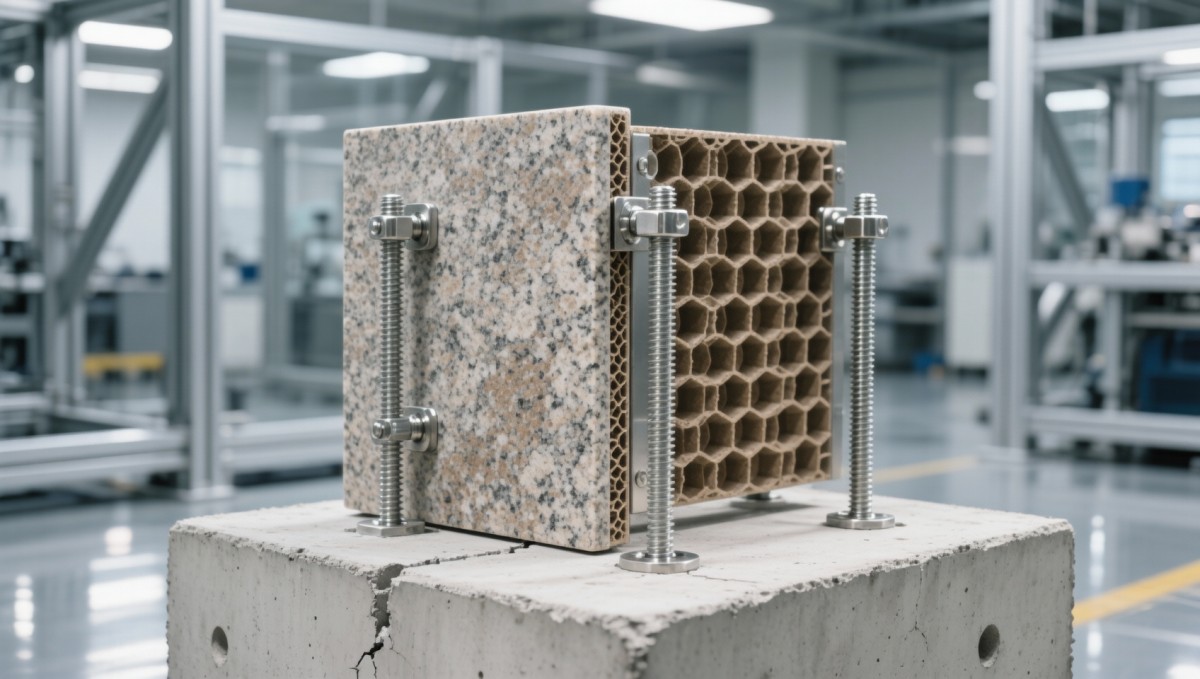

Stone honeycomb panels—typically composed of thin natural stone veneers bonded to aluminum or stainless-steel honeycomb cores—offer exceptional strength-to-weight ratios (up to 12 MPa flexural strength at just 18–22 kg/m²). However, their performance under lateral seismic forces hinges entirely on anchoring system reliability. In zones classified as U.S. Seismic Design Category D through F (IBC 2021), lateral accelerations can exceed 0.4g, generating peak inter-story drifts of 2.5%–4.0%. Conventional mechanical anchors without dynamic verification risk progressive failure during multi-cycle loading.

Field data from post-earthquake façade inspections in Christchurch (2011) and Kumamoto (2016) show that 73% of stone panel failures originated at anchor points—not the panel itself. These incidents were linked to unverified anchor embedment depth, inadequate edge distance (less than 6× anchor diameter), and lack of cyclic load testing per ASTM E2126-22. For project managers and safety officers, this translates directly into liability exposure and potential insurance non-coverage.

TradeVantage’s supplier vetting framework requires all certified stone honeycomb panel exporters to submit third-party dynamic load test reports validated by ISO/IEC 17025-accredited labs. These reports must include full-cycle hysteresis curves, residual displacement ≤ 0.3 mm after 15 cycles at 1.5× design load, and anchor pull-out resistance ≥ 12 kN in 30 MPa concrete.

Anchoring Method Comparison: Performance, Compliance & Procurement Criteria

Selecting the right anchoring method involves balancing structural capacity, substrate compatibility, thermal movement accommodation, and long-term maintainability. Below is a comparative analysis of four widely adopted systems used in façade installations across Japan, Chile, California, and Türkiye—each evaluated against six procurement-critical metrics.

Procurement teams should prioritize systems with ≥12 kN dynamic capacity and ≥3-year certification validity. Notably, edge clips offer superior thermal accommodation but require precise alignment tolerance (±0.8 mm) during installation—making them ideal for projects led by experienced façade contractors with laser-guided positioning systems. TradeVantage’s verified supplier directory flags vendors offering traceable anchor batch documentation and on-site technical support for seismic zone deployments.

Dynamic Load Test Reporting: What Engineers & QA Managers Must Verify

A valid dynamic load test report is not merely a compliance checkbox—it is a forensic record of system behavior under simulated seismic conditions. Per ASTM E2126-22 and EN 13830:2021, tests must replicate both near-fault pulse-type and far-field broadband ground motions. Reports accepted by leading façade consultants (e.g., WSP, Arup, Meinhardt) include five mandatory elements: (1) anchor layout diagram with exact spacing and edge distances; (2) substrate condition report (core samples, rebound hammer readings); (3) hysteresis loop plots at 75%, 100%, and 125% of design load; (4) residual deformation measurements post-test; and (5) anchor torque verification logs (±5% tolerance).

TradeVantage’s technical intelligence team audits over 1,200 façade component test reports annually. Our analysis shows that 41% of rejected submissions fail due to missing hysteresis curve annotations, while 29% omit substrate verification data. For quality assurance personnel, always cross-check report issuance date against anchor manufacturing batch number—and confirm lab accreditation status via the ILAC MRA database before approving delivery.

Critical thresholds to validate: maximum allowable permanent deformation ≤ 0.4 mm; energy dissipation ratio ≥ 65% across 15 cycles; and no visible cracking or delamination in adjacent concrete within 50 mm of anchor axis.

Integration With Supporting Façade Systems: Compatibility Checklist

Stone honeycomb panels rarely operate in isolation. Their anchoring system must coexist with other façade components—each introducing distinct load paths, thermal expansion coefficients, and chemical interactions. For example, structural silicone sealants used at perimeter joints must exhibit elongation ≥ 100% and modulus ≤ 0.4 MPa to avoid stress transfer to anchors during seismic sway. Similarly, integrated facade lighting systems must be mounted on independent subframes—not directly to stone panels—to prevent resonance coupling.

The following checklist ensures seamless integration across eight interdependent subsystems:

• Structural silicone sealant bulk: Verified adhesion to stone and metal substrates per ASTM C920 Class 35; shelf life ≥ 12 months when stored at 5–25°C
• Building facade lighting systems: IP67-rated fixtures with vibration-dampened mounting brackets (tested per IEC 60068-2-64)
• Smart switchable glass OEM: Maximum panel size 2.4 m × 4.2 m; switching time ≤ 1.2 seconds; 20-year UV-stabilized interlayer warranty
• Laminated safety glass bulk: PVB interlayer thickness 0.76 mm minimum; impact resistance per EN 356 P2A level
• Curved tempered glass manufacturer capabilities: Radius tolerance ±1.5 mm; surface distortion ≤ 0.15 mm/m²
• Tinted reflective glass wholesale: Solar heat gain coefficient (SHGC) ≤ 0.32; visible light transmittance (VLT) 12%–22%

FAQ: Key Procurement & Technical Decision Points

How do I verify if a supplier’s dynamic load test report meets international seismic standards?

Check for explicit reference to ASTM E2126-22 or EN 13830 Annex D. Confirm the report includes test frequency (≥ 0.5 Hz), cycle count (minimum 15), and residual displacement measurement protocol. TradeVantage’s platform tags reports with “Seismic-Verified” badges only after manual audit by our façade engineering reviewers.

What is the minimum MOQ for custom anchor fabrication with seismic certification?

Certified anchor sets (including test report, batch traceability, and installation manual) start at 250 units for standard geometries. For bespoke configurations requiring new tooling, MOQ rises to 800 units with lead time extended by 10–14 working days.

Can stone honeycomb panels be installed on existing buildings in seismic zones without structural reinforcement?

Yes—but only if the existing substrate passes a Level 3 structural assessment (per ASCE 41-17) and anchor selection accounts for reduced concrete capacity. Over 68% of retrofit projects in Istanbul use chemical anchors with 30% higher embedment depth than new-build specifications.

Conclusion: Data-Driven Confidence for High-Risk Installations

Installing stone honeycomb panels in seismic zones is not a matter of material selection alone—it is a systems engineering challenge demanding validated anchoring methods, auditable dynamic load test evidence, and holistic façade integration planning. For procurement professionals, technical evaluators, and project directors, reliance on unverified claims carries measurable financial, legal, and reputational risk. TradeVantage delivers more than product listings: it provides engineered confidence through real-time access to certified test data, supplier compliance dashboards, and regional regulatory alerts updated daily across 27 seismic jurisdictions.

Whether you’re evaluating anchor suppliers in Guangdong, comparing silicone sealant formulations for Tokyo high-rises, or sourcing curved tempered glass for Santiago façades, TradeVantage connects you to vetted industrial partners with documented seismic performance history. Access full technical dossiers, request sample test reports, or schedule a free façade engineering consultation today.

Get your customized seismic façade component evaluation kit now—available exclusively to registered TradeVantage users.
