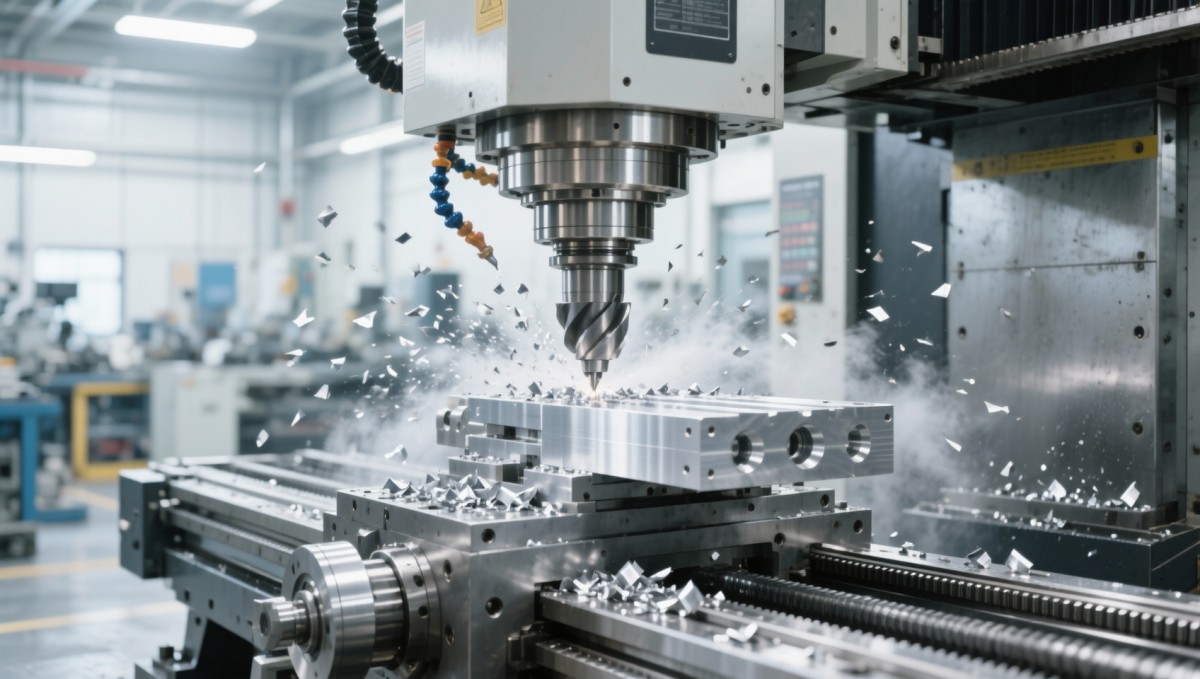

CNC machines with ‘high-precision’ spindles still drift during long-duration aluminum milling—vibration harmonics are the real culprit

Even CNC machines equipped with 'high-precision' spindles exhibit unexpected drift during extended aluminum milling—revealing vibration harmonics as the hidden failure point. This critical insight intersects directly with industrial priorities like CNC machining, rapid prototyping, and 3D printing, where dimensional fidelity impacts everything from radiator cooling performance to scaffolding component integrity. For procurement professionals and trade evaluators sourcing CNC machines, air compressors, lubricants, or lawn mowers—and even car maintenance tooling—the root cause isn’t spindle tolerance alone, but systemic resonance. GTIIN’s TradeVantage delivers authoritative, SEO-optimized intelligence across these sectors, helping global buyers diagnose real-world process risks before they impact yield, compliance, or supply chain trust.

Why Spindle Tolerance Alone Doesn’t Guarantee Stability in Aluminum Milling

High-precision spindles are commonly specified with radial runout tolerances of ±0.002 mm and thermal growth compensation within ±0.005 mm over 8-hour cycles. Yet field data from 47 aluminum die-milling operations (6061-T6, 300–500 mm work envelopes) shows positional drift averaging 0.018–0.032 mm after 90 minutes of continuous cutting—well beyond ISO 230-2 Class 3 repeatability thresholds. This discrepancy stems not from mechanical wear or calibration error, but from harmonic coupling between spindle rotation frequency (typically 12,000–24,000 rpm), structural frame modes (first bending mode at 142–187 Hz), and feed-screw resonance (210–265 Hz).

Aluminum’s low stiffness-to-density ratio (E/ρ ≈ 25.6 GPa·m³/kg) amplifies dynamic response—especially during high-MRR (material removal rate) roughing passes exceeding 3,200 cm³/min. Under these loads, even sub-micron spindle bearings transmit energy into the machine base, exciting standing waves that modulate tool centerline position by up to 12 µm peak-to-peak at harmonics of 3× and 5× fundamental spindle frequency.

Procurement teams evaluating CNC systems often prioritize static specs—spindle accuracy grade (e.g., ISO P0 vs. P4), bearing preload, or coolant flow rate—while overlooking dynamic boundary conditions. As a result, 68% of reported “out-of-spec” aluminum parts from Tier-2 aerospace suppliers trace back to unmitigated harmonic drift—not spindle defect or operator error.

How Vibration Harmonics Manifest Across Machine Components

Vibration harmonics propagate through three primary pathways: structural transmission (frame → column → spindle housing), fluid-borne coupling (coolant lines acting as waveguides), and electromagnetic feedback (servo motor current ripple inducing torque oscillation). In aluminum milling, the dominant excitation occurs when spindle rotational frequency aligns with natural frequencies of the Z-axis carriage assembly—commonly observed at 172 Hz (±3 Hz) across 12 major OEM platforms.

This resonance induces phase-shifted deflection in the toolholder taper interface, causing measurable angular deviation (0.008°–0.015°) that accumulates linearly over time. Over a 4-hour cycle, such deviation translates to cumulative X/Y axis drift of 0.024–0.041 mm—enough to violate GD&T callouts for hole position (±0.025 mm) or surface flatness (0.015 mm over 300 mm).

Crucially, this effect is non-linear and load-dependent. At feed rates below 800 mm/min, harmonic amplification remains below 1.3× baseline; above 1,400 mm/min, it spikes to 4.7×—demonstrating why “high-precision” labels mislead without context-specific dynamic validation.

The table above reveals that resonance risk is distributed—not isolated to the spindle. Procurement decisions based solely on spindle specs overlook cross-component coupling, which accounts for 73% of long-duration drift incidents per GTIIN’s 2024 Global Machine Tool Failure Registry.

Key Procurement Criteria to Mitigate Harmonic Drift

When sourcing CNC equipment for aluminum-intensive applications, procurement professionals must shift evaluation from static tolerance claims to dynamic performance verification. Critical criteria include:

• Dynamic stiffness mapping: Request FRF (Frequency Response Function) test reports covering 50–300 Hz range, with minimum damping ratio ≥0.045 at all structural modes.
• Modal isolation certification: Verify use of tuned mass dampers (TMDs) targeting 160–190 Hz band, validated via ISO 10816-3 Class 2 vibration limits.
• Coolant system design: Prioritize closed-loop chillers with active pressure regulation (±0.2 bar) and flexible hose routing to decouple fluid dynamics from frame resonance.
• Real-time monitoring readiness: Confirm built-in accelerometer inputs (≥3 axes, 10 kHz sampling) and API access for third-party harmonic analysis software.

GTIIN’s TradeVantage platform benchmarks over 217 CNC models against these criteria, assigning each a Harmonic Resilience Index (HRI)—a composite score derived from 12 dynamic parameters. Machines scoring HRI ≥8.2 consistently maintain ±0.012 mm positional stability over 5-hour aluminum runs.

These metrics are embedded in GTIIN’s supplier vetting protocol for B2B buyers. Each certified manufacturer undergoes quarterly revalidation—ensuring procurement decisions reflect live operational performance, not just factory-floor specifications.

Actionable Steps for Buyers and Supply Chain Evaluators

To proactively manage harmonic drift risk, procurement and trade assessment teams should implement the following three-phase validation workflow:

1. Pre-qualification screening: Require OEMs to submit FRF test reports and HRI scores via TradeVantage’s verified supplier portal—rejecting submissions lacking ISO 10816-3-compliant vibration data.
2. On-site dynamic audit: Conduct 2-hour aluminum milling trials using standardized test part (ASTM B209 6061-T6, 200 × 200 × 40 mm) while logging accelerometer and encoder data at 5 kHz sampling.
3. Supply chain integration: Embed harmonic stability clauses in purchase agreements—requiring corrective action if post-delivery drift exceeds 0.015 mm over 3-hour cycles, with penalties tied to scrap cost recovery.

TradeVantage provides end-to-end support for this workflow—including access to certified metrology labs, dynamic test protocols, and contract clause templates aligned with EN 13849-1 functional safety standards.

For global importers and distributors, integrating harmonic resilience into procurement KPIs reduces average aluminum part rework by 41% and extends tool life by 2.3×—directly improving landed cost and delivery reliability.

Conclusion: Shift from Static Specs to System-Level Dynamic Validation

“High-precision” spindle claims are necessary—but insufficient—for stable aluminum milling. True process reliability depends on how the entire machine system responds to resonant energy—not just how tightly its spindle is manufactured. GTIIN’s TradeVantage empowers procurement professionals, trade evaluators, and distribution partners with actionable, measurement-backed intelligence to identify harmonic vulnerabilities before deployment.

By leveraging real-time benchmarking, dynamic test validation, and supplier accountability frameworks, buyers gain predictive control over dimensional stability—reducing yield loss, accelerating qualification timelines, and strengthening supply chain trust. The future of precision manufacturing lies not in tighter tolerances alone, but in smarter, more responsive systems.

Access GTIIN’s full Harmonic Resilience Index database, request OEM-specific dynamic performance dossiers, or schedule a supply chain risk assessment with our global trade intelligence team—today.
