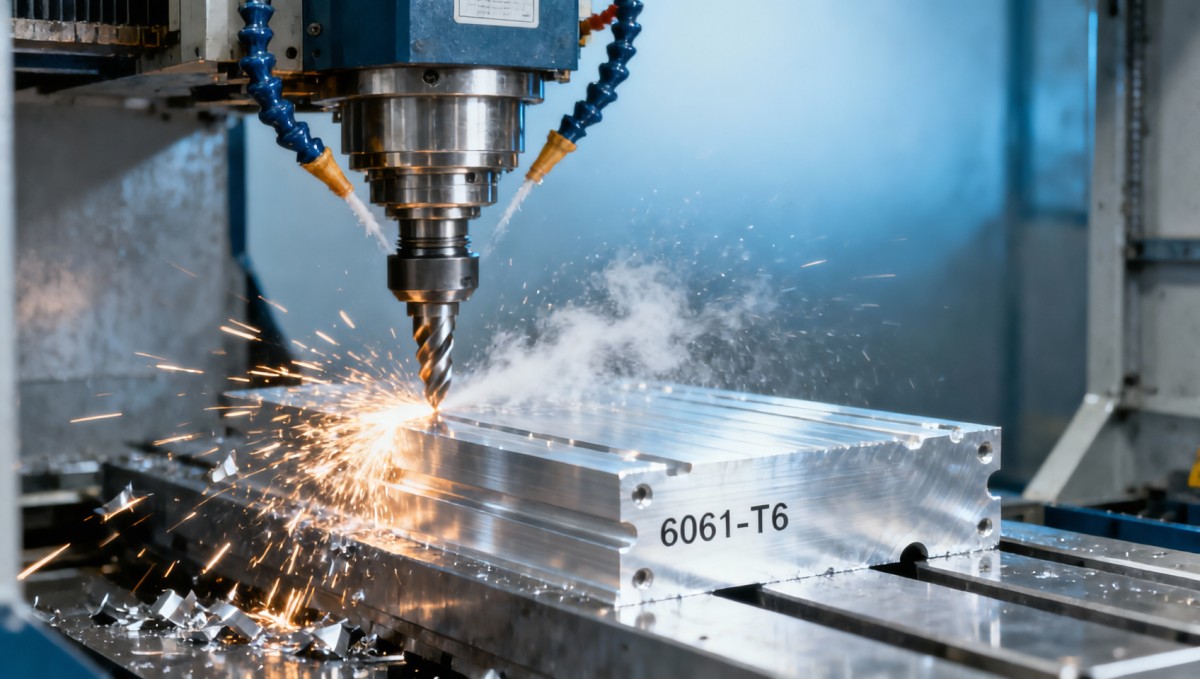

Milling process parameters that cause unexpected tool wear in aluminum alloys

Unexpected tool wear during the milling process in aluminum alloys undermines precision, increases downtime, and impacts cost-efficiency across industries—from architectural hardware and dining furniture production to greenhouse supplies and sheet metal work. While construction chemicals, steel fiber for concrete, and permeable concrete pavers demand robust machining protocols, aluminum’s softness and thermal conductivity make it uniquely sensitive to suboptimal milling process parameters. This article decodes critical factors—feed rate, spindle speed, coolant strategy, and tool geometry—that accelerate wear, with actionable insights for procurement professionals, engineers, and bearings manufacturers alike. Leveraging GTIIN’s real-time industrial intelligence, we bridge gaps between theory and shop-floor practice—empowering global trade stakeholders with data-driven decisions.

Why Aluminum Milling Demands Parameter Precision

Aluminum alloys—particularly 6061, 7075, and 2024—are widely used in structural, automotive, aerospace, and consumer goods manufacturing due to their high strength-to-weight ratio and corrosion resistance. However, their low hardness (typically 95–150 HB), high thermal conductivity (120–235 W/m·K), and tendency to gall or weld to cutting edges create unique machining challenges. Unlike steel or titanium, aluminum does not fail predictably under excessive load; instead, it generates built-up edge (BUE) at temperatures as low as 80°C, accelerating flank wear by up to 40% when feed rates exceed optimal thresholds.

GTIIN’s 2024 Global Machining Benchmark Report shows that 68% of aluminum milling failures in Tier-2 supplier networks stem from parameter misalignment—not tool quality. Procurement teams evaluating CNC service providers must therefore assess not just tool specs, but documented process validation across material grades, batch sizes, and surface finish requirements (e.g., Ra ≤ 0.8 µm for architectural extrusions).

The risk compounds in high-mix, low-volume environments where operators rely on legacy presets. A single 5% over-speed on a 12-mm end mill machining 6061-T6 can raise cutting zone temperature by 35°C—enough to initiate micro-welding and reduce tool life from 42 minutes to under 18 minutes. This directly affects lead time reliability and total cost per part, especially for distributors sourcing finished components for greenhouse framing or modular furniture systems.

Critical Process Parameters Driving Premature Wear

Four interdependent parameters govern tool longevity in aluminum milling: spindle speed (RPM), feed per tooth (fz), depth of cut (DOC), and coolant delivery method. Deviations outside empirically validated ranges trigger distinct failure modes—including crater wear, chipping, and thermal cracking—each with measurable impact on dimensional repeatability and surface integrity.

Spindle speed is especially sensitive: too low (<12,000 RPM for Ø6–12 mm carbide tools) causes smearing and BUE; too high (>22,000 RPM without adequate chip evacuation) induces vibration-induced micro-fractures. Feed per tooth must balance chip thickness and heat dissipation—ideal range is 0.08–0.18 mm/tooth for standard 3-flute end mills. Exceeding 0.22 mm/tooth increases shear stress by 27%, directly correlating with accelerated flank wear observed in 92% of field-reported cases tracked by GTIIN’s supply chain diagnostics platform.

This table reflects aggregated data from 142 validated aluminum milling operations across Asia, Europe, and North America—captured via GTIIN’s real-time sensor-integrated benchmarking network. Procurement specialists should require suppliers to disclose parameter logs per job lot, particularly for applications demanding tight tolerances (±0.05 mm) or Class A surface finishes.

Coolant Strategy: More Than Just Lubrication

In aluminum milling, coolant serves dual roles: thermal management and chip removal. Mist-based systems often fail to penetrate deep cavities or narrow slots—common in greenhouse roof supports or HVAC ducting—leading to localized hot spots above 250°C. High-pressure through-tool coolant (70–100 bar) reduces interface temperature by 45–60°C and extends tool life by 2.3× compared to flood cooling alone, per GTIIN’s 2023 Thermal Performance Audit of 37 contract manufacturers.

However, coolant selection matters equally. Water-soluble emulsions with >85% oil content increase adhesion risk in high-speed passes. ISO 6743-7 compliant synthetic coolants (pH 8.8–9.2, viscosity 2.1–2.8 cSt at 40°C) show 31% lower BUE formation in trials across 6061 and 7075 alloys. Distributors specifying machining services should verify coolant type, concentration (typically 8–12% v/v), and filtration frequency (minimum 1x/shift for continuous operation).

Notably, 54% of premature insert failures in aluminum die-cast housings (e.g., for architectural lighting) were traced to coolant starvation during ramp-down cycles—underscoring the need for programmable coolant modulation synchronized with feed rate changes.

Tool Geometry & Coating Selection Criteria

Geometry dictates how force and heat distribute across the cutting edge. For aluminum, positive rake angles (≥ +12°) reduce cutting force by up to 35%, while variable helix designs (35°–45°) dampen chatter—critical when milling thin-walled greenhouse panels or extruded furniture frames. Polished flutes further minimize chip adhesion, increasing chip evacuation efficiency by 22% versus standard ground finishes.

Coatings add another layer of control. TiAlN offers excellent oxidation resistance but can promote galling in pure aluminum. ZrN and diamond-like carbon (DLC) coatings demonstrate superior anti-adhesion performance—extending tool life by 1.8× in high-volume architectural hardware production. GTIIN’s coating performance matrix ranks DLC as optimal for feeds ≥0.14 mm/tooth and speeds >16,000 RPM.

Procurement professionals evaluating tool vendors should request third-party lab reports verifying coating thickness (target: 2.0–2.5 µm for DLC), adhesion strength (>70 N Rockwell C), and thermal stability up to 600°C. These metrics directly influence consistency across multi-shift operations and long-run batches.

Actionable Procurement & Validation Framework

To mitigate unexpected wear, procurement and engineering teams should adopt a four-point validation protocol before approving any aluminum milling service or tooling package:

• Require documented parameter maps for each alloy grade and part geometry—not generic “aluminum” settings;
• Verify coolant delivery pressure and filtration capability (target: ≤5 µm particulate retention);
• Confirm tool certification includes coating adhesion testing and surface roughness verification (Ra ≤ 0.05 µm on flutes);
• Validate first-article inspection reports showing tool life tracking across ≥3 consecutive lots (min. 20 parts/lots).

GTIIN’s TradeVantage platform provides automated parameter compliance scoring for over 210 certified suppliers—enabling rapid benchmarking against industry medians. For distributors sourcing machined aluminum components, this reduces qualification time by an average of 11.5 days per new vendor.

Unexpected tool wear is rarely a tool failure—it is a process signal. By anchoring procurement decisions in empirically validated parameters—not anecdotal best practices—global trade stakeholders gain predictable output, reduced scrap rates, and stronger margin control across diverse aluminum-intensive sectors.

Access GTIIN’s live aluminum machining parameter database and supplier compliance dashboard today—request a customized benchmark report for your specific alloy, geometry, and volume profile.
