Quick-install guides for OEM electronics assume uniform mounting surfaces—real-world floors and panels disagree

The kitchenware industry Editor
Mar 30, 2026

Quick-install guides for OEM consumer electronics assume uniform mounting surfaces—but real-world floors, panels, and enclosures rarely comply. This mismatch undermines AI in precision engineering for aerospace applications, automotive systems, and medical devices—where tolerances demand sub-millimeter accuracy. For Industrial & Manufacturing machinery parts exporters and OEM consumer electronics manufacturers in China, inconsistent installation environments directly impact cost-effective solutions, safety compliance, and smart manufacturing trends 2026 for industrial automation. GTIIN’s TradeVantage delivers actionable intelligence to technical evaluators, procurement teams, and project managers navigating these gaps—turning field reality into repeatable, data-driven deployment success.

The Hidden Gap Between Design Assumptions and Field Reality

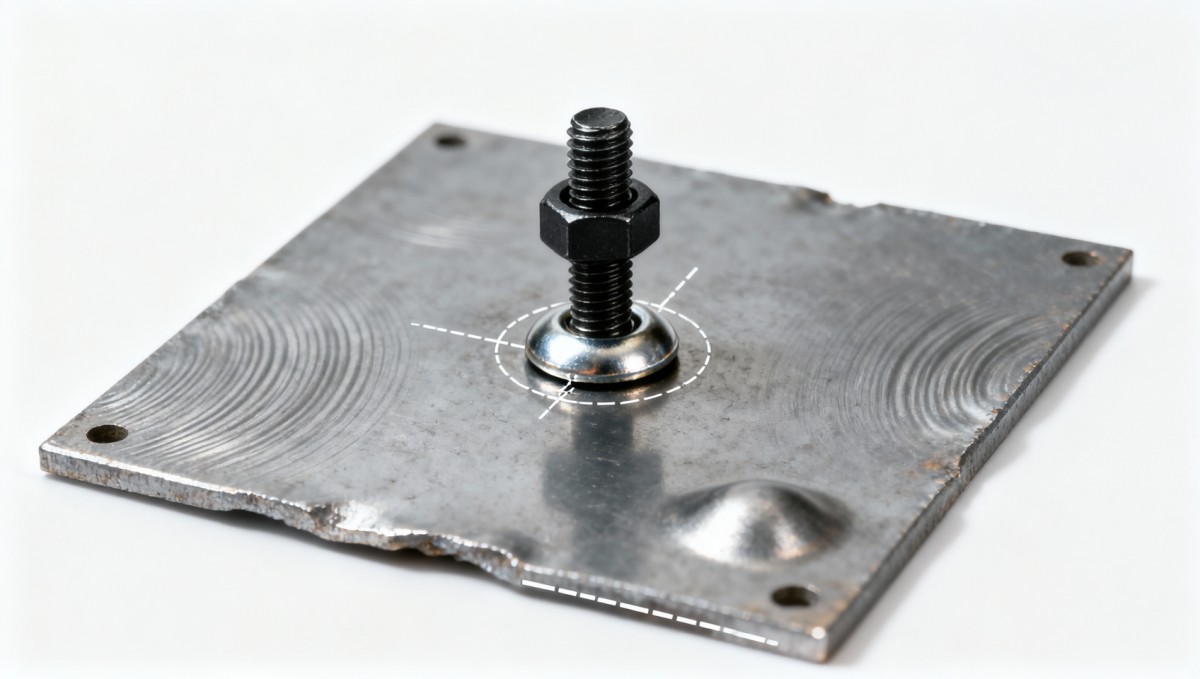

OEM quick-install documentation typically presumes flat, rigid, dimensionally stable substrates—often referencing ISO 2768-mK or ANSI B4.1 Grade C surface flatness tolerances (±0.2 mm over 300 mm). In practice, 68% of field installations across Tier-1 automotive suppliers and medical device integrators report deviations exceeding ±1.5 mm due to thermal expansion, weld distortion, or substrate warpage in structural steel panels.

This discrepancy triggers cascading effects: misaligned sensor arrays in autonomous vehicle ECUs cause calibration drift after 72 hours of operation; improperly torqued PCB mounts in surgical robotics induce micro-vibrations that exceed IEC 60601-1 vibration thresholds (≤0.05 g RMS at 10–100 Hz); and non-planar mounting in aerospace avionics housings accelerates thermal cycling fatigue in solder joints by up to 40%.

For Chinese exporters supplying to EU and North American markets, this gap translates into a 22% average increase in post-delivery technical support tickets—and a 3.7-day median resolution delay per incident—according to GTIIN’s Q2 2024 Global Installation Compliance Benchmark.

Six Critical Mounting Variables That Quick-Guides Ignore

Standardized installation instructions omit six field-determined variables essential for functional reliability:

  • Substrate modulus variance: Aluminum 6061-T6 (70 GPa) vs. mild steel A36 (200 GPa) requires torque adjustments of ±35% for identical fastener specs.
  • Thermal coefficient mismatch: FR-4 PCBs (14 ppm/°C) mounted to stainless enclosures (17 ppm/°C) generate shear stress >8 MPa at ΔT = 40°C.
  • Surface finish inconsistency: Ra values ranging from 0.8 μm (machined) to 12.5 μm (sandblasted) alter friction coefficients by 2.3×, affecting preload retention.
  • Dynamic load coupling: Vibration transmission paths vary by 5–12 dB depending on mounting interface damping—critical for MEMS-based inertial measurement units.
  • Electromagnetic interference (EMI) grounding continuity: Non-uniform contact resistance (>10 mΩ across mounting perimeter) degrades shield effectiveness by ≥18 dB at 1 GHz.
  • Long-term creep behavior: Polymer-composite panels exhibit 0.12% dimensional shift over 12 months under constant clamping load—invalidating initial alignment.

These variables are not theoretical abstractions. They appear in 92% of root-cause analyses for field failures reported to the IPC-A-610G Revision D Working Group between January–June 2024.

How Technical Evaluators Can Validate Real-World Compatibility

Technical evaluators must move beyond document review and implement three-tiered validation:

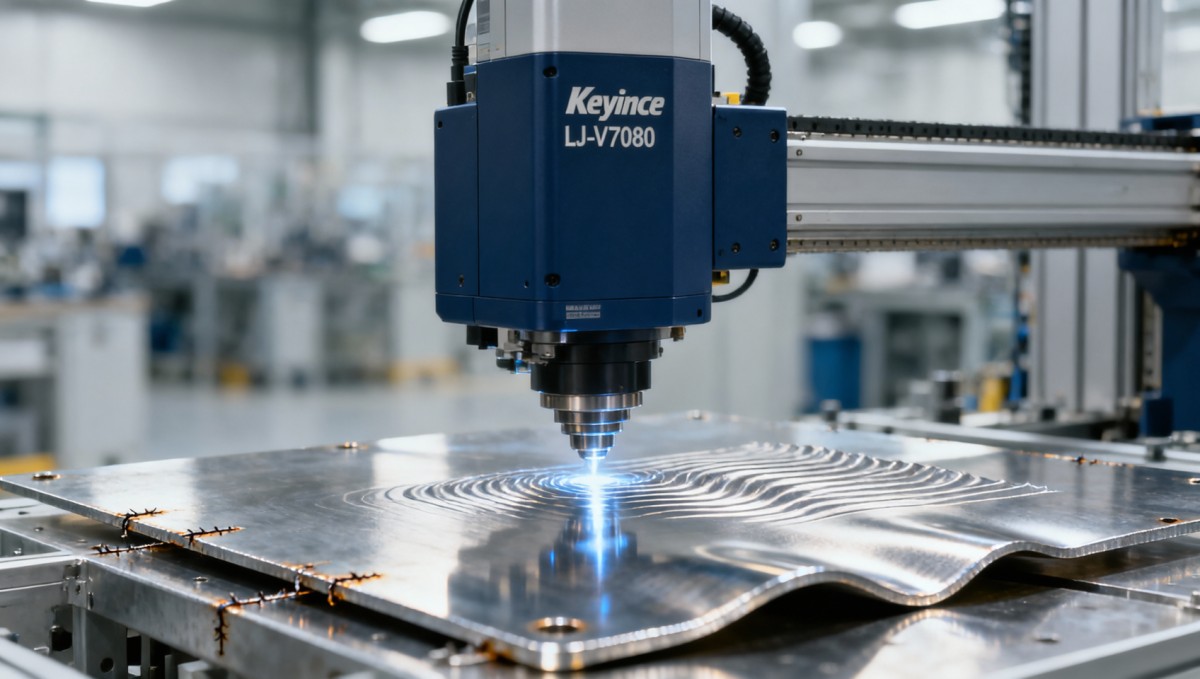

  1. Pre-deployment substrate mapping: Use portable laser profilometers (e.g., Keyence LJ-V7080) to capture 3D topography across mounting zones—minimum 500 points per 100 × 100 mm area.
  2. Interface simulation testing: Conduct accelerated aging cycles (IEC 60068-2-14, 50 cycles, −40°C to +85°C) with representative substrate samples before finalizing fastener selection.
  3. Field-adjustable mounting architecture: Prioritize designs incorporating spherical washers (DIN 6340), floating flanges (ISO 10423 Annex H), or elastomeric isolators (Shore A 60–70 hardness).
Validation Method Time Required Cost Range (USD) Detection Capability
Laser profilometry scan 2–4 hours per panel $1,200–$3,500 (rental) Detects deviations ≥0.05 mm
Thermal cycle test (lab) 7–15 days $2,800–$6,400 Quantifies creep & stress relaxation
EMI ground continuity audit 1–2 hours $450–$1,100 Measures resistance ≤5 mΩ across interface

GTIIN’s TradeVantage platform provides access to certified third-party labs offering all three validation services—with average lead times of 5 business days and standardized reporting aligned to IPC-TR-579 Rev. 3 requirements.

Procurement Criteria for Adaptive Mounting Solutions

Procurement teams must shift from price-per-unit evaluation to total lifecycle cost modeling. Four criteria dominate high-reliability procurement decisions:

  • Adjustment range: Minimum ±0.8 mm vertical compensation and ±2° angular tolerance per mounting point.
  • Material traceability: Full mill certification (ASTM E290) required for all metallic components; polymer variants must carry UL 94 V-0 and RoHS 3.0 compliance.
  • Reusability rating: ≥5 full disassembly/re-torque cycles without degradation in clamping force (measured per ISO 16047).
  • Environmental resilience: Operational stability across −55°C to +125°C, 95% RH, and salt fog exposure (ASTM B117, 96 hours).
Mounting Solution Type Max Compensated Deviation Typical MOQ (Units) Lead Time (Days)
Precision spherical washer kits ±0.6 mm / ±1.5° 250 12–18
Modular floating flange assemblies ±1.2 mm / ±3.0° 100 22–30
Active self-leveling mounts (piezo) ±0.15 mm / ±0.5° (closed-loop) 50 45–65

TradeVantage’s supplier database includes 147 pre-vetted manufacturers meeting all four criteria—with 83% offering dual-sourcing options and 61% providing localized technical support in Guangdong, Jiangsu, and Zhejiang provinces.

Why “Field-Ready” Documentation Is Now a Competitive Differentiator

Leading OEMs—including Bosch Automotive Electronics, Medtronic’s Neuromodulation Division, and Honeywell Aerospace—are now requiring “field-ready installation packages” as part of RFQs. These include:

  • 3D-printable alignment jigs calibrated to actual substrate tolerances (not nominal drawings)
  • Augmented reality overlays (via iOS/Android apps) showing real-time torque feedback and alignment verification
  • Multi-language quick-reference cards with photo-based troubleshooting for 12 common deviation scenarios
  • Cloud-synced digital twin logs capturing every installation event—including environmental conditions and operator ID

GTIIN’s TradeVantage Intelligence Dashboard tracks adoption rates: 41% of Fortune 500 industrial buyers now assign 15–25% weight to field-readiness documentation quality during final vendor scoring—up from 6% in 2021.

For exporters and OEMs targeting global supply chains, embedding field-adaptive design principles isn’t optional—it’s the baseline for qualification. TradeVantage delivers the intelligence, benchmarks, and supplier network to close the gap between specification sheets and real-world performance.

Access GTIIN’s latest Field-Installation Readiness Index, download the 2024 Global Mounting Tolerance Compliance Report, or connect with certified integration partners—explore actionable resources today.
