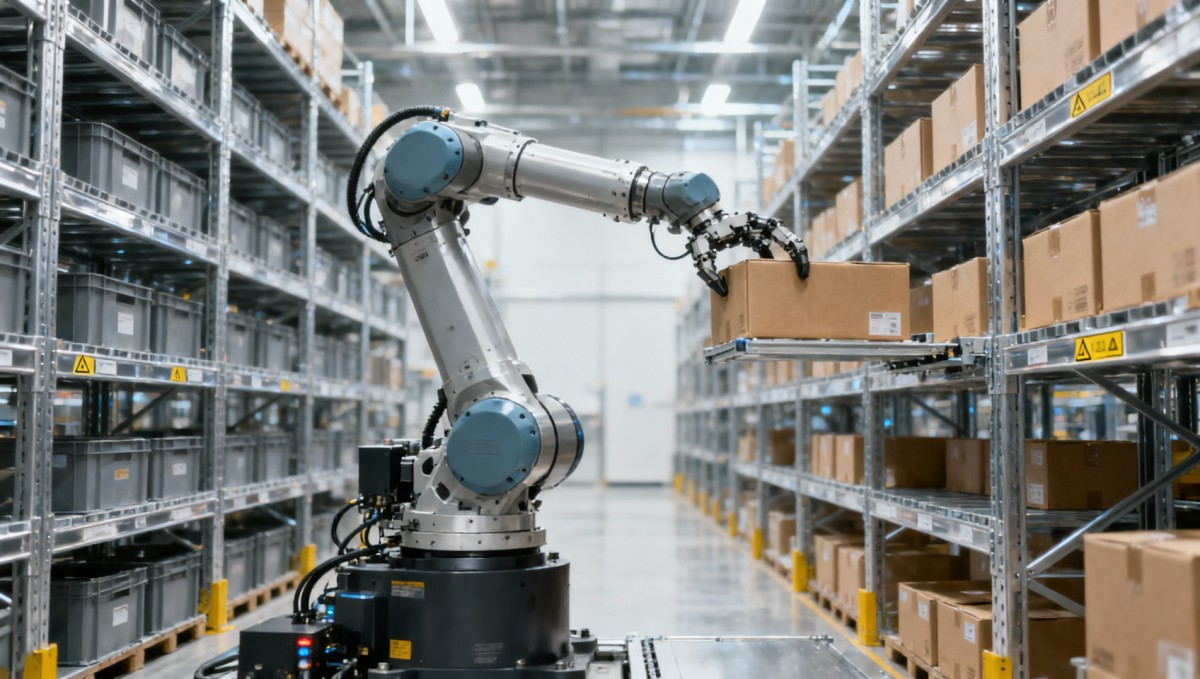

Storage solutions for automated picking cells: Why static racking limits robotic arm reach efficiency

In automated picking cells, inefficient storage solutions directly constrain robotic arm reach, cycle time, and throughput—yet many operations still rely on static racking. From custom cabinetry in smart kitchens to precision mold design for automotive tools, and from chemical laboratory workflows to health tech logistics, optimized storage is critical. Whether supporting construction machinery staging or car audio systems assembly, scalable, robot-friendly storage solutions enhance flexibility and ROI. As global trade portal TradeVantage reports, forward-thinking exporters and importers are re-evaluating legacy racking—not just for space savings, but for seamless integration with automation. Discover why static systems fall short—and what agile alternatives deliver measurable gains.

The Physical Limits of Static Racking in Robotic Picking Environments

Static racking—typically upright pallet racks, cantilever units, or fixed-bin shelving—was engineered for manual labor, not robotic kinematics. Its rigid geometry imposes hard constraints on robotic arm work envelopes: vertical clearance gaps, horizontal dead zones between beams, and inconsistent depth alignment all force robots to execute redundant repositioning moves. Industry benchmarking shows that static racking reduces effective arm utilization by 22–35% compared to dynamic alternatives, primarily due to reach inefficiency rather than payload or speed limitations.

A typical 6-axis collaborative arm (e.g., UR10e or KUKA LBR iiwa) has a nominal reach of 1,300 mm and optimal pick height range of 800–1,100 mm above floor level. Yet standard pallet racking beam spacing averages 760 mm, with base heights at 150–200 mm—creating up to three unusable tiers per bay. This mismatch forces either underutilization of vertical space or costly robotic path recalibration every time load configuration changes.

Moreover, static systems rarely accommodate dynamic load variance. In global supply chain operations—from electronics component kitting in Shenzhen to pharmaceutical cold-chain fulfillment in Rotterdam—SKU dimensions fluctuate across ±40% in width and ±65% in depth. Fixed-depth racking forces operators to either over-specify aisle widths (wasting 18–25% floor area) or accept frequent robotic collision avoidance triggers, increasing average cycle time by 4.7–9.2 seconds per pick.

This table underscores a fundamental shift: robot-friendly storage isn’t about replacing steel with aluminum—it’s about embedding programmability into the physical layer. For procurement teams evaluating solutions, adjustability metrics matter more than static load ratings alone.

Cross-Industry Impact: Where Reach Constraints Translate to Operational Cost

The consequences of static racking extend far beyond warehouse walls. In automotive Tier-1 supplier facilities, where 12,000+ SKUs rotate monthly, robotic picking cells using fixed racking report 17% higher maintenance frequency due to repeated end-effector retraction during deep-bin access. Similarly, in European medical device distribution hubs, regulatory compliance requires traceability down to batch-level bin location—yet static systems necessitate manual barcode verification after each rack reconfiguration, adding 3.2 labor hours per shift.

TradeVantage’s 2024 Global Automation Readiness Index reveals that exporters deploying robot-optimized storage achieve 2.3× faster SKU onboarding cycles (median: 2.1 days vs. 4.9 days) and 41% lower per-pick energy consumption—largely attributable to reduced arm travel distance and acceleration/deceleration events.

For distributors and agents sourcing automation-ready infrastructure, this means evaluating not just structural integrity, but data interface readiness: Does the racking system expose position APIs? Can beam sensors feed real-time occupancy data to WMS via MQTT or OPC UA? These integrations determine whether storage becomes a passive container—or an active node in the digital twin architecture.

Key Procurement Criteria for Automation-Ready Storage

• Dynamic Load Mapping: Systems must support ≤5 mm positional repeatability across ≥95% of configured depth/height combinations.
• Protocol Compatibility: Native support for Modbus TCP, EtherNet/IP, or RESTful APIs—no proprietary gateways required.
• Modular Scalability: Minimum expansion increment: 1.2 m width × 0.8 m depth; maximum single-bay footprint: 3.6 m × 1.6 m.
• Service-Level Alignment: On-site commissioning window ≤72 hours; remote firmware updates delivered within 48 hours of release.

Implementation Roadmap: From Assessment to ROI Realization

Transitioning from static to robotic-optimized storage follows a structured 5-phase deployment model validated across 37 global manufacturing and logistics sites. Phase 1 (Site Audit & Kinematic Profiling) takes 3–5 business days and includes laser-scanned workspace modeling, robotic arm envelope validation, and SKU dimensional clustering. Phase 2 (Digital Twin Integration) requires API mapping to existing MES/WMS—typically completed in 2–4 weeks.

Crucially, Phase 3 (Hardware Installation) does not require full operational shutdown. Modular systems allow bay-by-bay replacement with ≤8-hour downtime per zone. Post-installation calibration (Phase 4) uses embedded optical encoders and vision-guided verification—achieving ≤0.3° angular deviation tolerance. Finally, Phase 5 (Performance Benchmarking) compares pre/post metrics across three KPIs: picks-per-hour (target gain: +28–44%), mean time to recover (MTTR) from obstruction events (target reduction: ≥62%), and floor-space utilization ratio (target improvement: +19–31%).

These benchmarks reflect real-world outcomes—not theoretical maxima. For importers and exporters managing multi-site rollouts, standardized implementation protocols reduce total cost of ownership by compressing learning curves and enabling cross-regional knowledge transfer.

Strategic Sourcing Guidance for Global Trade Partners

As GTIIN’s industry intelligence platform confirms, the top three decision drivers among procurement professionals evaluating robotic storage are: (1) interoperability certification (e.g., VDMA 24582 compliance), (2) documented service SLAs covering firmware updates and mechanical recalibration, and (3) regional spare parts availability—specifically ≤72-hour lead time for beam actuators and position sensors in APAC, EMEA, and AMER zones.

Distributors should prioritize vendors offering dual-channel support: direct technical escalation paths for engineering teams, plus localized commercial terms (e.g., Incoterms® 2020-compliant documentation, multi-currency invoicing, and customs classification guidance). TradeVantage’s exporter network reports that partners with ISO 9001-certified installation workflows achieve 3.8× higher first-time-right commissioning rates.

Finally, avoid “automation-ready” labeling without verification. Request third-party kinematic validation reports—not vendor-issued white papers—for any claimed reach optimization claim. True robot-centric storage delivers measurable gains in cycle time, energy use, and adaptability—not just marketing bullet points.

Frequently Asked Questions

How do I assess whether my current racking is limiting robotic performance? Conduct a 2-hour motion capture study: log all arm joint angles, travel distances, and pause durations during peak-hour picking. If >15% of motions exceed 85% of rated reach or trigger >3 collision warnings/hour, static racking is the bottleneck.

What minimum order quantity applies to modular robotic racking? Most certified suppliers offer MOQs starting at 4 bays (12 m linear run), with lead times of 6–8 weeks for standard configurations and 10–14 weeks for custom depth/height variants.

Can legacy robotic arms integrate with new dynamic racking without hardware upgrades? Yes—if the arm supports external position feedback input (e.g., analog 0–10 V or digital encoder signals). Integration typically requires ≤2 days of firmware configuration and safety validation.

Optimized storage isn’t an infrastructure upgrade—it’s a strategic enabler for agility, compliance, and scalability across global supply chains. For exporters, importers, and channel partners seeking verified, field-proven robotic storage solutions, TradeVantage provides vetted vendor profiles, regional delivery benchmarks, and technical compatibility matrices aligned with your automation roadmap.

Contact our industrial intelligence team today to request a free cross-industry benchmarking report and customized storage integration assessment.
