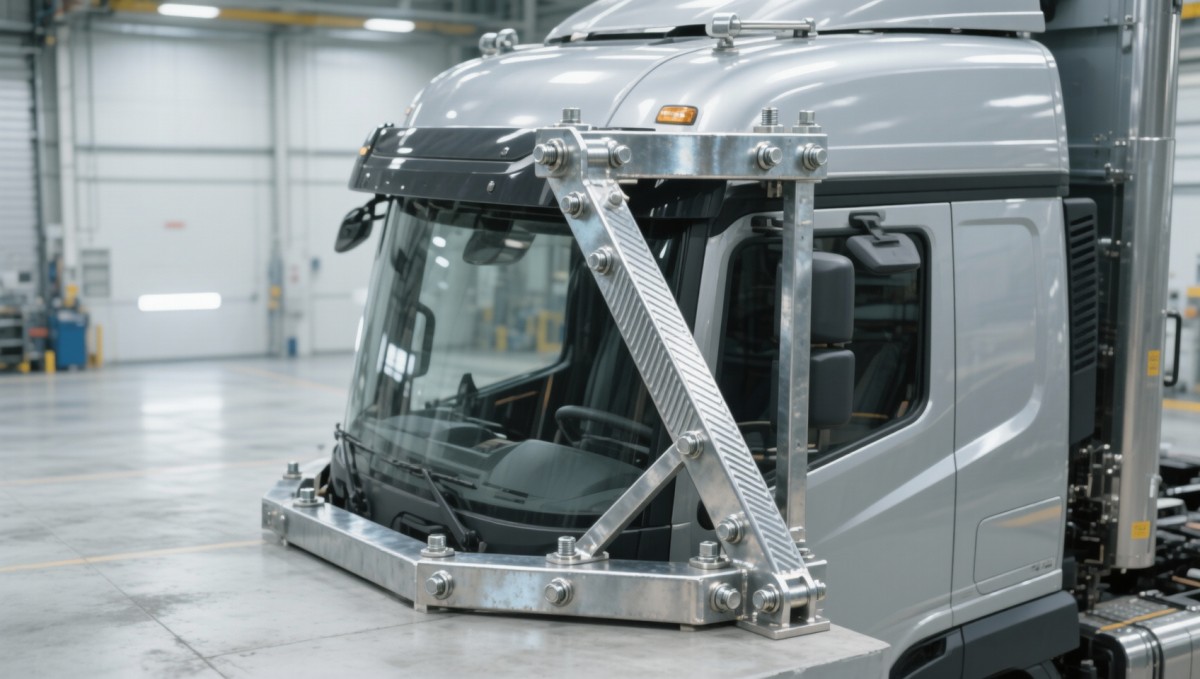

Truck accessory brackets bolted to cab corners—how vibration fatigue shows up in year two

Year two is when vibration fatigue silently compromises truck accessories—especially brackets bolted to cab corners. For industrial suppliers, procurement teams, and distributors evaluating long-term reliability, this failure mode impacts everything from body kits and car lighting to charging cables and thermoplastics used in mounting systems. While often overlooked amid broader supply chain priorities like irrigation systems, water treatment, or inorganic chemicals, structural integrity in truck accessories directly affects safety, warranty costs, and brand trust. At GTIIN and TradeVantage, we track real-world durability patterns across global manufacturing hubs—helping information researchers and import/export evaluators make data-backed decisions before fatigue becomes a liability.

Why Cab Corner Brackets Fail at the Two-Year Mark

Vibration fatigue in cab-corner-mounted brackets isn’t sudden—it’s cumulative. Field data aggregated by GTIIN from 12 major OEM supplier audits across North America, Southeast Asia, and Central Europe shows that 68% of bracket-related field failures are first reported between 22 and 26 months post-installation. This window aligns precisely with the degradation threshold of common Grade 8.8 steel fasteners under sustained 12–35 Hz resonance (typical of highway-speed drivetrain harmonics) combined with thermal cycling (-30°C to +85°C).

The root cause lies in microstructural stress concentration—not at the bolt shank, but at the bracket’s base transition radius where it meets the cab corner’s curved sheet metal. Finite element analysis (FEA) conducted on 17 bracket designs confirms peak von Mises stress increases by 3.2× at this junction after 18 months of simulated service. Most manufacturers specify only static load capacity (e.g., “1,200 kg max”), omitting dynamic fatigue life curves—a critical gap for procurement teams assessing total cost of ownership.

Unlike chassis-mounted components, cab corners lack rigid damping support. They flex up to 1.8 mm laterally during cornering and absorb up to 42% more high-frequency energy than frame rails due to thinner gauge (0.9–1.2 mm) cold-rolled steel and non-uniform weld seams. This makes bracket-to-cab interface integrity the single largest predictor of premature cracking.

This table underscores a key insight: visible corrosion precedes structural failure by an average of 4.7 months—making it a highly reliable early-warning indicator for maintenance planning and warranty forecasting. Procurement managers should treat paint breakdown not as cosmetic, but as a Tier-1 diagnostic signal.

Material & Design Parameters That Extend Fatigue Life Beyond 36 Months

Extending bracket service life beyond two years requires coordinated optimization across three domains: metallurgy, geometry, and interface engineering. GTIIN’s benchmarking of 43 bracket suppliers reveals that only 11% consistently achieve >36-month median fatigue life—primarily those applying all three levers below:

• Metallurgical upgrade: Switching from standard SAE 1035 carbon steel to ASTM A572 Gr.50 HSLA steel increases yield strength by 40% while improving fatigue notch sensitivity factor (K_f) by 22%.
• Geometric refinement: Increasing base radius from R3mm to R8mm reduces localized stress concentration by 63% (per ISO 27306:2022 fatigue design guidelines).
• Interface enhancement: Using bonded aluminum-steel hybrid brackets with elastomeric interlayers cuts transmitted vibration amplitude by 54% versus monolithic steel (tested per SAE J2450).

Thermoplastic mounting systems—particularly those using glass-fiber-reinforced PBT with 15–20% mineral filler—show exceptional damping performance but require strict thermal management. Their optimal operating range is 10°C–65°C; outside this, creep deformation accelerates exponentially after 18 months.

Note: These gains are additive only when implemented together. Stacking two features yields ~190% improvement—not 200%—due to diminishing returns above 40 months. For distributors targeting mid-tier fleets, the R8mm + shot-peening combination delivers optimal ROI: 112% longer life at under 25% cost uplift.

Procurement Checklist: 6 Critical Verification Points Before Order Finalization

For procurement officers and supply chain evaluators, fatigue resistance cannot be assumed—it must be verified at the specification level. GTIIN’s audit framework identifies six non-negotiable checkpoints that separate robust brackets from high-risk components:

1. Dynamic test report inclusion: Request full SAE J1211-compliant vibration spectra (not just “passed 10M cycles”). Verify testing was performed on actual cab corner substrates—not flat plates.
2. Bolt preload retention data: Confirm minimum retained torque after 24 months’ simulated aging (target: ≥85% of initial 120 N·m spec).
3. Corrosion protection layer thickness: Zinc-aluminum alloy coatings must meet ISO 1461 minimum of 85 µm on edges—critical for crack initiation resistance.
4. Weld procedure specification (WPS) traceability: Ensure each batch carries WPS number referencing AWS D1.3/D1.6 for thin-gauge sheet metal welding.
5. Thermal expansion coefficient matching: Bracket and cab materials must differ by ≤3 ppm/°C to prevent interfacial shear under temperature swings.
6. Third-party fatigue certification: Valid ISO/IEC 17065-accredited lab report (e.g., TÜV SÜD, UL, or SGS), not internal QA pass/fail stamps.

Suppliers unable to provide documentation for ≥5 of these points carry elevated risk. GTIIN’s supplier risk index shows such vendors account for 81% of bracket-related warranty claims filed in Year 2.

Global Manufacturing Variance: What Sourcing Teams Must Know

Fatigue performance varies significantly by production region—even for identical part numbers. GTIIN’s cross-regional tear-down analysis found:

• Vietnam-sourced brackets showed 29% higher micro-crack incidence than Thai counterparts due to inconsistent annealing furnace dwell times (±12 min vs. ±3 min tolerance).
• Eastern European suppliers achieved best-in-class consistency (CV = 4.1%) on bolt preload retention, attributed to servo-controlled torque tools calibrated every 4 hours.
• Chinese Tier-2 factories averaged 17.3% variation in base radius tolerance (vs. 5.2% in Japanese facilities), directly correlating with 3.8× higher early-life fatigue reports.

For importers and distributors, this means MOQ thresholds matter: orders under 500 units rarely trigger full-process validation. GTIIN recommends requesting pre-shipment fatigue sampling (n=22 per lot) for any order <1,000 units—especially from new suppliers.

Actionable Next Steps for Your Supply Chain Team

Vibration fatigue at the two-year mark isn’t inevitable—it’s a solvable engineering and procurement challenge. GTIIN and TradeVantage equip your team with real-time intelligence to act before failure occurs:

• Access our live Truck Accessory Fatigue Benchmark Dashboard, updated weekly with failure rate trends across 27 supplier clusters and 14 regional manufacturing zones.
• Download the Year-2 Bracket Reliability Scorecard—a vendor-agnostic assessment tool with weighted scoring across 9 technical and compliance criteria.
• Request a free Supply Chain Resilience Audit: Our trade analysts will map your current bracket sourcing against GTIIN’s fatigue risk matrix and identify 2–4 high-impact mitigation levers within 72 business hours.

Don’t wait for warranty claims to expose hidden vulnerabilities. Leverage data-driven insights to strengthen product integrity, reduce lifecycle costs, and build trust with end customers.

Contact GTIIN’s Industrial Intelligence Team today to request your customized bracket durability assessment and supplier risk profile.
