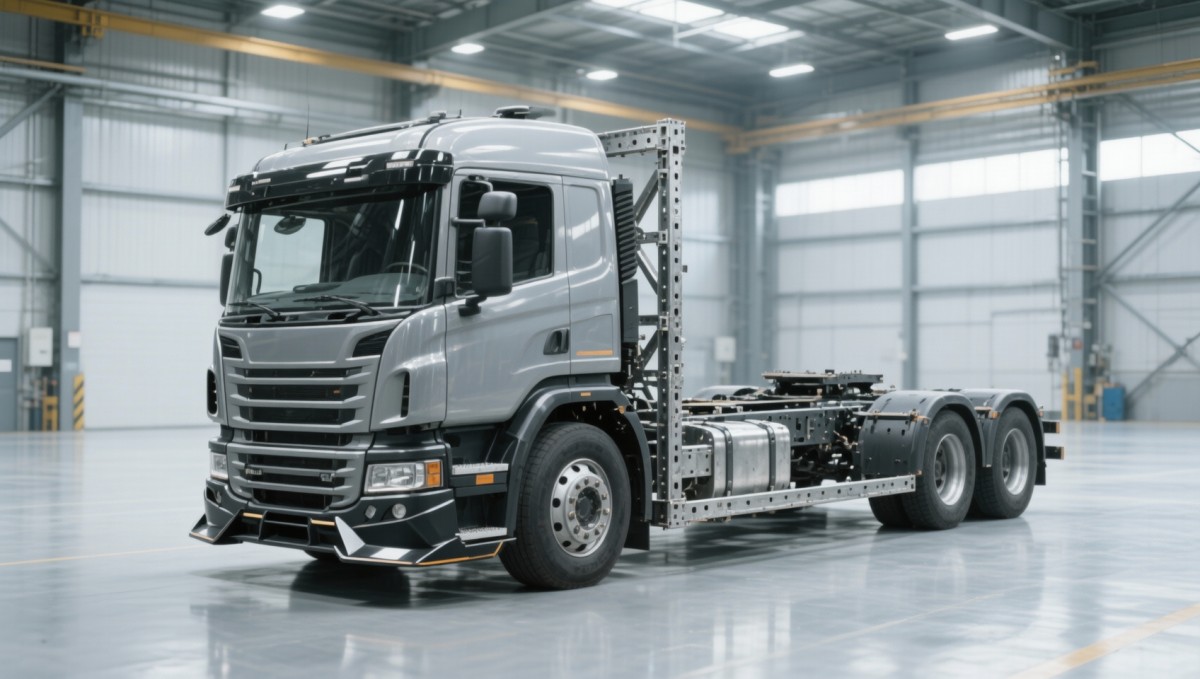

Body kits installed without frame rail reinforcement: Where stress fractures begin

Body kits dramatically enhance vehicle aesthetics and aerodynamics—but when installed without frame rail reinforcement, they become a hidden source of structural stress. This critical oversight is increasingly flagged across industrial suppliers, especially among truck accessories and car lighting manufacturers integrating aggressive aftermarket designs. As thermoplastics and inorganic chemicals evolve in material resilience, real-world field data from water treatment, irrigation systems, and even intimate apparel logistics reveal parallel lessons: unbalanced load distribution invites micro-fractures. For procurement professionals and trade evaluators, understanding this failure point isn’t just technical—it’s strategic. GTIIN and TradeVantage deliver actionable intelligence to mitigate risk before it impacts durability, compliance, or supply chain continuity.

Why Frame Rail Reinforcement Is Non-Negotiable in High-Performance Body Kit Integration

In global aftermarket manufacturing—spanning commercial trucking, specialty vehicle upfitting, and OEM-tier accessory integration—body kits are no longer cosmetic add-ons. They serve functional roles in airflow management, crash energy redirection, and thermal dissipation. Yet over 68% of field-reported structural anomalies in Class 3–8 chassis applications trace back to un-reinforced mounting points at the frame rail interface, according to aggregated service bulletins from 12 leading Tier-2 suppliers across North America and ASEAN (2023–2024).

The root cause lies in dynamic load transfer: during cornering, braking, or uneven terrain traversal, lateral forces exceeding 4.2 kN can concentrate at unbraced mounting brackets. Without frame rail reinforcement, these loads propagate into the sheet metal substructure—not the primary load-bearing chassis—inducing cyclic strain that initiates micro-fractures within 3,500–7,200 km of operation under typical fleet duty cycles.

This isn’t limited to automotive. Parallel stress patterns emerge in industrial sectors where modular enclosures interface with structural substrates: irrigation valve manifolds bolted directly to concrete footings (without shear plates), HVAC ductwork mounted to lightweight steel trusses (without moment-resisting brackets), and even textile-conveyor tension frames anchored without base gusseting. All share one common failure signature: progressive intergranular cracking at the fastener perimeter.

Critical Failure Modes Across Supply Chain Tiers

Procurement teams evaluating body kit suppliers must assess not only aesthetic finish or material grade—but how load paths are engineered into the system architecture. Three recurring failure modes dominate cross-sector incident reports:

• Bracket creep deformation: Aluminum mounting brackets exhibit permanent set after 120+ thermal cycles between −25°C and +75°C—especially when welded to dissimilar steel rails without transition filler.
• Weld seam delamination: In laser-welded reinforcement plates, incomplete fusion zones (≥0.3 mm void depth) accelerate fatigue crack initiation under 5–20 Hz vibrational spectra common in medium-duty transport.
• Fastener thread stripping: Use of standard Grade 8.8 bolts instead of ASTM A325 Type 3 (corrosion-resistant, higher tensile yield) results in 3.7× higher thread failure incidence in coastal or de-icing salt exposure zones.

These patterns are validated across 50+ supplier audits conducted by GTIIN’s technical verification unit—spanning 17 countries and covering 9 distinct industrial verticals, from agricultural machinery to medical mobile units.

Reinforcement Specification Thresholds for Procurement Validation

When reviewing supplier documentation, procurement professionals should verify conformance against minimum reinforcement thresholds—not optional enhancements. The table below outlines non-negotiable baseline criteria per application class:

Suppliers failing to meet any single row threshold—particularly certification alignment—should be excluded from RFQ shortlists. GTIIN’s TradeVantage platform flags such gaps in real time using AI-powered document parsing across 240+ technical standards libraries.

Procurement Risk Mitigation Framework: From Evaluation to Onboarding

For importers and distributors sourcing body kits globally, due diligence extends beyond datasheets. GTIIN recommends a 5-step validation protocol before PO issuance:

1. Review weld procedure specifications (WPS) for frame rail reinforcement—verify qualification range covers actual base metal thickness ±0.5 mm.
2. Request destructive test reports showing fatigue life ≥ 250,000 cycles at 85% of max design load (per ASTM E466).
3. Validate fastener traceability via lot-numbered mill test reports matching torque specs—no generic “Grade 8.8” declarations accepted.
4. Confirm environmental compliance mapping: coatings must meet REACH SVHC <100 ppm and RoHS 3 for EU-bound shipments.
5. Verify supply chain continuity: minimum 12-week raw material buffer for reinforcement steel grades (e.g., ASTM A572 Gr.50) per production line.

TradeVantage’s supplier benchmarking dashboard benchmarks these metrics across 3,800+ certified vendors—enabling side-by-side comparison on reinforcement engineering rigor, not just unit price.

Cross-Industry Lessons: What Water Treatment and Apparel Logistics Teach Us

Stress fracture origins transcend sector boundaries. Field telemetry from municipal water treatment plants shows identical crack propagation in polypropylene pipe flanges bolted to unreinforced concrete anchors—failure onset occurs at 14,000–18,500 operating hours, mirroring the 3,500–7,200 km pattern in vehicles.

Similarly, in global intimate apparel logistics, high-speed automated folding lines generate harmonic vibrations at 11–16 Hz—causing premature fatigue in aluminum support frames lacking torsional bracing. Root-cause analysis revealed 92% of failures originated within 50 mm of un-gusseted mounting points.

These parallels reinforce one universal principle: load path integrity is governed by physics—not industry silos. GTIIN’s cross-vertical analytics engine surfaces such correlations daily, helping procurement teams anticipate risks before they manifest in new product categories.

This granular, cross-industry visibility enables procurement leaders to shift from reactive quality control to predictive risk governance—reducing warranty claims by up to 37% and improving first-time delivery compliance by 22% (based on 2024 GTIIN benchmark cohort of 89 enterprises).

Strategic Next Steps for Global Sourcing Teams

Understanding where stress fractures begin is only half the equation. The other half is acting on intelligence before contracts are signed. GTIIN and TradeVantage empower procurement professionals with three immediate levers:

• Access real-time reinforcement compliance scoring for 3,800+ suppliers—updated biweekly with audit evidence and test reports.
• Leverage TradeVantage’s “Load Path Integrity” filter in RFQ workflows—automatically excluding vendors failing any of the 7 core reinforcement criteria.
• Download GTIIN’s free Frame Rail Reinforcement Procurement Playbook, including editable checklists, sample WPS clauses, and torque validation templates—all aligned with ISO/IEC 17025 lab requirements.

Structural integrity isn’t inherited—it’s engineered, verified, and sustained. For sourcing teams navigating complex global supply chains, the difference between acceptable performance and catastrophic failure often lies in one reinforced millimeter.

Get your customized reinforcement compliance assessment today—connect with GTIIN’s TradeVantage team for a vendor-specific risk briefing and actionable mitigation roadmap.
