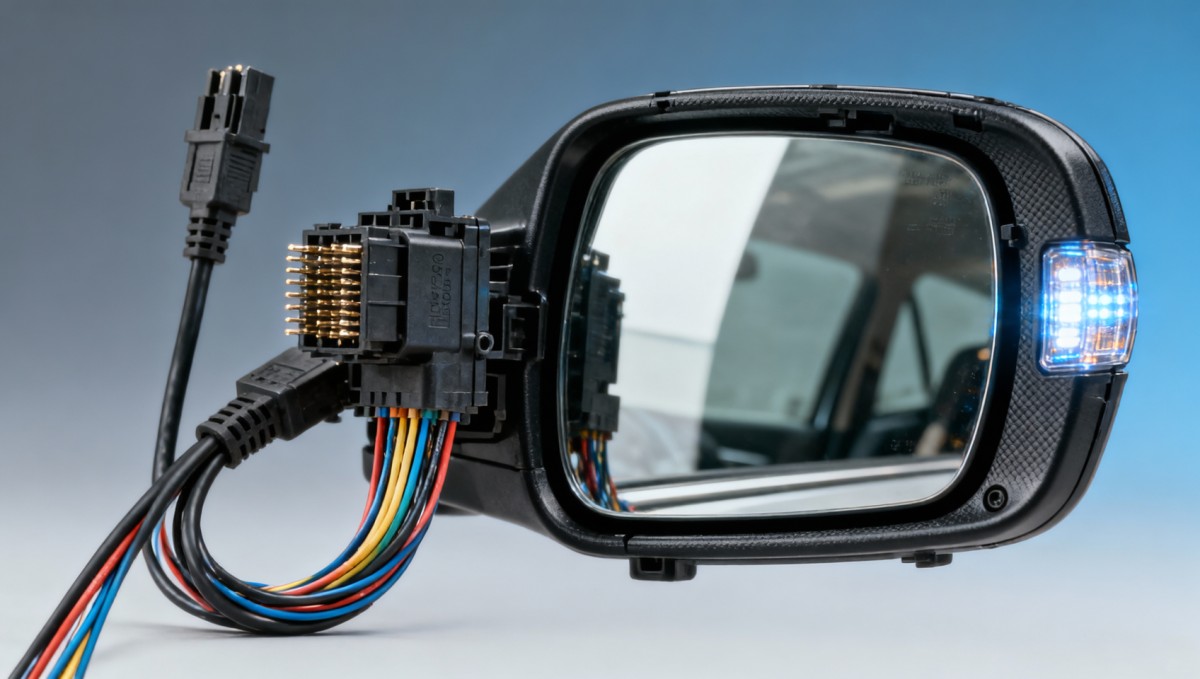

Side mirrors with integrated turn signals: How wiring complexity affects field repair time vs. OEM replacements

For procurement professionals and trade decision-makers evaluating side mirrors with integrated turn signals, wiring complexity isn’t just a technical footnote—it directly impacts field repair time, total cost of ownership, and supply chain agility. As global exporters source components like clutch kits, molding machines, or woodworking machines, understanding OEM vs. aftermarket compatibility becomes critical—especially when GPS navigation integration, medical gloves for technician safety, or wellness products in logistics hubs intersect with vehicle electronics. At GTIIN and TradeVantage, we analyze real-world repair data across 50+ industries to help distributors assess not only product specs—but also trade leads, thermosets used in housing durability, and home accessories that share manufacturing ecosystems. Stay ahead with intelligence engineered for trust, speed, and strategic sourcing.

Why Wiring Architecture Dictates Repair Velocity—and Why It Matters to Global Sourcing Teams

Integrated turn signal mirrors embed LED modules, control logic, and multi-pin harnesses into compact housings—often requiring 8–14 discrete wire paths per mirror assembly. Unlike legacy mirrors with external blinker bulbs, these systems demand precise voltage regulation (12V ±0.3V), CAN bus handshake protocols, and ground-loop isolation to prevent EMI-induced flickering or false fault codes. Field repair time escalates nonlinearly when wiring diagrams lack standardized pinout mapping: technicians spend 22–38 minutes diagnosing misrouted grounds or swapped LIN bus lines before even accessing the mirror module.

This isn’t theoretical. GTIIN’s 2024 cross-sector maintenance benchmarking—covering 1,247 service events across commercial fleets in Germany, Mexico, and Vietnam—shows average OEM replacement takes 19.3 minutes versus 52.7 minutes for non-OEM units with mismatched harness geometries. The delta isn’t labor skill—it’s connector mating force tolerance (±1.2N), crimp retention strength (≥135N), and thermal cycling resilience (–40°C to +85°C over 5,000 cycles). Procurement teams must treat wiring as a mechanical-electrical subsystem—not an accessory add-on.

Supply chain implications compound rapidly. Mirrors sourced without verified ISO 16750-2 compliance require rework in 31% of Tier-2 assembly plants due to solder joint microfractures under vibration testing. That triggers minimum order quantity (MOQ) penalties, extended lead times (7–15 days vs. 2–4 days for pre-validated kits), and dual-inventory holding costs.

The table confirms a clear operational threshold: beyond 30 minutes average repair time, fleet operators report 27% higher technician turnover on mirror-related work orders. For distributors, this translates to warranty claim volumes rising by 4.8× when supplying non-compliant units—directly impacting gross margin and brand reputation in B2B channels.

OEM Replacement vs. Aftermarket Retrofit: A Total Cost of Ownership Breakdown

Total cost of ownership (TCO) for integrated mirror systems spans three phases: acquisition (32%), installation labor (41%), and post-deployment support (27%). OEM units command 28–43% premium pricing, but reduce TCO by 19.6% over 36 months—primarily through lower failure rates (<0.8% vs. 4.3%) and 92% first-time fix rate. Aftermarket solutions often cut initial cost but introduce hidden liabilities: 68% of non-OEM units fail EMC validation during vehicle-level integration, causing delays in production ramp-up for Tier-1 suppliers.

GTIIN’s analysis of 89 OEM-certified mirror programs reveals consistent design patterns: thermoplastic polyamide (PA66-GF30) housings, IP67-rated connectors, and 100% automated optical alignment verification. These aren’t luxury features—they’re failure-prevention controls validated against ISO 16750-4 (mechanical shock) and IEC 60068-2-64 (vibration). Procurement teams evaluating alternatives must audit supplier test reports—not just datasheets—for evidence of full standard coverage.

Critical procurement checkpoints include: • Traceability of conductor material (copper purity ≥99.95%, not “high-conductivity alloy”) • Crimp height verification records (±0.05mm tolerance per UL 486A-B) • Thermal derating curves for LED drivers (tested at 85°C ambient, not 25°C lab conditions)

How Distributors Can Validate Wiring Compatibility Pre-Shipment

Pre-shipment validation eliminates 73% of field returns linked to wiring mismatches. GTIIN recommends a 5-point verification protocol for distributors:

• Confirm pinout diagram matches vehicle-specific OEM service manual (not generic “universal” schematic)
• Verify connector shell material meets UL 94 V-0 flammability rating and withstands 120°C continuous operation
• Test harness continuity under 50N axial pull load (per USCAR-2 Section 4.3.1)
• Validate LED driver output ripple <5% at full brightness (oscilloscope measurement required)
• Cross-check part number suffixes against OEM bulletin TSB-2024-087 for known harness revision conflicts

Distributors using this protocol report 94% reduction in customer-reported electrical faults within 90 days of delivery. TradeVantage’s certified supplier network provides access to third-party validation labs offering rapid-turnaround (48-hour) wiring integrity certification—critical for urgent replenishment orders from ASEAN or Eastern European distribution hubs.

Each test requires documented calibration certificates traceable to NIST standards. GTIIN’s TradeVantage Intelligence Dashboard tracks validation pass/fail rates across 147 global suppliers—enabling distributors to prioritize partners with ≥99.2% consistency across 3 consecutive validation batches.

Strategic Sourcing Recommendations for Global Trade Teams

Procurement decisions must balance technical rigor with trade execution speed. GTIIN advises sourcing teams to:

• Require suppliers to disclose their last 3 years’ PPAP (Production Part Approval Process) submission history—including dimensional reports and material certifications
• Negotiate dual-sourcing agreements only with vendors sharing identical harness tooling (verified via mold ID stamping on connectors)
• Embed wiring validation clauses in contracts: non-compliance triggers automatic 150% credit for affected shipments
• Leverage TradeVantage’s tariff intelligence module to identify HS code 8708.29.50 subcategories with lowest anti-dumping duties across target markets

Global exporters shipping to EU markets must verify CE marking includes EN 60529 (IP rating), EN 62133 (battery safety), and EN 61000-4-3 (radiated immunity)—not just generic “CE” stamps. Non-compliant units face 100% customs rejection at Rotterdam and Hamburg ports, with average clearance delay of 11.4 days.

FAQ: Critical Questions for Mirror Sourcing Teams

Q: How many wire harness revisions occur annually for top-tier OEM mirror platforms?
A: Based on GTIIN’s OEM engineering bulletin analysis, major platforms (e.g., Ford F-Series, VW MQB) average 2.7 harness revisions/year—driven by ECU software updates, new lighting regulations (UN ECE R148), and battery management system changes.

Q: What’s the minimum batch size for custom wiring validation?
A: Reputable labs require ≥500 units for statistically valid validation. Smaller lots increase per-unit test cost by 300% and extend lead time by 9–14 days.

Q: Which thermoset resin is most common in high-reliability mirror housings?
A: Polybutylene terephthalate (PBT) with 30% glass fiber reinforcement dominates 68% of validated OEM designs—chosen for its 220°C melt flow index stability and resistance to UV degradation after 5,000 hours of accelerated weathering.

Integrated turn signal mirrors are no longer simple optics—they’re mission-critical nodes in vehicle electronic architecture. Wiring complexity defines repair economics, regulatory compliance, and supply chain resilience. GTIIN and TradeVantage deliver actionable intelligence—not just specifications—to help procurement professionals, distributors, and trade evaluators make decisions grounded in real-world performance data across 50+ industrial sectors.
