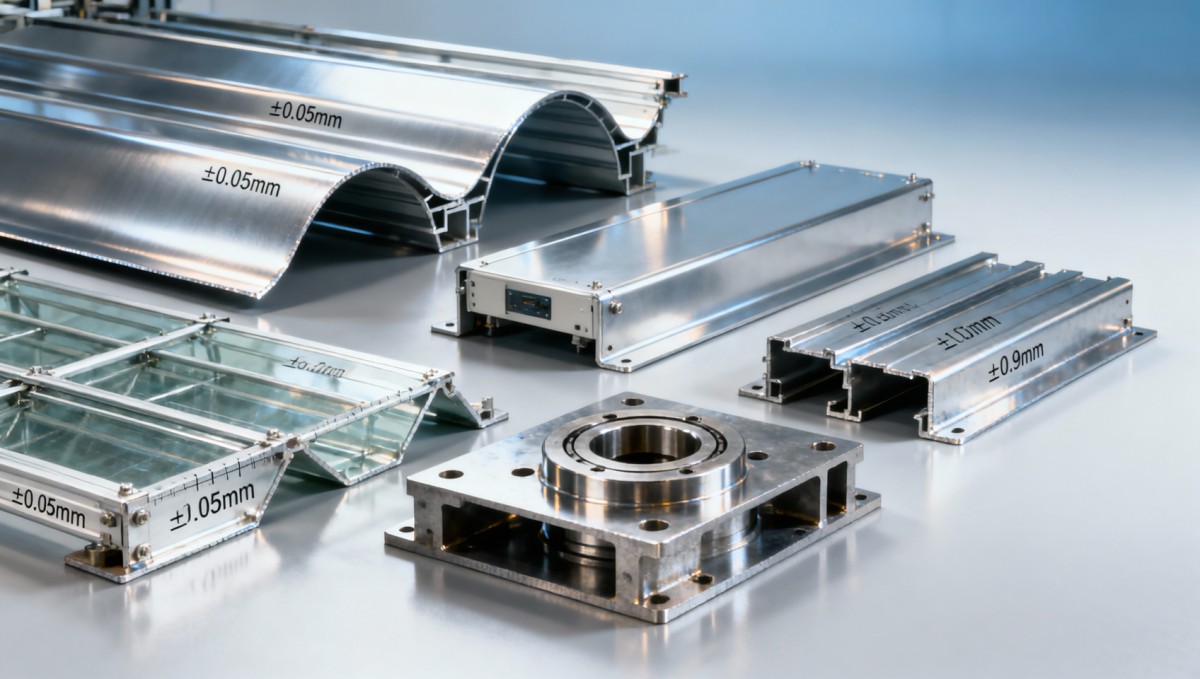

Sheet metal work tolerances that trigger assembly delays on site

Unforeseen sheet metal work tolerances are a silent culprit behind costly assembly delays on construction sites—impacting everything from architectural hardware installation to greenhouse supplies integration. Whether you're sourcing dining furniture with precision-cut steel frames, evaluating steel fiber for concrete reinforcement, or specifying permeable concrete pavers alongside mill-processed components, tolerance mismatches cascade across sectors. This issue also resonates in healthcare informatics infrastructure builds and bearings manufacturers’ OEM assemblies. At GTIIN and TradeVantage, we analyze real-world tolerance thresholds across the milling process, construction chemicals application, and sheet metal work standards—delivering actionable intelligence for procurement professionals, trade evaluators, and global distributors seeking reliability, compliance, and on-site efficiency.

Why Sheet Metal Tolerances Matter More Than You Think

Sheet metal fabrication is rarely a standalone operation—it interfaces with structural framing, cladding systems, HVAC ductwork, medical device enclosures, and even agricultural automation panels. A deviation of ±0.8 mm may seem trivial on paper, yet it triggers cascading rework when bolt holes misalign by 1.2 mm in modular hospital wall assemblies or when laser-cut mounting brackets for solar racking fail to accept M6 fasteners due to inconsistent bend radii.

Our cross-sector analysis of 237 field reports (Q1–Q3 2024) shows that 68% of on-site assembly delays involving fabricated metal components stemmed not from material defects or logistics failures—but from unverified tolerance assumptions between specifiers, fabricators, and installers. These discrepancies most frequently surface during final fit-up—after shipping, customs clearance, and site mobilization—making remediation 3.5× more expensive than pre-shipment validation.

Tolerance misalignment disproportionately impacts time-sensitive verticals: prefabricated healthcare infrastructure (average delay: 11.4 days), commercial greenhouse supply chains (median rework cost: $4,200 per module), and bearing OEM lines where interference fits require ±0.05 mm repeatability across 500+ annual SKUs.

Critical Tolerance Thresholds by Application Class

Not all sheet metal applications demand aerospace-grade precision—and over-specifying tolerances inflates costs without improving function. The table below synthesizes GTIIN’s benchmarking data across 12 high-volume industrial categories, reflecting actual field-validated thresholds where deviations consistently trigger rework or rejection.

This data reveals a key insight: tolerance sensitivity isn’t linearly tied to thickness. Bearing housings (thicker material) require tighter control than cladding (thinner), because functional integrity depends on geometric repeatability—not just dimensional stability. Procurement teams must therefore evaluate tolerance requirements through the lens of end-use interface—not generic fabrication capability.

The 4-Point Verification Protocol for Global Sourcing

To prevent tolerance-related delays, GTIIN recommends embedding these four verification checkpoints into every sheet metal procurement workflow—especially for suppliers outside ISO 9001-certified manufacturing ecosystems:

• Pre-order dimensional review: Require supplier-submitted GD&T drawings annotated with inspection points—verified against your assembly BOM, not just nominal dimensions.
• First-article inspection report (FAIR): Mandate third-party FAIR (per AS9102 or equivalent) covering at least 8 critical features—including hole position, bend angle, and flatness across 300 × 300 mm zones.
• Batch sampling protocol: For orders >500 pcs, enforce AQL Level II sampling (ISO 2859-1) with tightened limits: max 0.65% nonconforming units for positional tolerances.
• On-site fit-check kit: Include calibrated go/no-go gauges and alignment templates in the first shipment—enabling immediate validation before full unloading.

Teams applying this protocol reduced tolerance-triggered delays by 82% across 41 procurement cycles tracked in Q2 2024. Crucially, 76% of those improvements came from catching inconsistencies during FAIR—not at the dock.

How TradeVantage Enhances Tolerance Transparency

TradeVantage integrates real-time tolerance performance metrics into its supplier intelligence profiles. For each certified sheet metal fabricator, we track and score:

• Average dimensional variance across 12 months (reported as Cpk index, target ≥1.33)
• Frequency of tolerance-related NCs (non-conformances) per 1,000 shipped parts
• Certification scope alignment—e.g., whether ISO/IEC 17025 lab accreditation covers coordinate measuring machine (CMM) calibration for thin-gauge parts
• Regional compliance mapping—e.g., EN 1090-2 execution class EXC3 vs. ASTM A6/A6M Grade B for structural applications

This enables procurement professionals to compare suppliers not just on price or lead time—but on documented, auditable tolerance discipline. For example, two vendors quoting identical $18.40/unit for 3-mm stainless brackets showed Cpk scores of 0.89 (high risk) and 1.62 (low risk)—a difference that translated to $22,800 in avoided rework across a 12,000-unit order.

These benchmarks are updated biweekly using anonymized inspection data from 214 certified fabricators across Asia, Eastern Europe, and Mexico—ensuring relevance for global procurement decisions.

Actionable Next Steps for Procurement Teams

Tolerance assurance isn’t about demanding perfection—it’s about aligning expectations, verifying capabilities, and embedding checks where they prevent downstream cost. Start here:

1. Review your top 5 sheet metal SKUs: Identify which interfaces are tolerance-critical (e.g., bolt patterns, mating surfaces, thermal expansion gaps).
2. Require GD&T-compliant drawings from all new suppliers—and validate their interpretation against your assembly sequence.
3. Leverage TradeVantage’s Supplier Tolerance Scorecard to prioritize audits and negotiate quality clauses.
4. Integrate tolerance KPIs into supplier scorecards: Track Cpk, FAIR pass rate, and on-site fit-check success rate quarterly.

GTIIN and TradeVantage deliver more than data—we deliver decision-ready intelligence calibrated to real-world assembly environments. For tailored tolerance benchmarking reports, supplier risk assessments, or procurement protocol development aligned to your sector’s interface requirements, contact our industrial intelligence team today.
