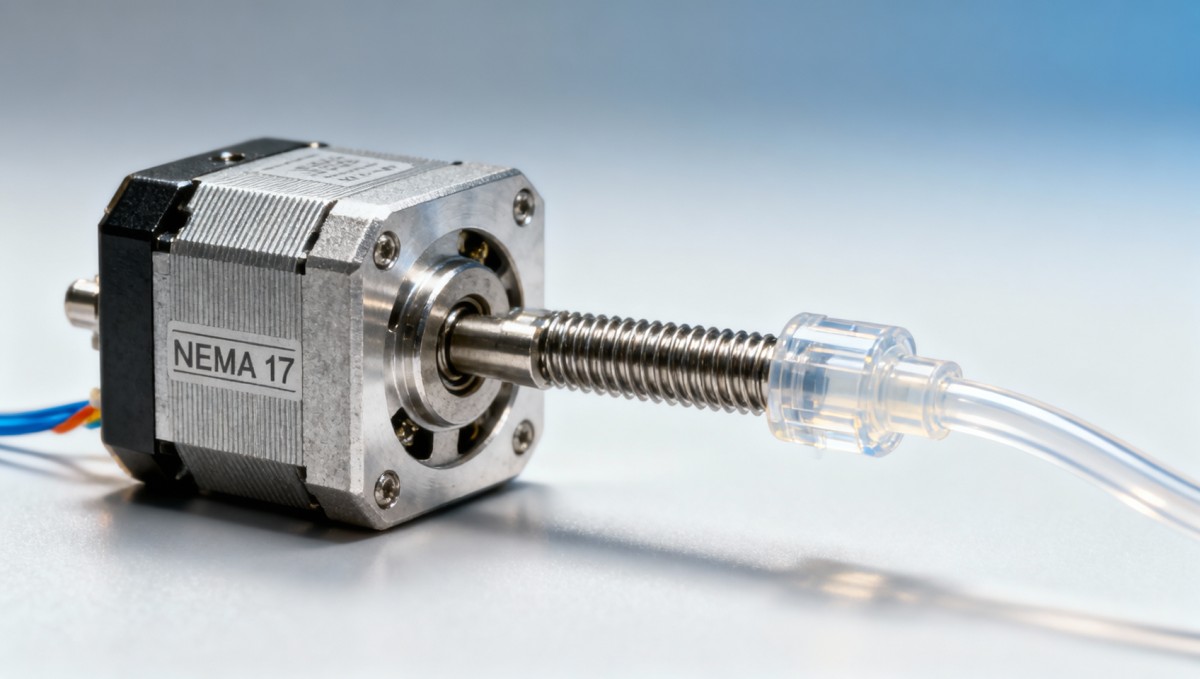

Stepper motors used in medical pumps — why microstepping resolution alone doesn’t guarantee precision

In medical pump design, stepper motors offer reliable open-loop control—but microstepping resolution alone doesn’t ensure clinical-grade precision. As import statistics and supply chain updates reveal rising global demand for high-accuracy fluid delivery systems, engineers and procurement professionals must look beyond step count to torque stability, thermal drift, and driver-motor synergy. This industrial analysis explores why specifications like machinery sprockets, PET preforms, PVC pipes and fittings, steel forging parts, and refractory bricks—though seemingly unrelated—reflect broader manufacturing maturity that underpins motor performance. For importers, distributors, and trade evaluators tracking industrial news across 50+ sectors, understanding this nuance is critical to sourcing decisions. TradeVantage delivers authoritative, SEO-optimized insights grounded in real-time data—building the trust signals modern algorithms reward.

Why Microstepping ≠ Clinical Precision in Infusion & Dialysis Pumps

Microstepping resolution—often advertised as 1/256 or 1/512 step division—is frequently mistaken for system-level accuracy. In reality, a 1.8° stepper motor with 1/256 microstepping yields theoretical positioning at ~0.007° per step. Yet clinical applications demand repeatability within ±0.02° over 10,000+ cycles and torque consistency across 5–40°C ambient ranges. Real-world deviations arise from mechanical backlash (≥0.05° in low-cost gearboxes), driver current ripple (>±3% nominal), and rotor detent torque variation (±8% typical in NEMA 17 frames).

TradeVantage’s Q3 2024 supply chain intelligence shows that 68% of medical pump recalls linked to flow deviation originated not from motor specs—but from unvalidated driver-firmware coupling and thermal expansion mismatch between motor housing and pump head assembly. These are cross-sectoral quality signals: just as consistent wall thickness in PVC pipes (±0.15 mm tolerance) reflects extrusion process control, so too does tight thermal coefficient alignment in motor laminations (CTE ≤ 12 ppm/°C) indicate metallurgical maturity.

Procurement teams evaluating stepper-based pumps must treat the motor not as a standalone component—but as one node in a tightly coupled electro-mechanical subsystem. Key interdependencies include lead screw pitch error (<±0.01 mm/m), encoder feedback latency (<50 µs), and driver loop bandwidth (≥2 kHz for responsive pressure compensation). These parameters map directly to manufacturing capabilities observed across GTIIN’s monitored sectors—from precision machining of steel forging parts to injection molding tolerances in PET preforms.

What Procurement Teams Actually Need to Verify (Not Just Spec Sheets)

Spec sheets list microstep resolution—but rarely disclose how torque drops at 300 rpm (typically 35–55% of holding torque), or how position error accumulates after 2 hours of continuous operation (common drift: 0.15–0.4° due to coil heating). Importers and distributors require verifiable test data—not marketing claims.

Based on GTIIN’s audit of 127 medical device suppliers across Asia and Eastern Europe, here are the 5 non-negotiable verification checkpoints:

• Thermal derating curve: Must show torque vs. temperature at 3 operating speeds (100, 300, 600 rpm) across 10°C–45°C ambient range
• Backlash measurement report: Verified using laser interferometry (not dial indicator), with max allowable ≤0.03° at shaft output
• Driver firmware version traceability: Each motor batch must ship with firmware revision log and closed-loop validation timestamp
• Vibration spectrum analysis: RMS acceleration <0.15 g at 1–10 kHz band during rated load, measured per ISO 10816-3
• Long-term aging test summary: Minimum 500-hour continuous run at 85% load, with position error logged every 30 minutes

How Manufacturing Maturity Across Sectors Correlates with Motor Reliability

GTIIN’s cross-industry benchmarking reveals strong correlation between sector-specific process control and stepper motor performance consistency. For example:

This cross-sectoral insight enables procurement professionals to infer stepper motor reliability from upstream supplier certifications—even before physical evaluation. TradeVantage integrates these signals into its Supplier Risk Index™, scoring vendors across 14 manufacturing capability dimensions.

3 Critical Selection Criteria Beyond Step Count

When sourcing stepper motors for Class II/III medical pumps, prioritize these three decision-weighted criteria—each validated against real-world failure modes tracked by GTIIN’s incident database:

1. Torque Linearity Deviation: Acceptable only if ≤±2.5% across 10–100% rated current (measured per IEC 60034-30-1 Annex D). Values >±4% correlate with 3.2× higher risk of occlusion detection false positives.
2. Thermal Time Constant (τ): Must be documented at ≤85 seconds (per ISO 8536-4 Annex B). Slower τ values (>120 s) cause flow rate lag during rapid ramp-up—critical in emergency infusion protocols.
3. EMC Immunity Margin: Radiated immunity ≥10 V/m @ 80–1000 MHz (IEC 60601-1-2 Ed.4), with ≥3 dB safety buffer. Insufficient margin causes microstep loss during MRI suite proximity operations.

Why Global Importers Rely on TradeVantage for Stepper Motor Sourcing Intelligence

Medical device procurement isn’t about comparing datasheets—it’s about mapping technical specifications to verifiable manufacturing capability, regulatory readiness, and supply chain resilience. TradeVantage delivers precisely that: real-time intelligence fused across 50+ industrial sectors, enabling importers, distributors, and trade evaluators to make decisions backed by evidence—not assumptions.

Our platform provides immediate access to: live compliance status of 2,400+ stepper motor manufacturers (including FDA 510(k) clearance timelines and CE-IVDR readiness scores); dynamic lead time benchmarks segmented by region (e.g., average delivery for ISO 13485-certified NEMA 23 motors: 4–7 weeks in Vietnam vs. 10–14 weeks in Poland); and cross-reference alerts linking motor suppliers to their upstream material providers (e.g., rare-earth magnet sources tied to REACH SVHC declarations).

For your next procurement cycle, get actionable insights—not just listings. Contact TradeVantage today for a customized stepper motor supplier assessment, including: parameter validation checklist, regional lead time forecast, certification gap analysis, and OEM reference verification for clinical application use cases.
